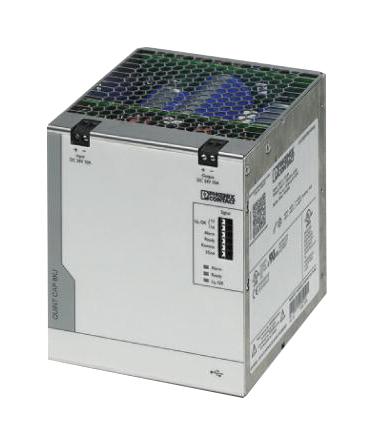

QUINT4-CAP/24DC/10/8KJ is a capacity module with maintenance-free energy storage based on double-layer capacitor, DIN rail mounting. The maintenance-free QUINT CAP capacity module is ideal for cyclical failures lasting up to 30 seconds. It combines an electronic switch-over unit and maintenance-free, capacitor-based energy storage in the same housing. The USB interface makes it convenient to shut down your PC. Approved by UL/C-UL Listed UL 508, UL/C-UL, UL 60950-1, UL ANSI/ISA-12.12.01 class I, division 2, groups A, B, C, D (hazardous location), CAN/CSA-C22.2 No. 107.1-01, UL 60950-1.
- Input voltage is 24VDC (SELV), output voltage is 22VDC (depending on the input voltage)
- Output power is 240W, nominal output current is 10A
- Efficiency is > 97% (with charged energy storage device)
- Convenient shutdown of PCs, maintenance-free with a long service life
- Degree of protection is IP20, space savings(compact design), long buffer time( high memory capacity)
- Lockable USB interface for connecting to industrial PCs
- Metal housing material
- Screw input and output connection
- Operating ambient temperature -25°C to 60°C (> 40°C derating 1 %/K)
- Dimension is (W x H x D) 118 x 130 x 125mm
Product details
| Power Supply Applications:
ITE
|
| Input Voltage DC:
24V
|
| Backup Time @ Capacity:
-
|
| Output Voltage:
24VDC
|
| Power Supply Mounting:
DIN Rail
|
| Product Range:
QUINT CAP Series
|
Other details
| Brand |
PHOENIX CONTACT |
| Part Number |
2320571 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
