Description

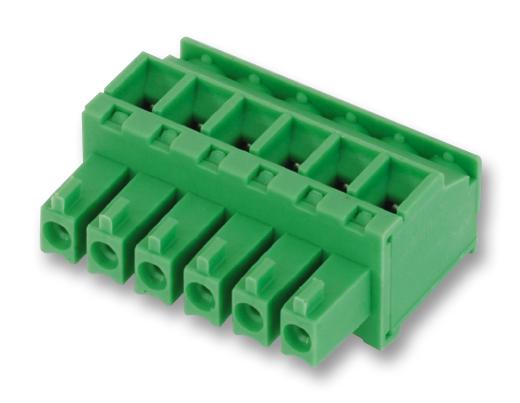

The 1827169 is a 6-position green pluggable PCB Terminal Block with tin-plated solder contacts, a polyamide insulator and the M2 screw connection. This MCVR 1,5/ 6-ST-3,81 terminal block has fully developed contact geometries and surfaces. It accepts 28 to 16AWG wire range.
- Generously dimensioned wiring space
- Plug-in direction vertical to the conductor axis
- Compact dimensions of the MCV 1,5 plug range
- 7mm Stripping length
- A1 Internal cylindrical gage
- UL94V-0 Flammability rating
Applications
Industrial
Product details
| Pitch Spacing: 3.81mm |
| No. of Positions: 6Ways |
| Wire Size (AWG): 28AWG to 16AWG |
| Conductor Area CSA: 1.5mm² |
| Wire Connection Method: Screw |
| Rated Current: 8A |
| Rated Voltage: 160V |
| Product Range: MCVR |
Other details
| Brand | PHOENIX CONTACT |
| Part Number | 1827169 |
| Quantity | Each |
| Technical Data Sheet EN |  |
