Description

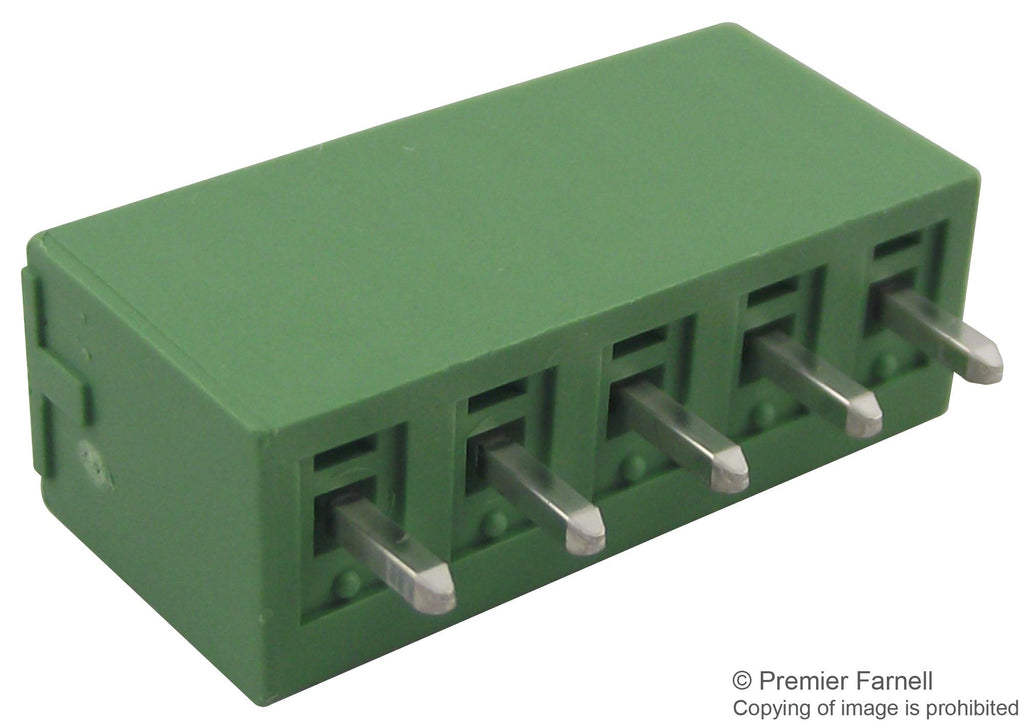

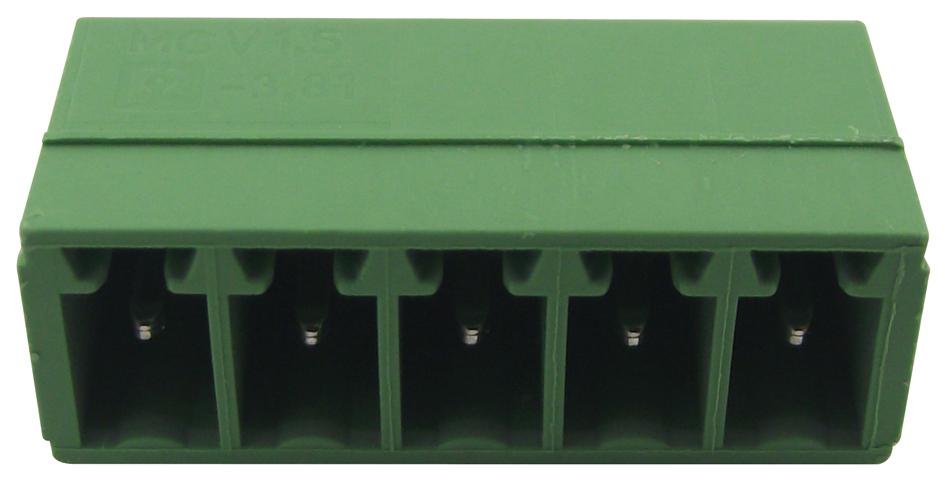

The 1803455 is a 5-position 3.81mm 1-level Base Strip Header with PBT insulator and green colour. Suitable for the wave soldering processes. Through hole vertical block orientation and soldering mounting, plug-in direction vertical to the PCB.
- UL94V-0 Flammability rating
- Low-profile pin strips with compact pitches
- Individual position coding by inserting coding profiles
Applications
Industrial
Product details
| Gender: Header |
| Pitch Spacing: 3.81mm |
| No. of Positions: 5Ways |
| Rated Current: 8A |
| Rated Voltage: 160V |
| Block Orientation: Through Hole Vertical |
| Product Range: MCV |
Other details
| Brand | PHOENIX CONTACT |
| Part Number | 1803455 |
| Quantity | Each |
| Technical Data Sheet EN |  |
