Description

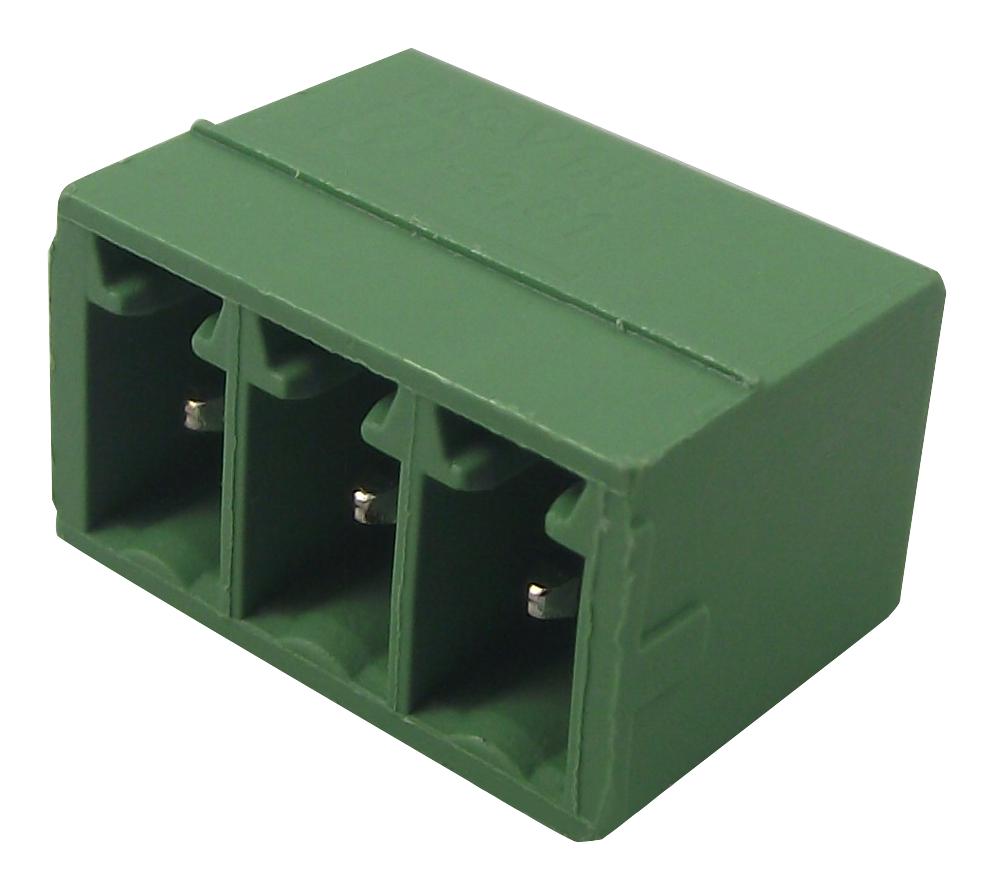

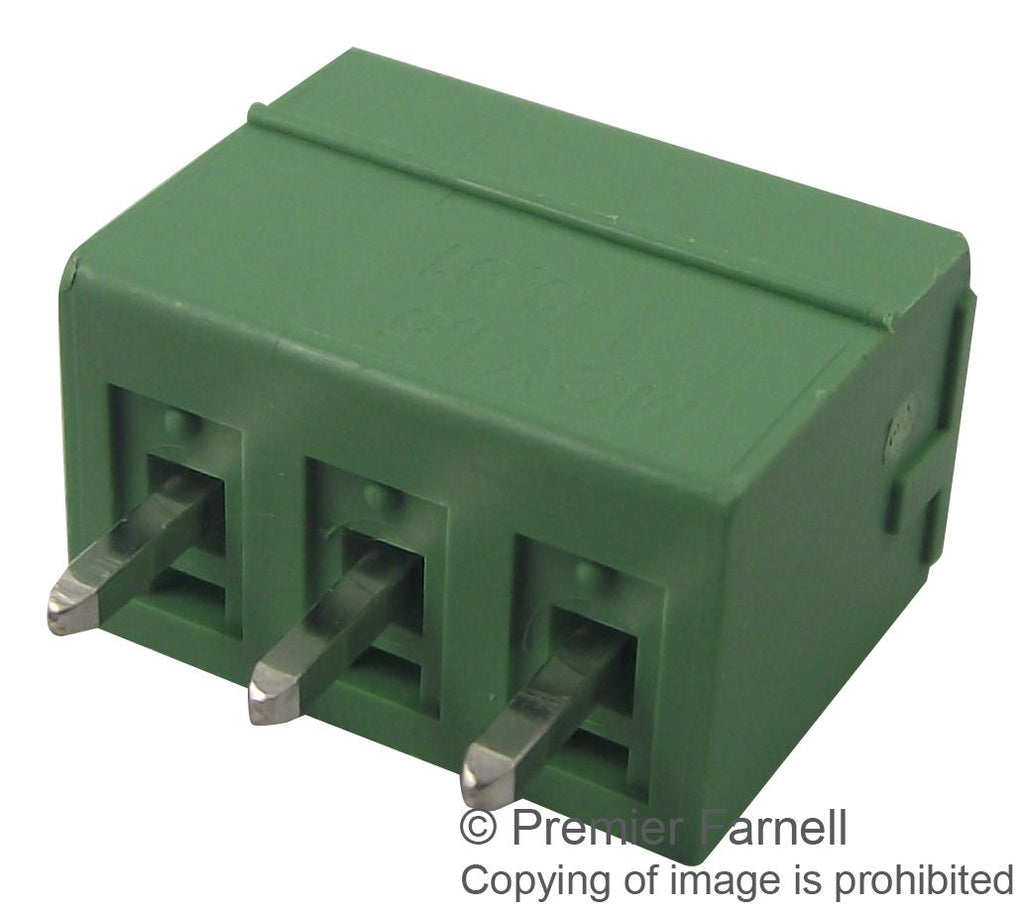

The 1803439 from Phoenix Contact is a through hole, 3 position terminal block header with 3.81mm pitch spacing.
- Green colour insulation
- Polybutylene terephthalate (PBT) insulation material
- Tin contact surface
- Header dimensions is 7.25mm x 12.82mm x 12.6mm (L x W x H)
- Hole diameter is 1.2mm
- Plug-in direction is vertical to the PCB
- UL94 V-0 flammability rating
- CSA, VDE, IECEE CB, CCA, EAC and cULus recognized
- Low profile pin strips with compact pitches
- Individual position coding by inserting coding profiles
Applications
Industrial
Product details
| Gender: Header |
| Pitch Spacing: 3.81mm |
| No. of Positions: 3Ways |
| Rated Current: 8A |
| Rated Voltage: 160V |
| Block Orientation: Through Hole Vertical |
| Product Range: MCV |
Other details
| Brand | PHOENIX CONTACT |
| Part Number | 1803439 |
| Quantity | Each |
| Technical Data Sheet EN |  |
