Description

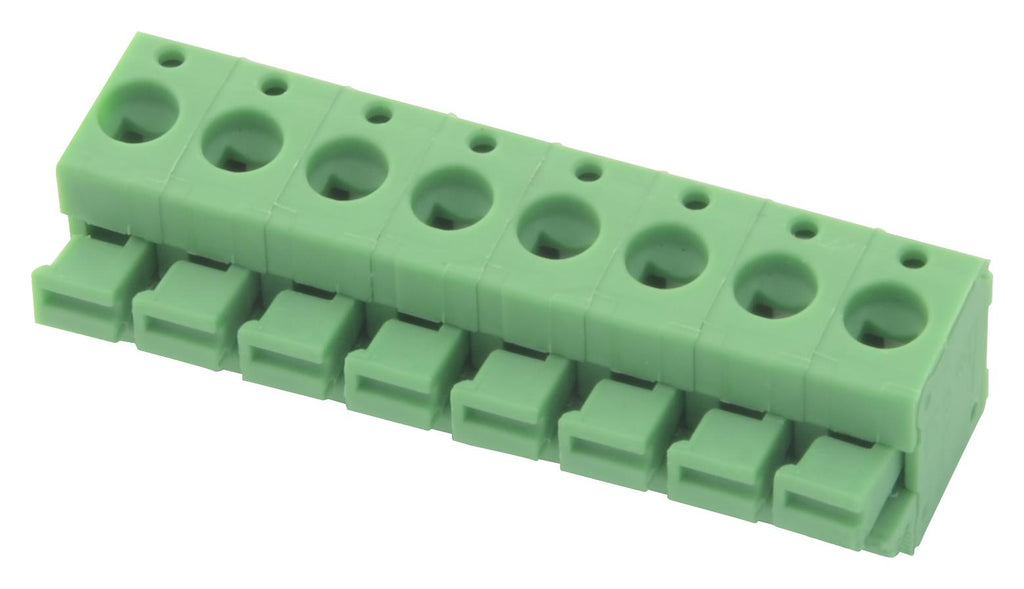

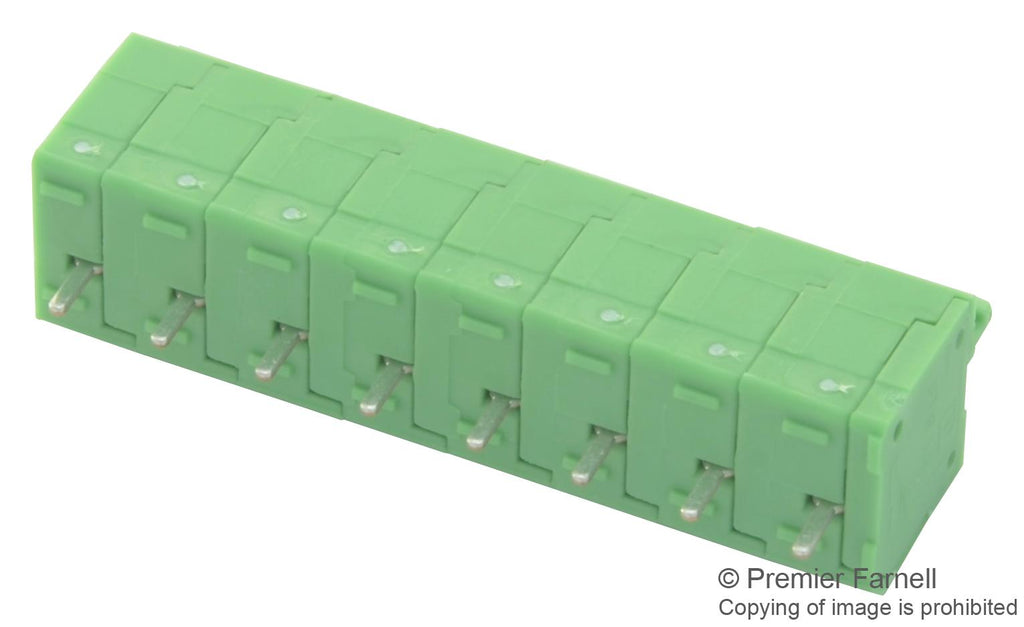

The 1792928 is a 8-position 16A green wire-to-board Terminal Block with 0° conductor/PCB connection direction and push-in spring connection. The PTS 1,5/ 8-5,0-H has tin-plated contact surface with polyamide insulator.
- UL94V-0 Flammability rating
- Conductor connection with direct plug-in technology
- Integrated release button
- Compact design
Applications
Industrial
Product details
| Pitch Spacing: 5mm |
| No. of Positions: 8Ways |
| Wire Size AWG Min: 26AWG |
| Wire Size AWG Max: 14AWG |
| Conductor Area CSA: 2.5mm² |
| Wire Connection Method: Push In |
| Rated Current: 12A |
| Rated Voltage: 400V |
| Block Orientation: Through Hole Right Angle |
| Product Range: PTS |
Other details
| Brand | PHOENIX CONTACT |
| Part Number | 1792928 |
| Quantity | Each |
| Technical Data Sheet EN |  |
