Description

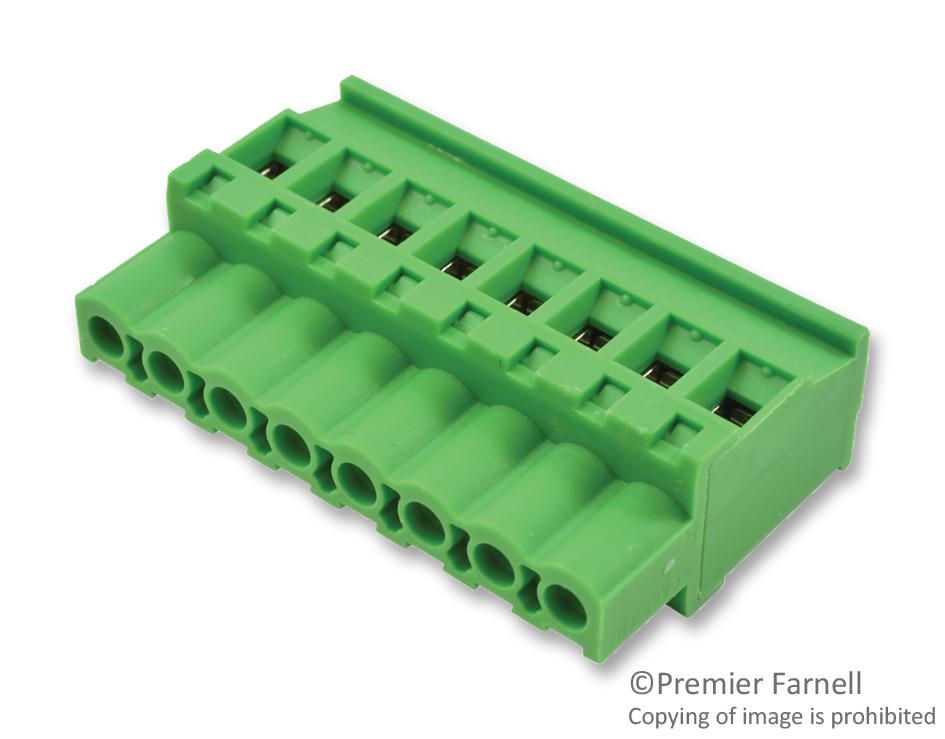

The 1792812 is a 8-position 12A green Printed-Circuit Board Connector with tin-plated contact surface and polyamide insulator. The MVSTBW 2,5/ 8-ST-5,08 connector has screw connection with tension sleeve and conductor entry on the rippled side of the plug.
- Conductor entry on the coded side of the connector
- M3 Screw thread
Applications
Industrial
Footnotes
In accordance with DIN EN 61984, COMBICON plug-in connectors have no switching power. During designated use, they must not be plugged in or disconnected when carrying voltage or under load.
Product details
| Pitch Spacing: 5.08mm |
| No. of Positions: 8Ways |
| Wire Size (AWG): 24AWG to 12AWG |
| Conductor Area CSA: 2.5mm² |
| Wire Connection Method: Screw |
| Rated Current: 12A |
| Rated Voltage: 320V |
| Product Range: MVSTBW2.5 |
Other details
| Brand | PHOENIX CONTACT |
| Part Number | 1792812 |
| Quantity | Each |
| Technical Data Sheet EN |  |
