| ₹ 566.21 includes GST and import duties. | |
| B2B customers can avail ₹ 86.35 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

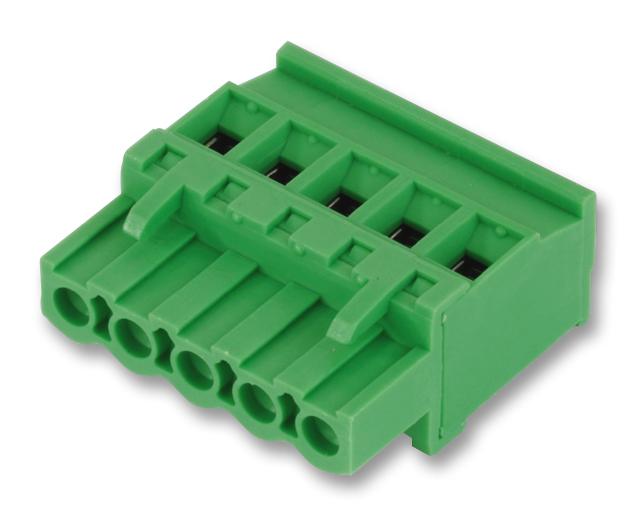

The MVSTBR series Printed-Circuit Board Connector with plug-in direction vertical to the conductor axis, connection point facing the smooth wall (R) of the header. It has 90° difference in plug-in direction for the conductor connection and reduces the risk of the connector being pulled out with the conductor and narrower conductor routing to the application.
- Well-known connection principle allows worldwide use
- Low temperature rise, thanks to maximum contact force
- Allows connection of two conductors
Applications
Industrial
Product details
| Pitch Spacing: 5.08mm |
| No. of Positions: 5Ways |
| Wire Size (AWG): 24AWG to 12AWG |
| Conductor Area CSA: 2.5mm² |
| Wire Connection Method: Screw |
| Rated Current: 12A |
| Rated Voltage: 320V |
| Product Range: MVSTBR |
Other details
| Brand | PHOENIX CONTACT |
| Part Number | 1792278 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 554.89 |
| 3-5 | ₹ 549.22 |
| 5-10 | ₹ 537.9 |
| 10+ | ₹ 526.58 |
Bulk discount will be automatically applied during checkout based on quantity.
