Description

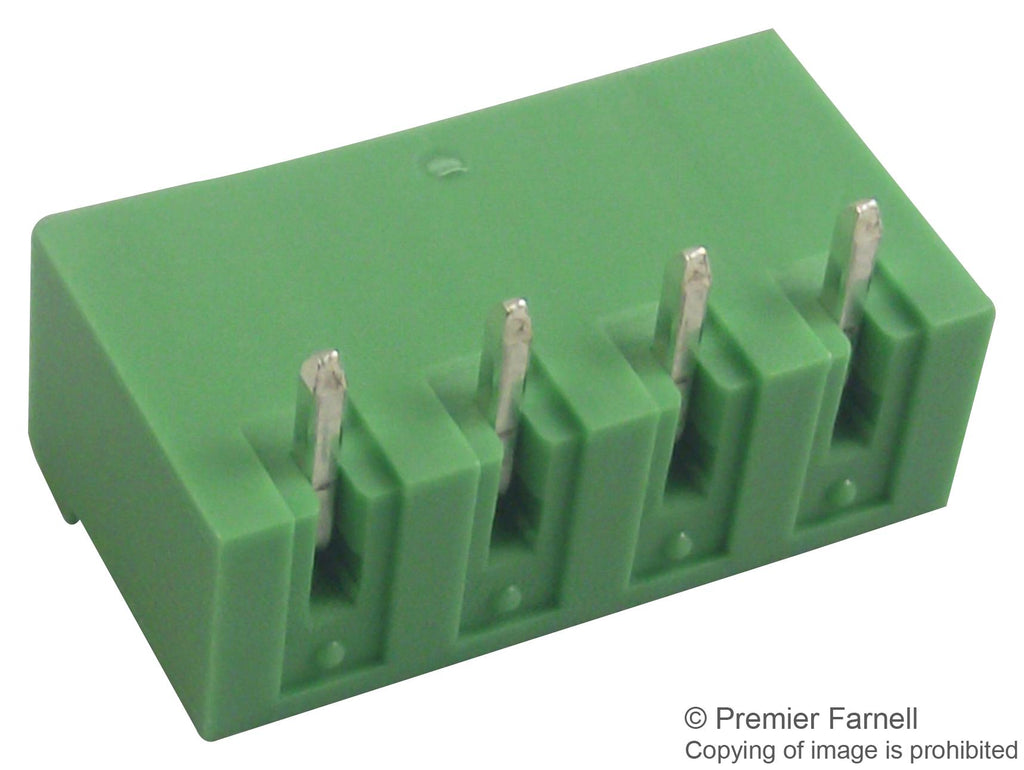

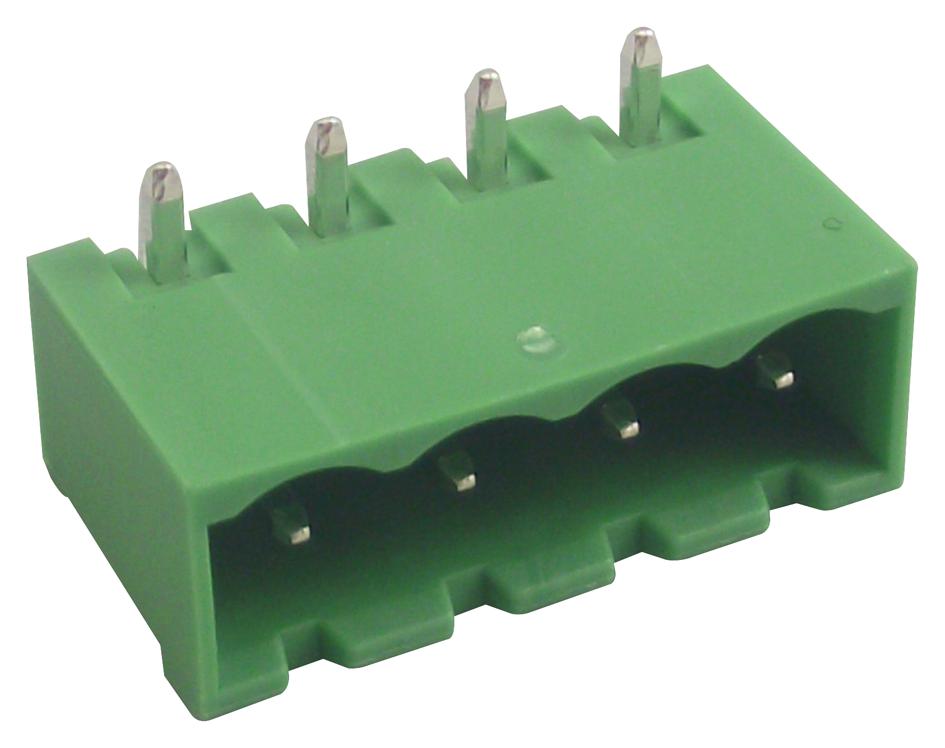

The 1757268 from Phoenix Contact is a through hole right angle mount, 4 position terminal block header with 5.08mm pitch spacing.
- Green colour insulation
- Polyamide (PA) insulation material
- Tin contact surface
- Header dimensions is 12mm x 22.24mm x 12.1mm (L x W x H)
- Hole diameter is 1.4mm
- Plug-in direction parallel to the conductor axis
- UL94 V-0 flammability rating
- CSA, VDE, IECEE CB, CCA, EAC and cULus recognized
- W type with stand-off
Applications
Industrial
Product details
| Gender: Header |
| Pitch Spacing: 5.08mm |
| No. of Positions: 4Ways |
| Rated Current: 12A |
| Rated Voltage: 250V |
| Block Orientation: Through Hole Right Angle |
| Product Range: MSTBA |
Other details
| Brand | PHOENIX CONTACT |
| Part Number | 1757268 |
| Quantity | Each |
| Technical Data Sheet EN |  |
