Description

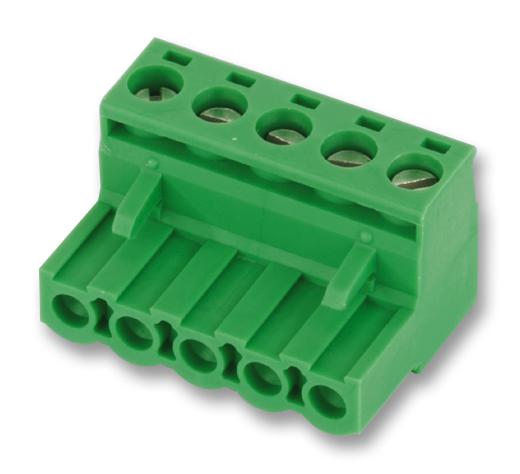

The 1757048 from Phoenix Contact is a 5 position pluggable terminal block with screw connection. This terminal block comes with 5.08mm pitch spacing and suitable for wire size ranging from 24AWG to 12AWG.
- Green colour insulation
- Tin contact surface
- Plug-in direction parallel to the conductor axis
- Individual position coding by inserting coding profiles
- Polyamide (PA) insulating material
- UL94 V-0 flammability rating
- CSA, VDE, IECEE CB, CCA, EAC and cULus recognized
- Dimension of terminal block is 18.3mm x 15mm x 25.4mm (L x H x W)
Applications
Industrial
Product details
| Pitch Spacing: 5.08mm |
| No. of Positions: 5Ways |
| Wire Size (AWG): 24AWG to 12AWG |
| Conductor Area CSA: 2.5mm² |
| Wire Connection Method: Screw |
| Rated Current: 12A |
| Rated Voltage: 320V |
| Product Range: MSTB |
Other details
| Brand | PHOENIX CONTACT |
| Part Number | 1757048 |
| Quantity | Each |
| Technical Data Sheet EN |  |
