Description

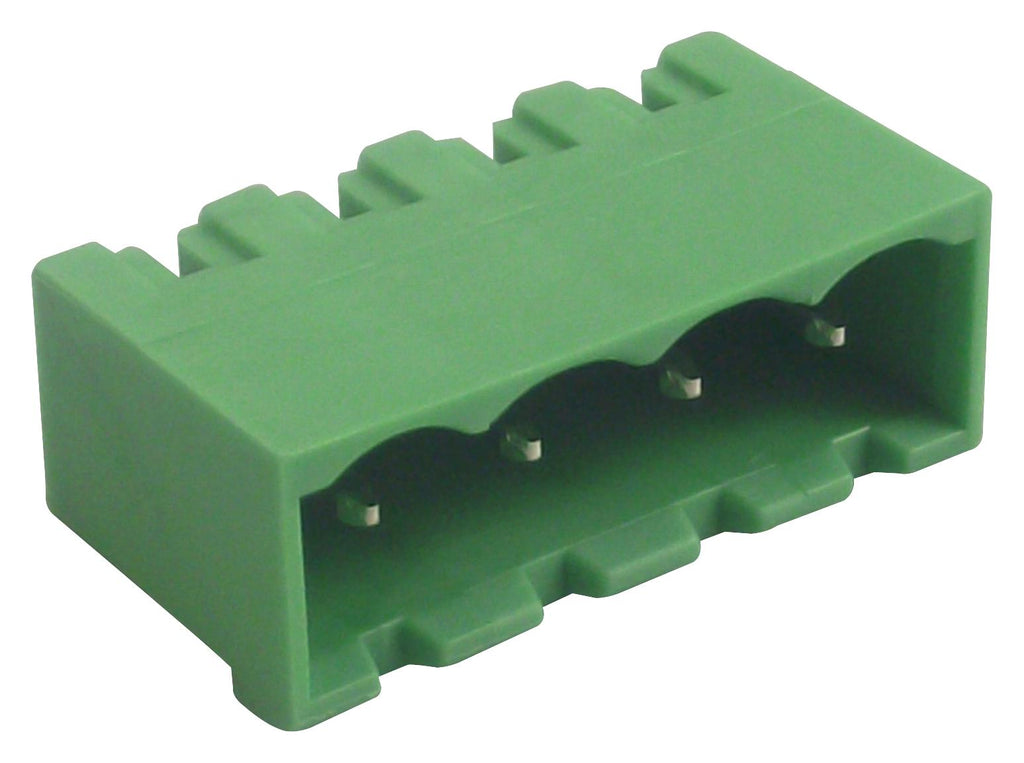

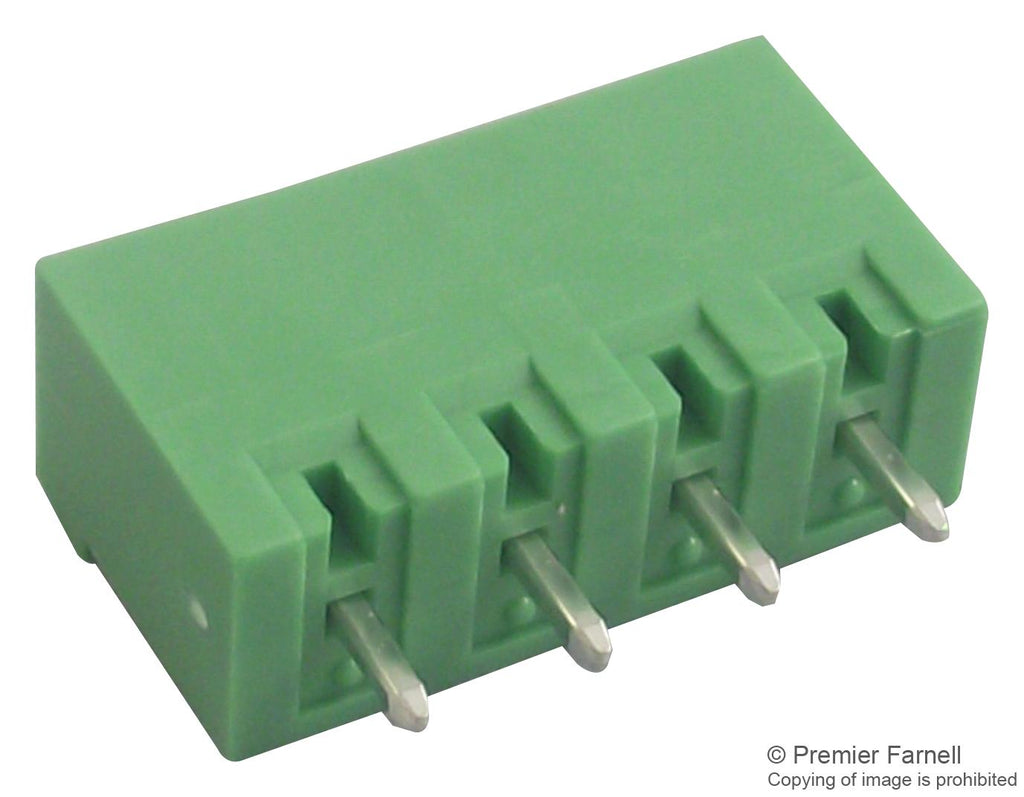

The 1755752 from Phoenix Contact is a through hole, 4 position terminal block header with 5.08mm pitch spacing.
- Green colour insulation
- Polyamide (PA) insulation material
- Tin contact surface
- Header dimensions is 8.6mm x 22.32mm x 15.9mm (L x W x H)
- Hole diameter is 1.4mm
- Plug-in direction is vertical to the PCB
- UL94 V-0 flammability rating
- CSA, VDE, IECEE CB, CCA, EAC and cULus recognized
Applications
Industrial
Product details
| Gender: Header |
| Pitch Spacing: 5.08mm |
| No. of Positions: 4Ways |
| Rated Current: 12A |
| Rated Voltage: 250V |
| Block Orientation: Through Hole Vertical |
| Product Range: MSTBVA |
Other details
| Brand | PHOENIX CONTACT |
| Part Number | 1755752 |
| Quantity | Each |
| Technical Data Sheet EN |  |
