Description

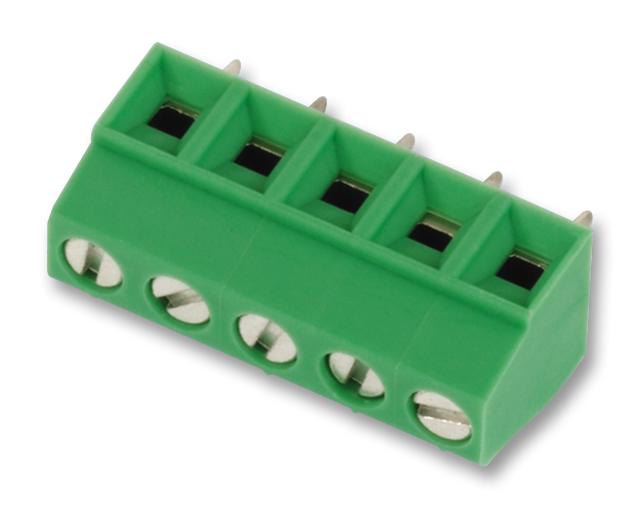

The 1727049 is a 5-position green PCB Terminal Block with tin-plated solder contacts, a polyamide insulator and the M2 screw connection. This MKDS 1/ 5-3,81 terminal block has fully developed contact geometries and surfaces. It accepts 26 to 16AWG wire range.
- Space-saving and safe
- Single-row type with horizontal connection direction
- 5mm Stripping length
- UL94V-0 Flammability rating
Applications
Industrial
Product details
| Pitch Spacing: 3.81mm |
| No. of Positions: 5Ways |
| Wire Size AWG Min: 26AWG |
| Wire Size AWG Max: 16AWG |
| Conductor Area CSA: 1.5mm² |
| Wire Connection Method: Screw |
| Rated Current: 10A |
| Rated Voltage: 300V |
| Block Orientation: Through Hole Right Angle |
| Product Range: MKDS |
Other details
| Brand | PHOENIX CONTACT |
| Part Number | 1727049 |
| Quantity | Each |
| Technical Data Sheet EN |  |
