Description

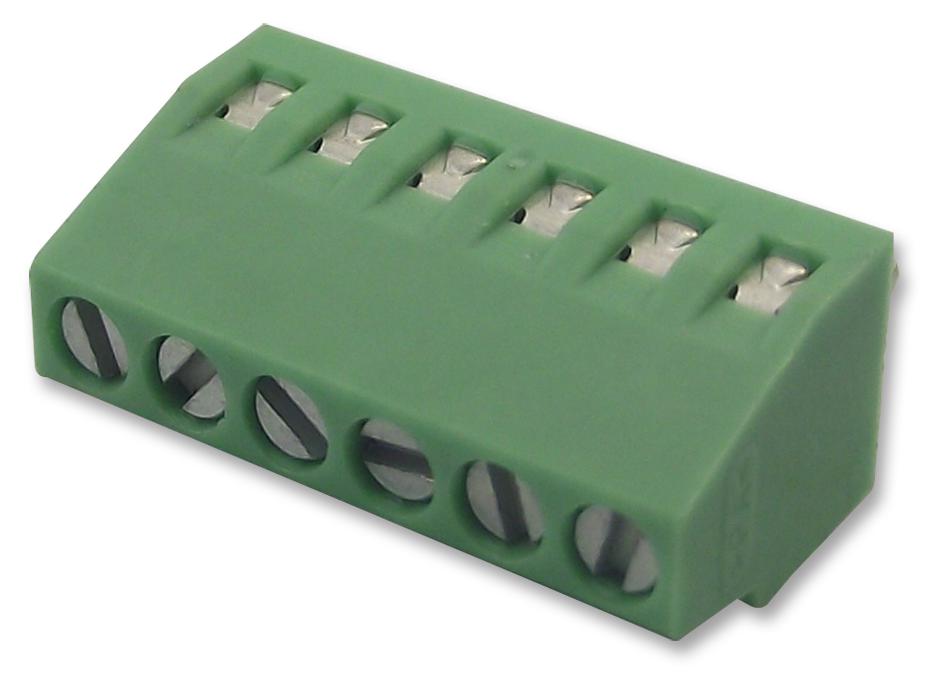

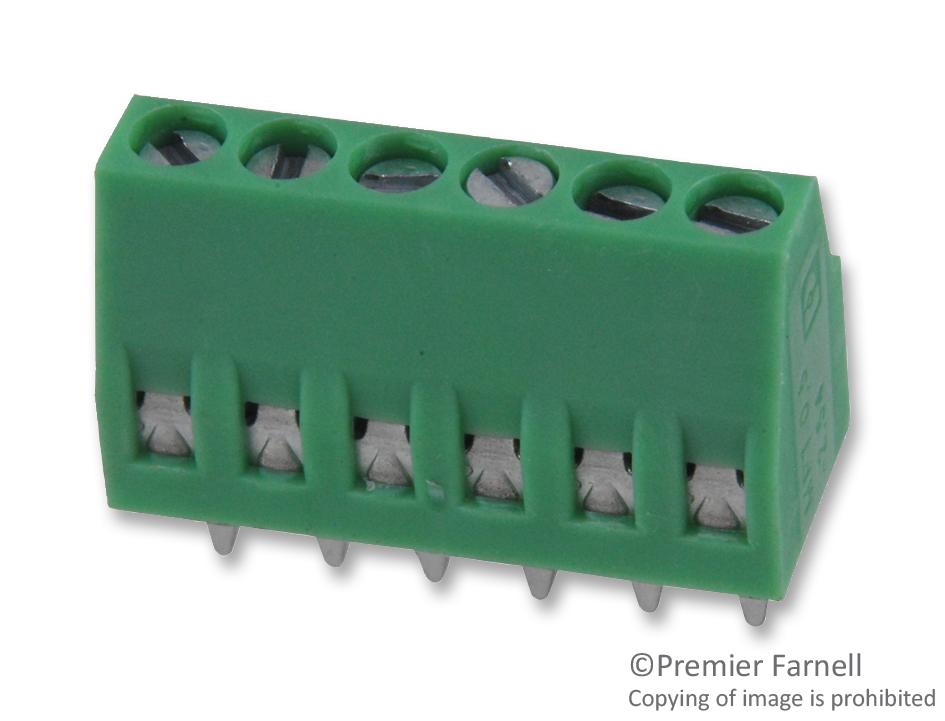

The 1725698 is a 6-way Wire-to-board PCB Terminal Block made of PA insulation, ideal for use in miniature modules with high contact density. The MPT 0,5/ 6-2,54 features screw connection with tension sleeve and wave soldering. It is a MICRO PCB terminal block with 2.54mm IC pitch.
- Green color
- Single-row type with horizontal connection direction
- UL94V-0 Flammability rating
Applications
Industrial
Product details
| Pitch Spacing: 2.54mm |
| No. of Positions: 6Ways |
| Wire Size AWG Min: 26AWG |
| Wire Size AWG Max: 20AWG |
| Conductor Area CSA: 0.5mm² |
| Wire Connection Method: Screw |
| Rated Current: 6A |
| Rated Voltage: 125V |
| Block Orientation: Through Hole Right Angle |
| Product Range: MPT |
Other details
| Brand | PHOENIX CONTACT |
| Part Number | 1725698 |
| Quantity | Each |
| Technical Data Sheet EN |  |
