Description

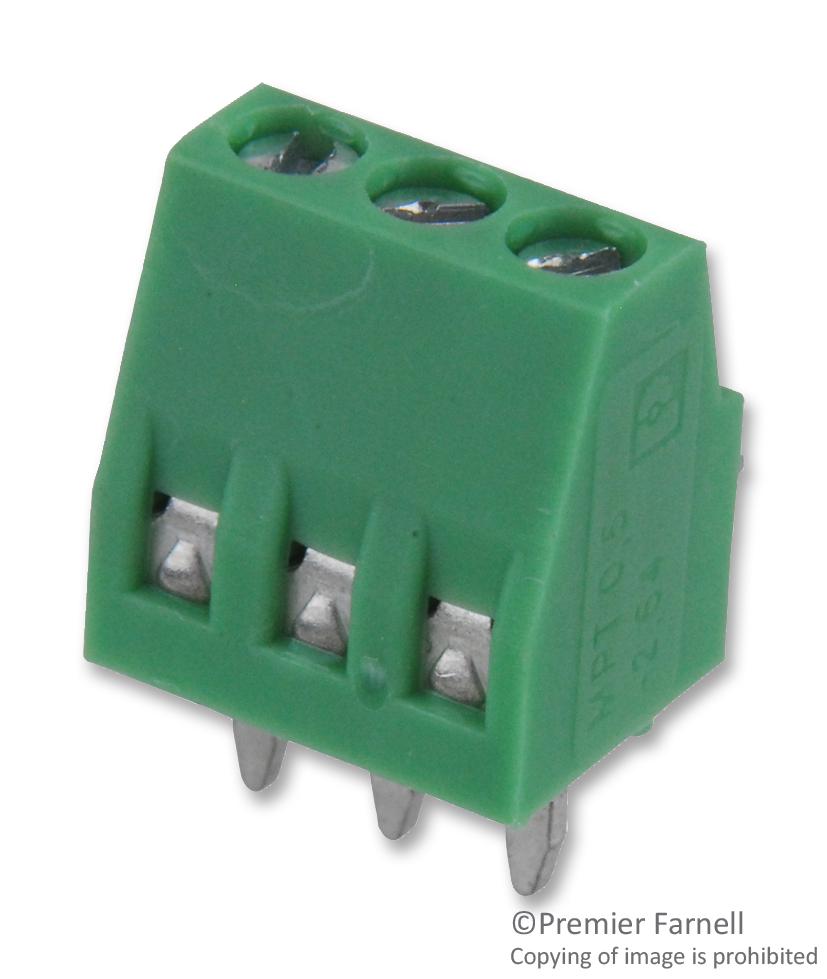

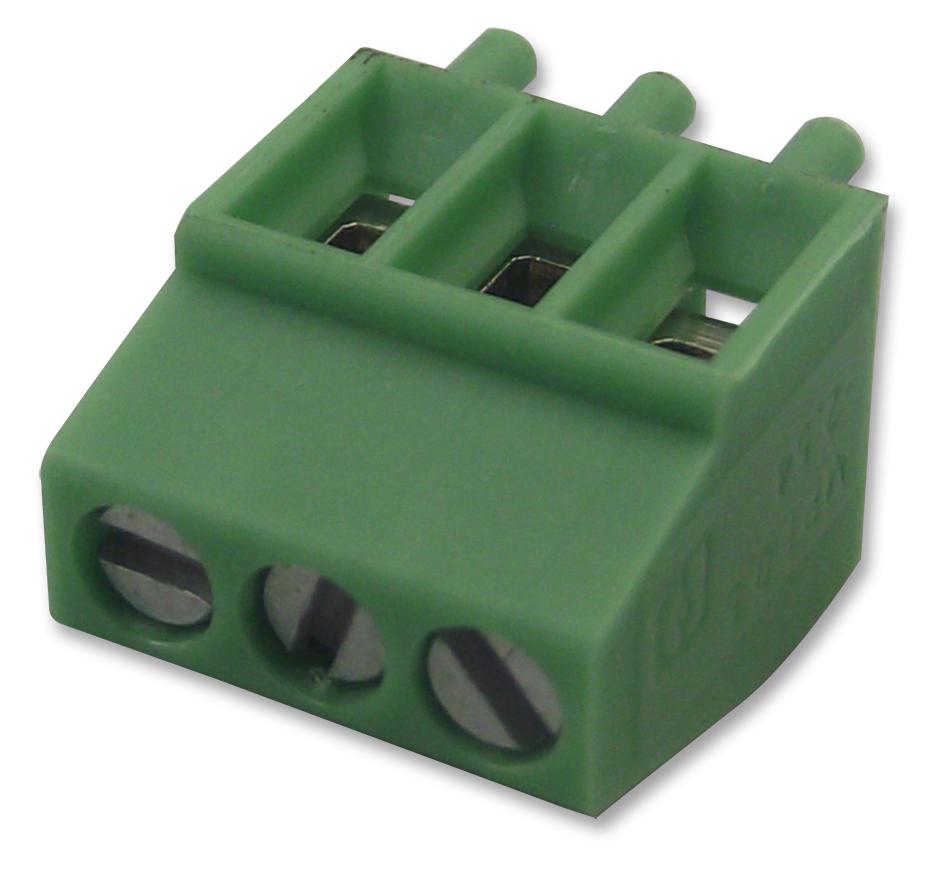

The 1725669 is a 3-way Wire-to-board PCB Terminal Block made of PA insulation ideal for use in miniature modules with high contact density. The MPT 0,5/ 3-2,54 features screw connection with tension sleeve and wave soldering. It is a MICRO PCB terminal block with 2.54mm IC pitch.
- Green color
- Single-row type with horizontal connection direction
- UL94V-0 Flammability rating
Applications
Industrial
Product details
| Pitch Spacing: 2.54mm |
| No. of Positions: 3Ways |
| Wire Size AWG Min: 26AWG |
| Wire Size AWG Max: 20AWG |
| Conductor Area CSA: 0.5mm² |
| Wire Connection Method: Screw |
| Rated Current: 6A |
| Rated Voltage: 125V |
| Block Orientation: Through Hole Right Angle |
| Product Range: MPT |
Other details
| Brand | PHOENIX CONTACT |
| Part Number | 1725669 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 279.84 |
| 3-5 | ₹ 276.98 |
| 5-10 | ₹ 271.27 |
| 10+ | ₹ 265.56 |
Bulk discount will be automatically applied during checkout based on quantity.
