Description

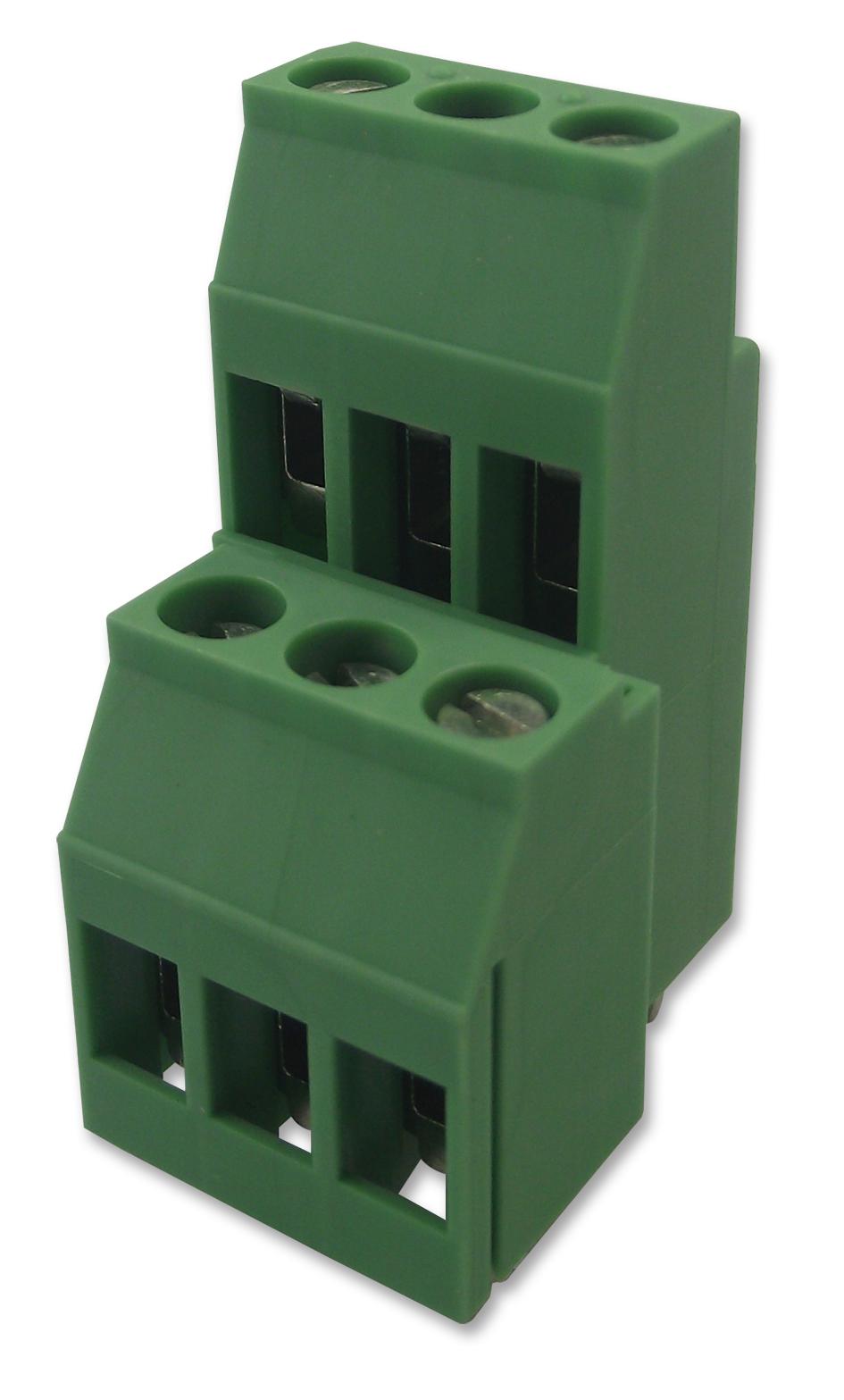

The 1721731 is a 3-position green PCB Terminal Block with tin-plated solder contacts, a polyamide insulator and the M3 screw connection. This MKKDS 3/ 3-5,08 terminal block has fully developed contact geometries and surfaces. It accepts 30 to 12AWG wire range.
- Space-saving and safe
- Double-level type with high packing and connection density
- Offset levels for optimum access to the terminal points
- 7mm Stripping length
- A3 Internal cylindrical gage
- UL94V-0 Flammability rating
Applications
Industrial
Product details
| Pitch Spacing: 5.08mm |
| No. of Positions: 3Ways |
| Wire Size AWG Min: 30AWG |
| Wire Size AWG Max: 12AWG |
| Conductor Area CSA: 4mm² |
| Wire Connection Method: Screw |
| Rated Current: 22A |
| Rated Voltage: 400V |
| Block Orientation: Through Hole Right Angle |
| Product Range: MKKDS |
Other details
| Brand | PHOENIX CONTACT |
| Part Number | 1721731 |
| Quantity | Each |
| Technical Data Sheet EN |  |
