Description

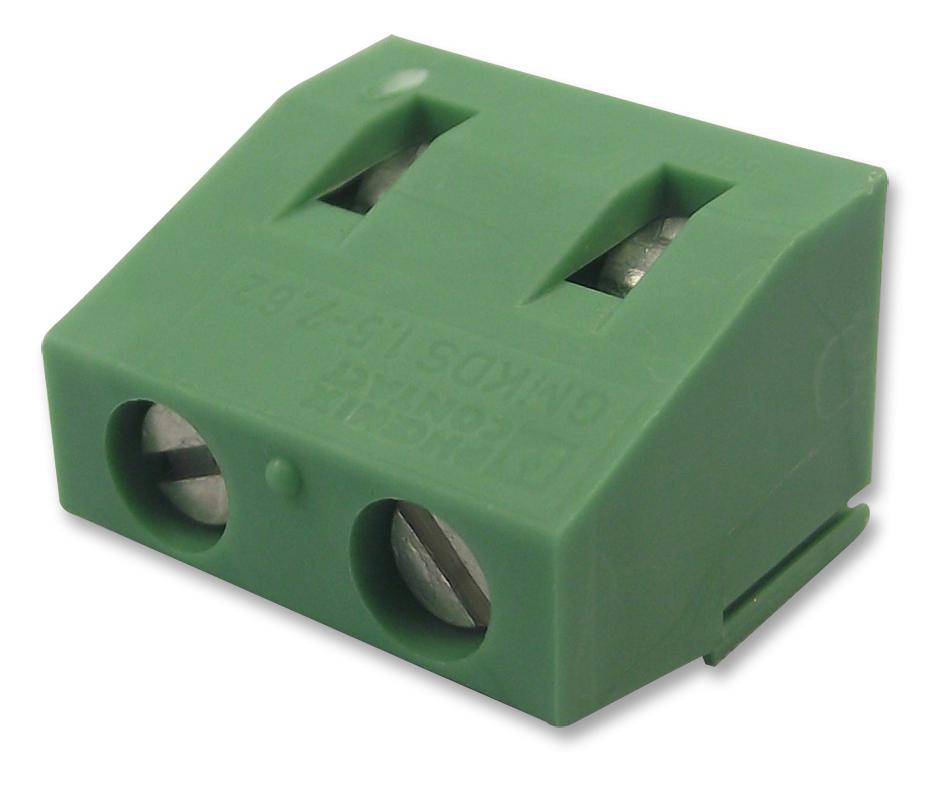

The 1717729 is a 2-position green PCB Terminal Block with tin-plated solder contacts, a polyamide insulator and the M3 screw connection. This GMKDS 1,5/ 2-7,62 terminal block has fully developed contact geometries and surfaces. It can be consistently connected in series with the corresponding standard models of the MKDS 1,5 range. It accepts 26 to 16AWG wire range.
- Space-saving and safe
- 6.5mm Stripping length
- A1 Internal cylindrical gage
- UL94V-0 Flammability rating
Applications
Industrial
Product details
| Pitch Spacing: 7.62mm |
| No. of Positions: 2Ways |
| Wire Size AWG Min: 26AWG |
| Wire Size AWG Max: 16AWG |
| Conductor Area CSA: 1.5mm² |
| Wire Connection Method: Screw |
| Rated Current: 17.5A |
| Rated Voltage: 630V |
| Block Orientation: Through Hole Right Angle |
| Product Range: GMKDS |
Other details
| Brand | PHOENIX CONTACT |
| Part Number | 1717729 |
| Quantity | Each |
| Technical Data Sheet EN |  |
