Description

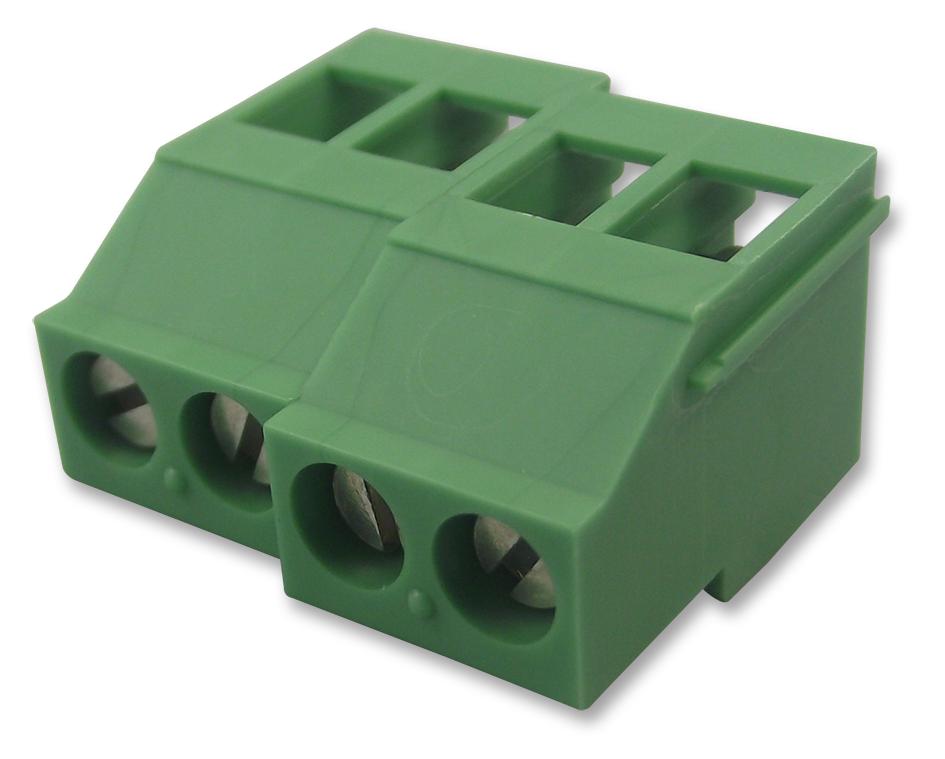

The 1712805 is a 4-position green PCB Terminal Block with tin-plated solder contacts, a polyamide insulator and the M3 screw connection. This MKDS 3/ 4-5,08 terminal block has fully developed contact geometries and surfaces. It accepts 24 to 12AWG wire range.
- Space-saving and safe
- 8mm Stripping length
- A3 Internal cylindrical gage
- UL94V-0 Flammability rating
Applications
Industrial
Product details
| Pitch Spacing: 5.08mm |
| No. of Positions: 4Ways |
| Wire Size AWG Min: 24AWG |
| Wire Size AWG Max: 12AWG |
| Conductor Area CSA: 1.5mm² |
| Wire Connection Method: Screw |
| Rated Current: 24A |
| Rated Voltage: 400V |
| Block Orientation: Through Hole Right Angle |
| Product Range: MKDS |
Other details
| Brand | PHOENIX CONTACT |
| Part Number | 1712805 |
| Quantity | Each |
| Technical Data Sheet EN |  |
