Description

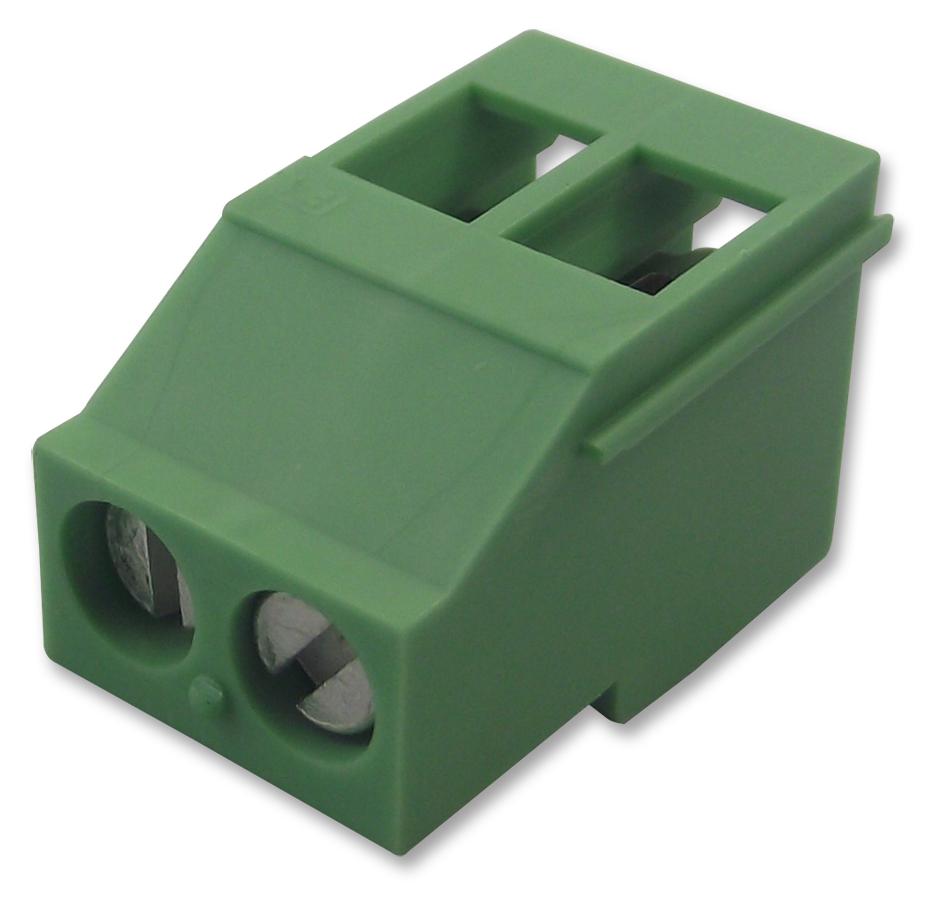

The 1711725 from Phoenix Contact is a through hole, 2 position PCB terminal block with 5.08mm lead spacing. Terminal block is made of PA insulating material and suitable for wire size ranging from 24AWG to 12AWG.
- Dimension of terminal block is 11.2mm x 10.16mm x 18.5mm (L x W x H)
- Green colour terminal block
- Sn solder pin surface
- Hole diameter of 1.3mm
- UL94 V-0 inflammability rating
- CSA, SEV, GL, CCA, EAC, UL and cULus recognized
- Screw connection
- Right angle wire orientation
Applications
Industrial
Product details
| Pitch Spacing: 5.08mm |
| No. of Positions: 2Ways |
| Wire Size AWG Min: 24AWG |
| Wire Size AWG Max: 12AWG |
| Conductor Area CSA: 1.5mm² |
| Wire Connection Method: Screw |
| Rated Current: 24A |
| Rated Voltage: 400V |
| Block Orientation: Through Hole Right Angle |
| Product Range: MKDS |
Other details
| Brand | PHOENIX CONTACT |
| Part Number | 1711725 |
| Quantity | Each |
| Technical Data Sheet EN |  |
