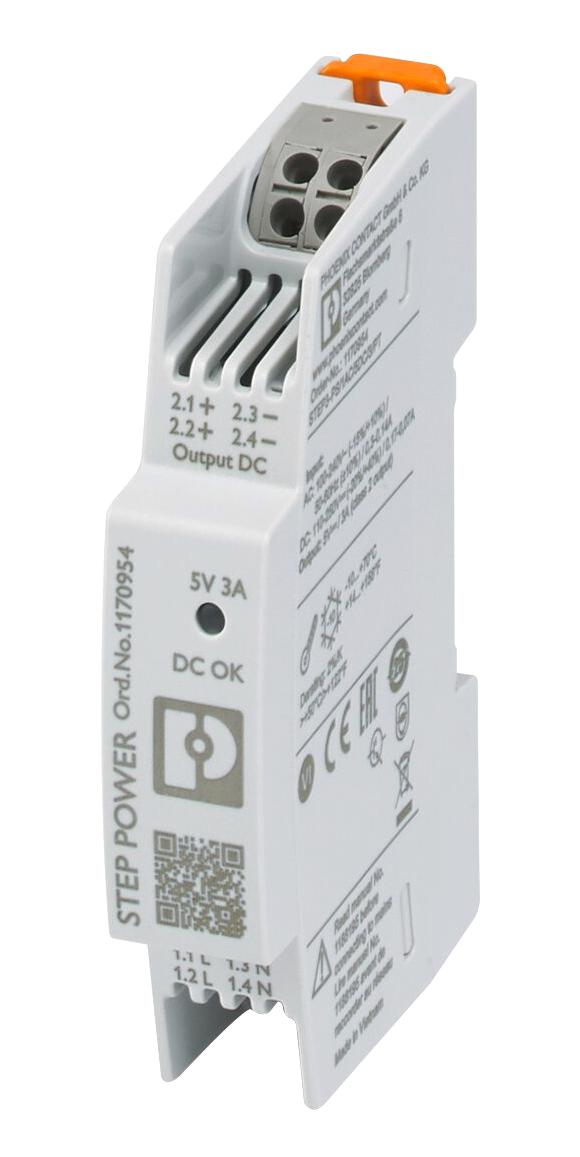

1170954 is a STEP POWER primary-switched power supply for distribution boards. The STEP POWER power supply with Push-in connection technology is the professional solution for intelligent building automation- in both industrial and residential applications. The compact devices are economical, space-saving, and flexible in application.
- Input: 1-phase, output: 5VDC/3A
- Energy savings with highest efficiency in no-load and part-load operation (Efficiency Level VI)
- Space savings in the control cabinet due to the narrow design combined with increased performance
- Approval for household purposes (EN 60335) allows use in domestic applications
- Quick and easy start-up with tool-free push-in connection at a 45° angle with double terminal points
- Flexible mounting: snap onto a DIN rail or screw onto a level surface
Product details
| Power Supply Applications:
Household & Laboratory Equipment
|
| No. of Outputs:
1 Output
|
| Output Power Max:
15W
|
| Output Voltage - Output 1:
5VDC
|
| Output Current - Output 1:
3A
|
| Output Voltage - Output 2:
-
|
| Output Current - Output 2:
-
|
| Output Voltage - Output 3:
-
|
| Output Current - Output 3:
-
|
| Output Voltage - Output 4:
-
|
| Output Current - Output 4:
-
|
| Input Voltage VAC:
100V AC to 240V AC
|
| Power Supply Output Type:
Fixed
|
| Product Range:
STEP POWER Series
|
Other details
| Brand |
PHOENIX CONTACT |
| Part Number |
1170954 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
