Description
- Generator, Analyzer & Monitor
- Eye & Jitter Measurements
- 3G/HD/SD-SDI
- SMPTE Compliance Testing
- Intuitive Interface
- 16:9 Color TFT Screen

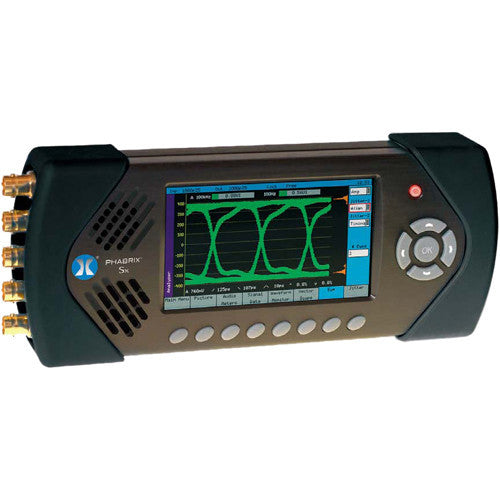

The PHABRIX SxE 3 in 1 Generator/Analyzer/Monitor with Eye and Jitter from Leader is designed to meet the specific demands of both broadcast and manufacturing industries that require eye and jitter measurement. This unit produces eye patterns from a 3G signal, which is particularly significant for those users requiring a solution for testing high-end products in the 3G arena.
Its 3G-SDI, HD-SDI, and SD-SDI eye display allow for highly detailed measurements. Jitter measurements are among the more important requirements in the design and operation of high-speed serial links and these can be obtained using the unit's thermometer display for go/no- go SMPTE compliance testing.

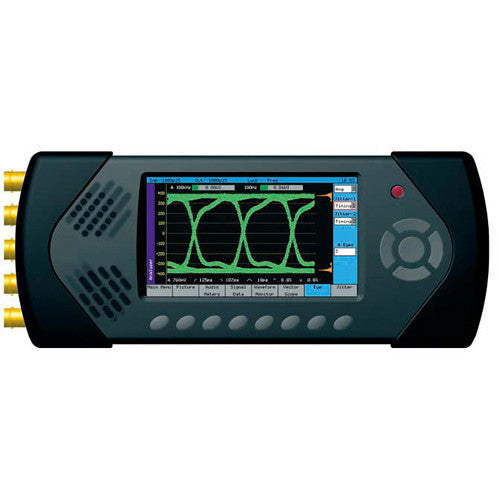

Its interface and logical workflow allow you to quickly select from the numerous on-board toolsets. Feedback is interactive, clearly displaying eye and jitter waveforms with optional filter selection for timing and alignment measurements on its clear 4.3" 16:9 color TFT screen.
- Three in one generator, analyzer, and monitor
- Eye and jitter measurements
- 3G-SDI, HD-SDI,SD-SDI, and AES
- High quality 16:9 picture monitor
- 32 + video test signals
- Moving zone plate
- Text and logo identification
- 16 channel embedded audio
- Auto genlock BI/TRI/SDI cross lock
- 16 channel audio metering
- Waveform monitor
- Vectorscope

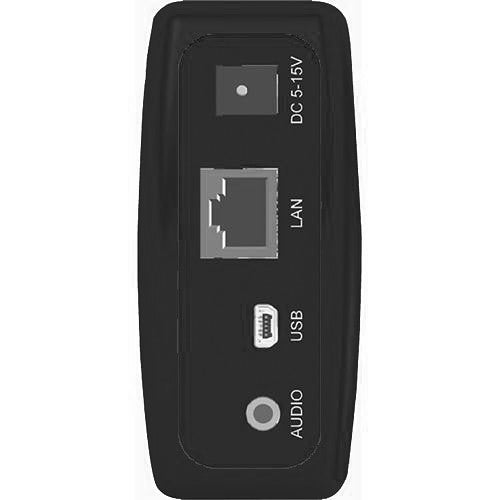

- Ethernet-based remote operation
- Battery plus mains power

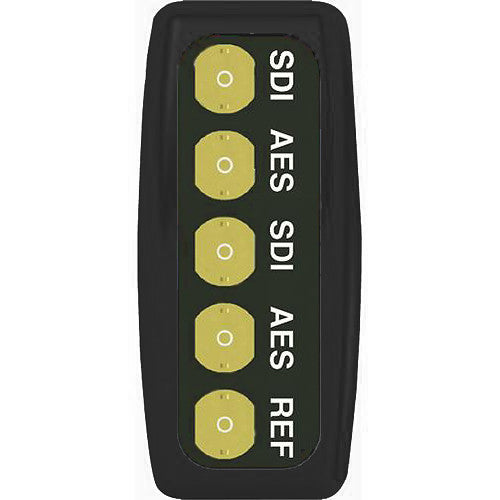

| Video | VIDEO SDI: 3G-SDI, HD-SDI, SD-SDI Outputs: 1 x 75 Ohm BNC Inputs: 1 x 75 Ohm BNC Genlock: bi/tri/SDI with cross lock Adjustable: timing 0 to 1 Frame Text Identification: yes with font, color, point size Logo Identification: yes EDH: yes (SD-SDI) VIDEO TEST SIGNALS VIDEO INPUTS/OUTPUTS |
| Audio | AUDIO Internal Speaker: 0.5W Audio DAC: 24 bit stereo Headphone Socket: 3.5 mm with auto line out Generator/Monitor: 48kHz 20-bit (SD-SDI) 24-bit (HD-SDI) 16 Channel Embedded Audio: yes AES Output: 1 x 75 Ohm BNC AES Input: 1 x 75 Ohm BNC AUDIO TEST SIGNAL |
| Display | Display Resolution: 480 x 272 pixels auto scaling Display Type: 16:9 24 bit color TFT Display Size: 95 x 54 mm Processing: all digital |
| Power | AC power supply (universal) 3-hour lithium polymer integral battery supply |
| Dimensions (HxWxD) | 3.62 x 8.86 x 1.65" (92 x 225 x 42mm) |
| Weight | Not specified by manufacturer |
| Packaging Info | |
|---|---|
| Package Weight | 4.75 lb |
| Box Dimensions (LxWxH) | 11.9 x 8.9 x 4.1" |

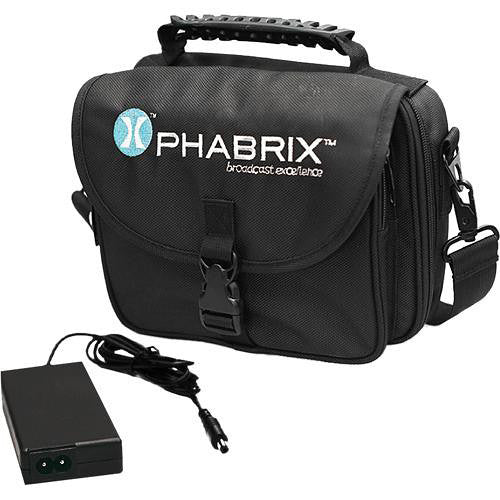

- Carrying Case
- AC Power Supply
- Two-Year Warranty Against Defects in Material & Workmanship
