| ₹ 553350.0 includes GST and import duties. | |
| B2B customers can avail ₹ 84385.88 ITC on this product | |
| 100% Secure Payments | 100% Genuine product | |
| The product is eligible for Free Shipping |
Description
- Generator, Analyzer & Monitor
- 3G/HD/SD-SDI
- Intuitive Interface
- 16:9 Color TFT Screen
- Remote Operation
- Multiple Power Options

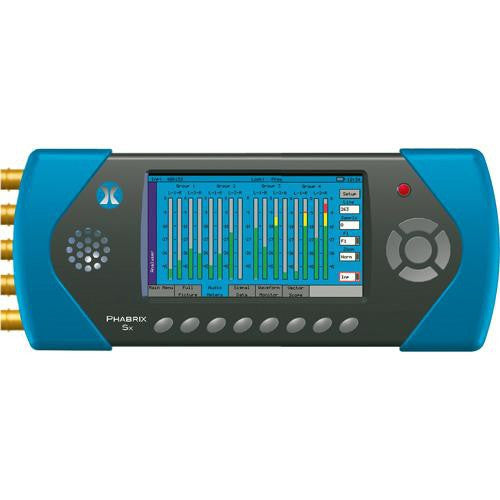

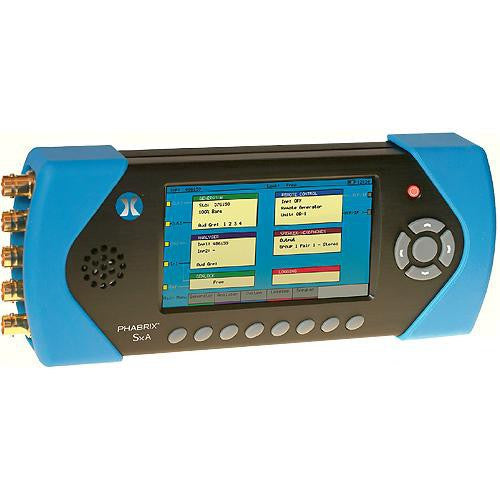

The PHABRIX SxD 3 in 1 Generator/Analyzer/Monitor from Leader is designed to meet the specific demands of both broadcast and manufacturing industries. This unit supports 3G-SDI, HD-SDI, and SD-SDI.
It is configured with a full range of static and animated test patterns. This solution is well suited for use in studio, OB, and lab environments. It supports auto bi-level, tri-level, and SDI genlock with cross lock capability. Combined audio features including support for 16 channels of embedded audio.
Built-in USB and Ethernet connectivity allow for remote operation, or the device can be managed via its 4.3" 16:9 TFT monitor. The unit can be powered either from the internal battery or via the included mains adapter.
- Three in one generator, analyzer, and monitor
- 3G-SDI, HD-SDI,SD-SDI
- High quality 16:9 picture monitor
- 32 + video test signals
- Moving zone plate
- Text and logo identification
- 16 channel embedded audio
- Auto genlock BI/TRI/SDI cross lock
- 16 channel audio metering
- Waveform monitor
- Vectorscope

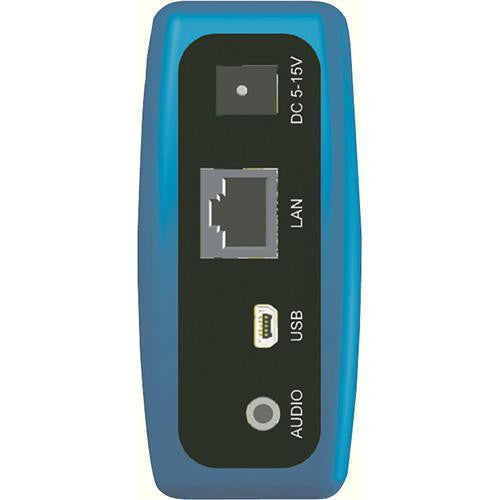

- Ethernet-based remote operation
- Battery plus mains power

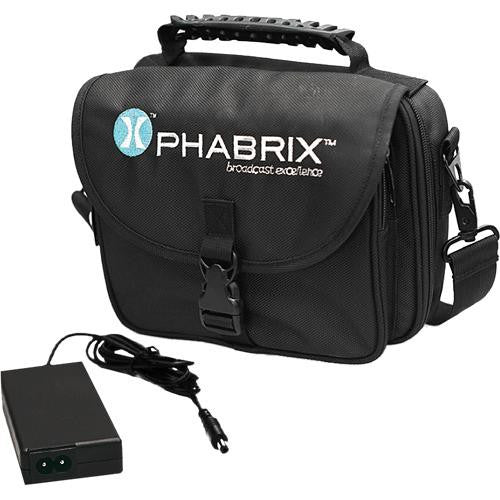

- Carrying Case
- AC Power Supply
- Two-Year Warranty Against Defects in Material & Workmanship

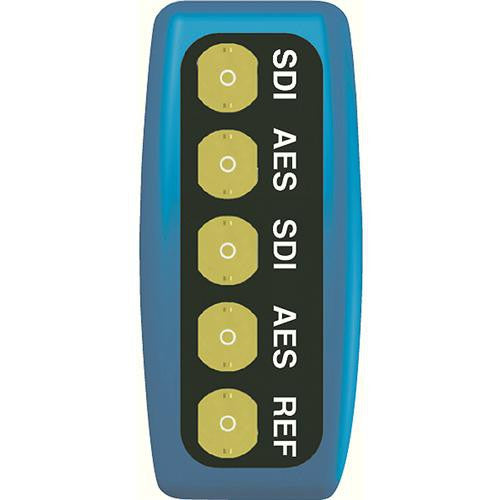

| Video | VIDEO SDI: 3G-SDI, HD-SDI, SD-SDI Outputs: 1 x 75 Ohm BNC Inputs: 1 x 75 Ohm BNC Genlock: bi/tri/SDI with cross lock Adjustable: timing 0 to 1 Frame Text Identification: yes with font, color, point size Logo Identification: yes EDH: yes (SD-SDI) VIDEO TEST SIGNALS VIDEO INPUTS/OUTPUTS |
| Audio | AUDIO Internal Speaker: 0.5W Audio DAC: 24 bit stereo Headphone Socket: 3.5 mm with auto line out Generator/Monitor: 48kHz 20-bit (SD-SDI) 24-bit (HD-SDI) 16 Channel Embedded Audio: yes AES Output: 1 x 75 Ohm BNC AES Input: 1 x 75 Ohm BNC AUDIO TEST SIGNAL |
| Display | Display Resolution: 480 x 272 pixels auto scaling Display Type: 16:9 24 bit color TFT Display Size: 95 x 54 mm Processing: all digital |
| Power | AC power supply (universal) 3-hour lithium polymer integral battery supply |
| Dimensions (HxWxD) | 3.62 x 8.86 x 1.65" (92 x 225 x 42mm) |
| Weight | Not specified by manufacturer |
| Packaging Info | |
|---|---|
| Package Weight | 4.35 lb |
| Box Dimensions (LxWxH) | 11.9 x 9.0 x 4.0" |
Bulk Discount
| Quantity | Price |
| 2 | ₹ 542283.0 |
| 3-5 | ₹ 536749.5 |
| 5-10 | ₹ 525682.5 |
| 10+ | ₹ 514615.5 |
Bulk discount will be automatically applied during checkout based on quantity.
