Description
- HD-SDI, SD-SDI Formats
- Single Analyzer, Dual Inputs
- Picture Viewer for Confidence
- Vectorscope for Color Monitoring
- Waveform Monitor, Level Checking
- Audio Monitoring & Level Checking
- Eye Pattern Monitoring for Jitter
- Jitter Monitoring Over Time

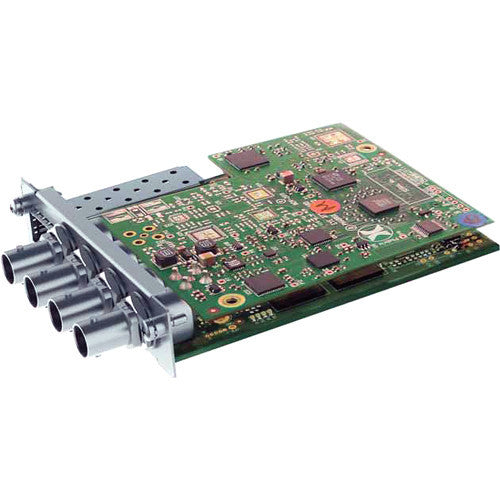

The PHABRIX PHRXM-AE Analyzer Module with Eye Jitter for Rx Series T&M Instruments from Leader allows a single connected SDI video signal to be monitored continuously and allows the generation of a single SDI video test signal.
The analyzer functionality allows 2 connected SD-SDI and HD-SDI inputs to be monitored. The picture viewer gives confidence that the signal is present and is the right feed. The vectorscope allows the color hue, saturation, and phase of the signal to be checked along with the bandwidth of the chrominance in the signal.
The waveform monitor allows the levels of the luminance and color components to be checked. The eye and jitter displays allow jitter in the selected input to be monitored. The audio meter allows 16 channels of embedded audio to be monitored and the levels can be inspected.
- For use in Input Feed Confidence and Monitoring, and Video and Audio Level Checking
- Compatible with the Rx2000, Rx1000, and Rx500 instruments
- Limited 2-Year Warranty
| SDI Input | |
|---|---|
| Input | Analyzer SDI Label: IN1 and IN2 |
| Supported Standards | SD-SDI or HD-SDI |
| Connectors | BNC |
| Input Impedance | 75 ? terminated |
| Input Return Loss | Better than 15 dB (5 to 1485 MHz) and 10 dB (1485 to 2970 MHz) |
| Optical | |
|---|---|
| Input | Analyzer Optical Label: OPTICAL A and B |
| Type | SFP Optical Dual RX Module (Requires option PHRXM-OPTAA, sold separately) |
| Format | SMPTE 424M, 292M, and 259M |
| Maximum Input Voltage | +/- 2 V |
| Output | |
|---|---|
| Output | Analyzer SDI Label: LP1 and LP2 for loop through of SDI IN1 and SD1 IN2 |
| Connector | BNC |
| Output Impedance | 75 ? terminated |
| Monitoring | |
|---|---|
| Monitor | Picture Monitor Aspect Ratio Control: 4:3 or 16:9 (HDMI display only) Waveform Monitor Waveform Types: YCbCr, Y, Cb, Cr, GBR, R, G or B Line Selection: Specific lines or all lines Audio Monitor: 16 displayed channels, -18 or -20 dB audio scale |
| Vectorscope | Graticule: 75 or 100% Scaling: x1, x2, x5, or x10 Line Selection: Specific lines or all lines |
| Eye Pattern Characteristics | Number of Eyes: User selectable Eye Color: Yellow, green, green + hotspots, blue, blue + hotspots Histogram Display: Amplitude, time or amplitude + time Jitter Filters: Timing, alignment, 10 Hz, 100 Hz, 1 kHz, 10 kHz, 100 kHz |
| Jitter Filter | Timing, alignment, 10 Hz, 100 Hz, 1 kHz, 10 kHz, 100 kHz |
Bulk Discount
| Quantity | Price |
| 2 | ₹ 986639.5 |
| 3-5 | ₹ 976571.75 |
| 5-10 | ₹ 956436.25 |
| 10+ | ₹ 936300.75 |
Bulk discount will be automatically applied during checkout based on quantity.
