PGYTECH SnapLock Overview

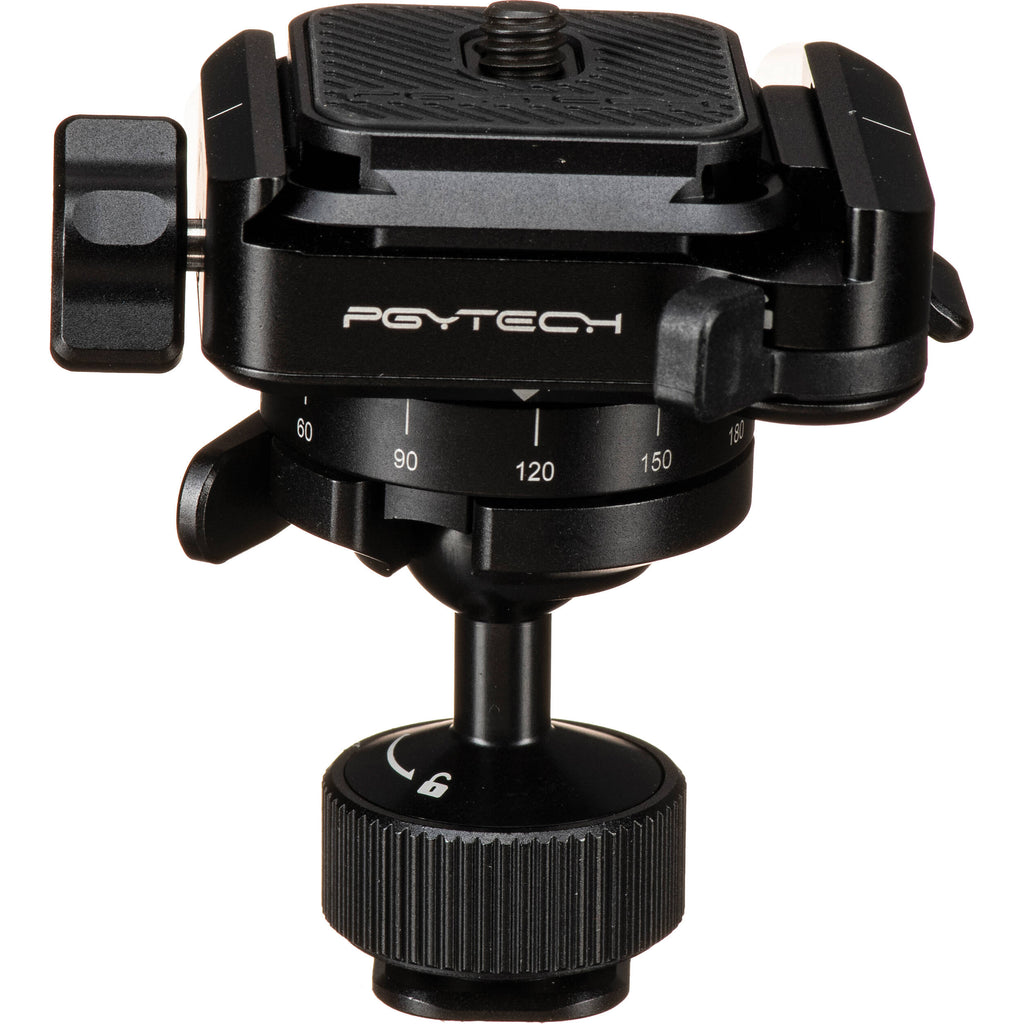

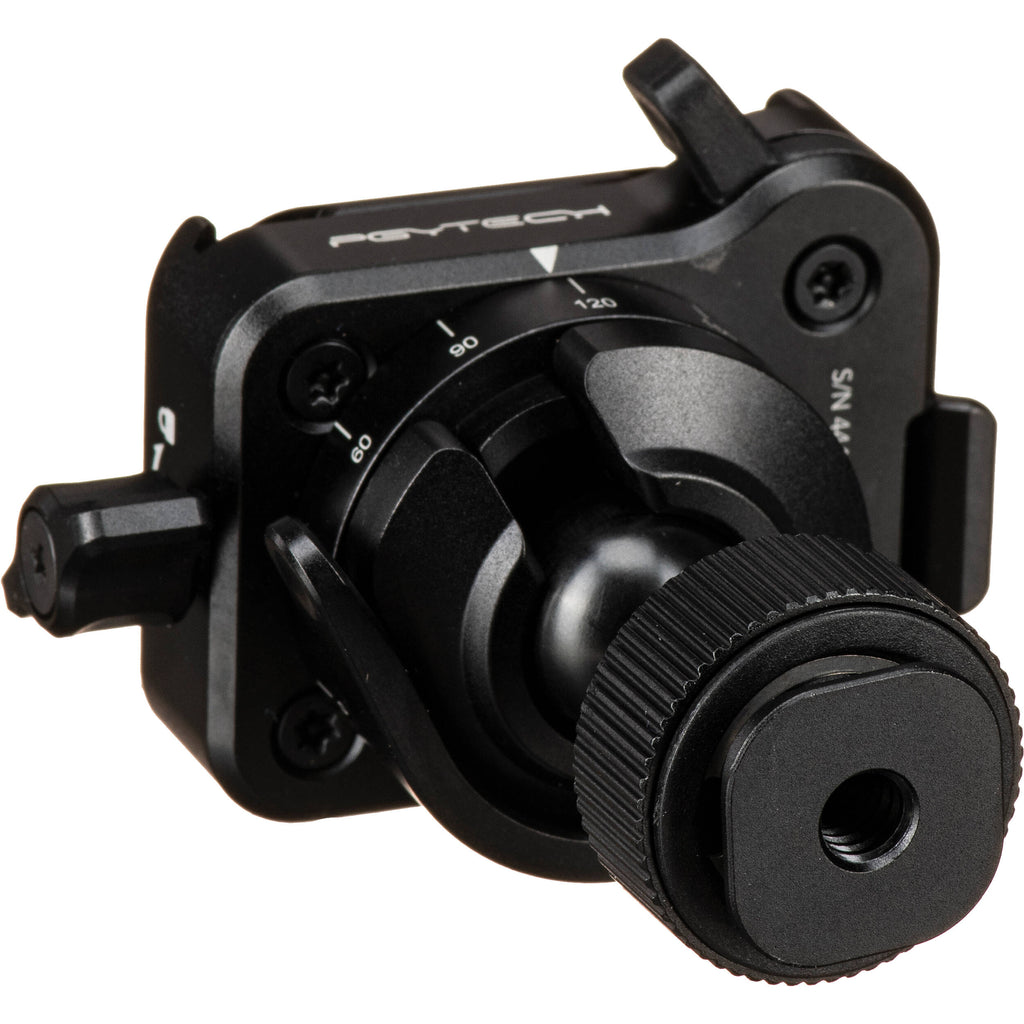

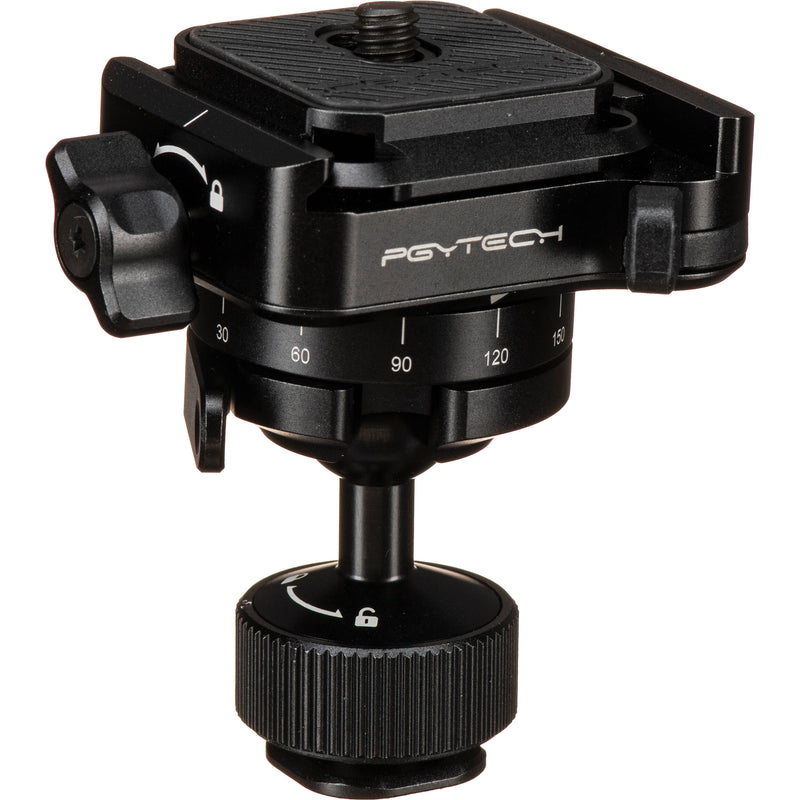

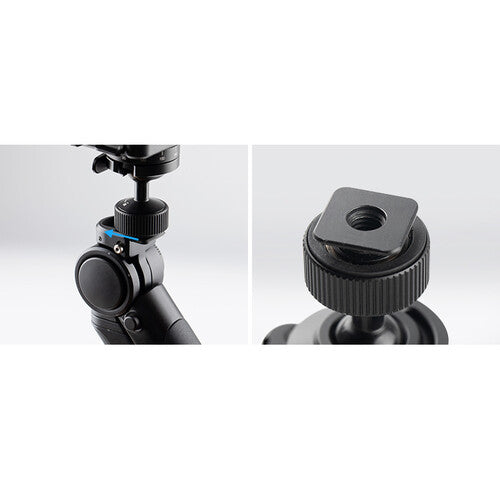

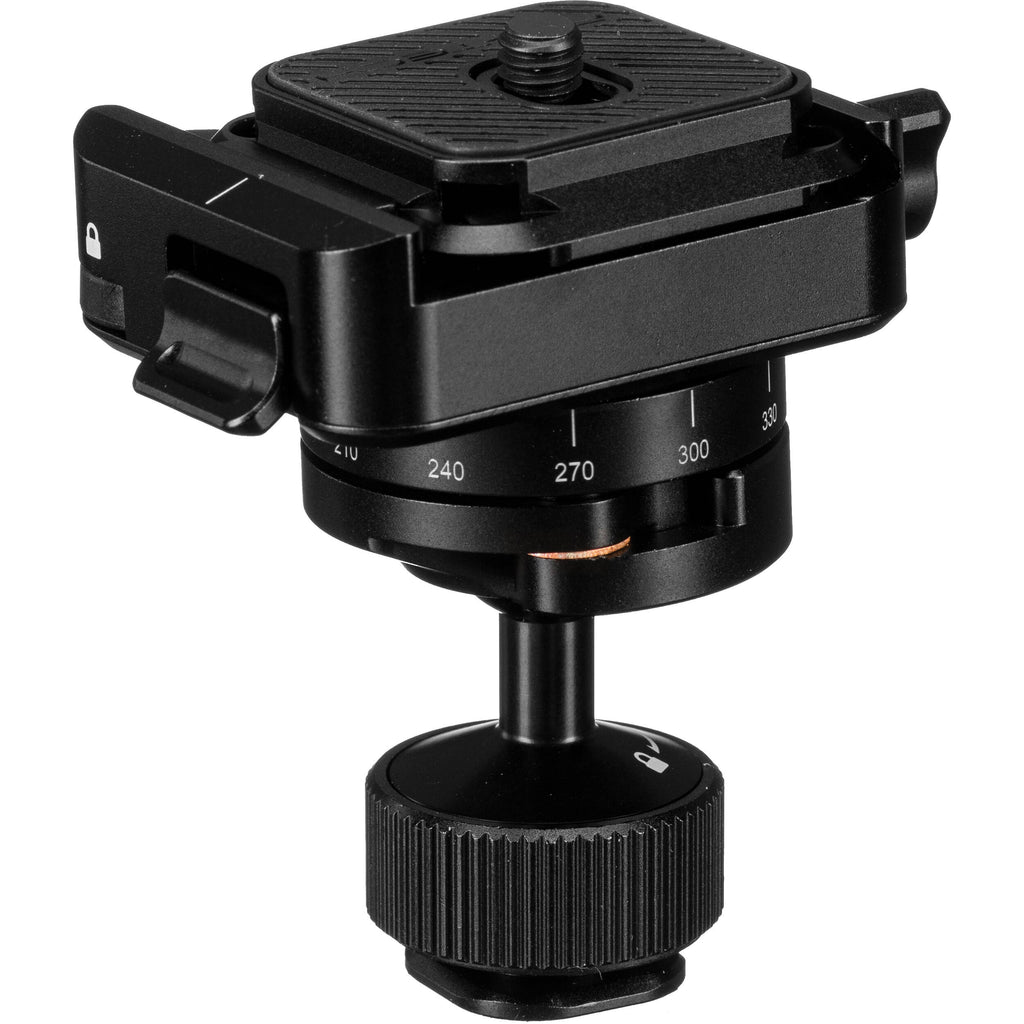

The SnapLock Mini Reverse Ball Head from PYGTECH has an inverted design that makes it different from traditional tripod heads. The compact ball head has been designed to offer resistance allowing for a smooth and controllable operation. All it takes is a squeeze of a single control for the omni-directional ball-head to easily switch to vertical shooting mode or 360° panning. It incorporates a fast SnapLock plate that mounts in one easy step, rather than the slow and tedious traditional tightening knob, and also has a safety lock for added security. The patented SnapLock plate is Arca-type compatible and contains a tight-fitting screw to prevent it from coming undone like traditional quick release plates. It has a square shape, so it can be installed in every direction. The base features a cold accessory foot with a locking ring and a 1/4"-20 threaded socket, so it can be mounted on a camera shoe, cold shoe, or virtually any bracket where it may be used to build a custom rig.
![]()
UPC: 843225110280
In the Box
- PGYTECH SnapLock Mini Reverse Ball Head
- Limited 3-Year Warranty
PGYTECH SnapLock Specs
General
| Head Type |
Ball Head |
| Base Mount |
1/4"-20 Female |
| Camera Mounting Screw |
1/4"-20 Male |
| Quick Release Plate Type |
Arca-Type |
| Load Capacity |
5.5 lb / 2.5 kg |
| Friction Control |
No |
| Independent Pan Lock |
Yes |
| Material |
Aluminum |
Pan & Tilt Range
| Vertical Tilt |
90° |
| Panning Range |
360° |
Physical
| Ball Sphere Diameter |
0.6" / 16 mm |
| Dimensions |
H: 2.8 x W: 2.7 x L: 1.7" / H: 72.3 x W: 68.5 x L: 42.0 mm |
| Weight |
4.2 oz / 118 g |
Packaging Info
| Package Weight |
0.43 lb |
| Box Dimensions (LxWxH) |
4.1 x 4.1 x 2.4" |
