- Phase-Corrected BAK4 Roof Prisms
- Fully Multicoated Optics
- Wide Angle of View: 60°
- Nitrogen-Filled, Water and Fogproof
- Open Bridge Configuration
- Reinforced Polycarbonate Housing
- Center Focusing
- Tripod Mountable
- Twist-Up Eyecups

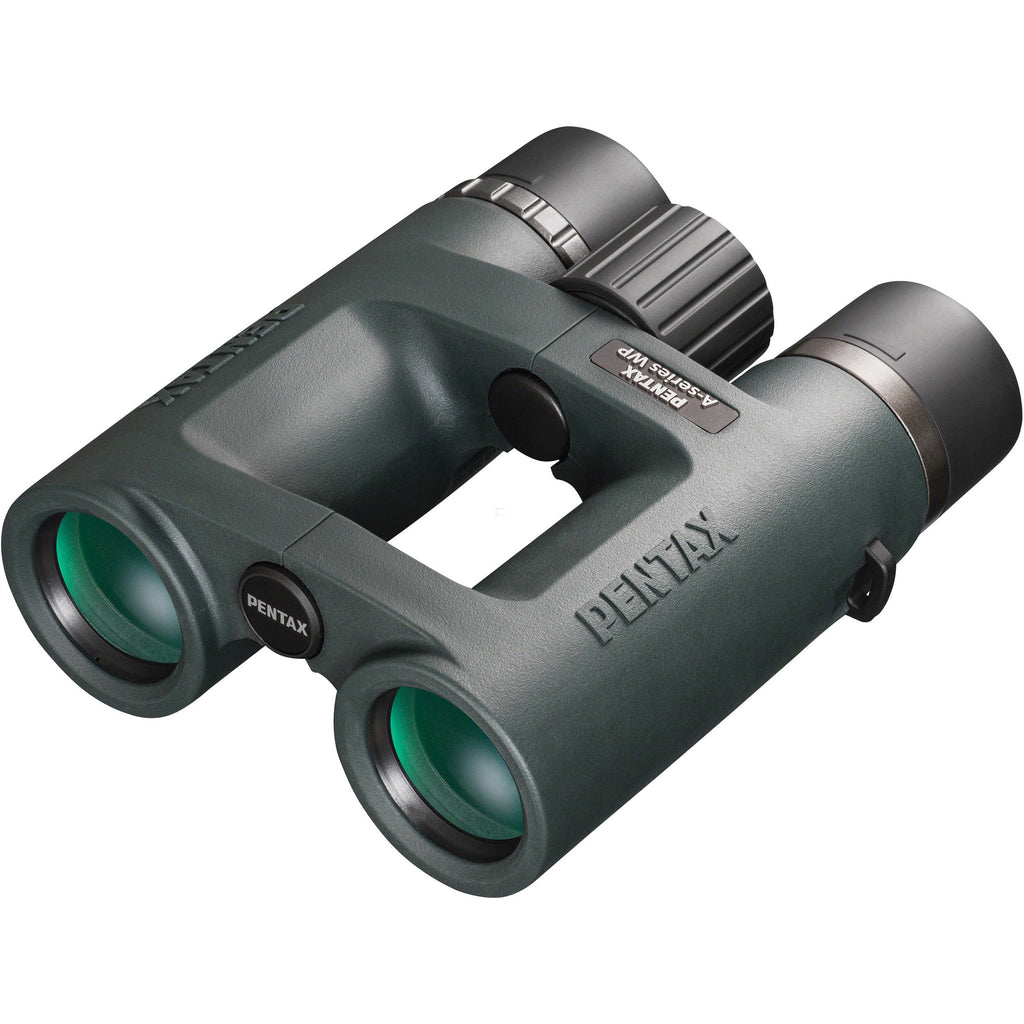

Pentax 's 9x32 A-Series AD WP Binocular features an exciting transitional magnification that produces an enhanced viewing experience over a lower power without the visible hand-shake often associated with higher magnifications. Its 32mm objectives bring in more light than smaller compact optics without being too bulky or heavy, weighing in at just over one pound. The BAK4 roof prisms are phase-corrected to improve image contrast and enhance color rendition. All of the optics are anti-reflection fully multicoated to maximize light transmission to produce the brightest views possible.
To help cut weight, the binocular is designed with an open bridge which also provides a larger grip-area for steadier views. The housing is made of corrosion and impact-resistant fiberglass reinforced polycarbonate polymer. It is also temperature-resistant allowing for its use in extreme climates while reducing expansion and contraction wide temperature swings can cause which can make the optical components move out of collimation over time. Its optical tubes are nitrogen-filled and O-ring sealed so it can be submersed to as much as 3.3', as well as be fogproof in all weather conditions.
- Optical Performance
-
- 9x magnification
- 32mm objective lenses
- BAK4 roof prisms
- Phase corrected prism coatings enhance contrast and improve color rendition
- Anti-reflection fully multicoated optics
- 386' field of view at 1000 yards
- 60° wide angle of view
- Use and Handling
-
- Open bridge configuration reduces weight and provides larger gripping area
- Knurled center focusing wheel
- Twist-up eyecups for use with or without eye wear
- 16mm eye relief, 3.6mm exit pupil
- Tripod mountable with optional adapter
- Construction Details
-
- Lightweight fiberglass reinforced polycarbonate housing
- Housing is corrosion, temperature and impact-resistant
- Nitrogen-filled for fogproof performance, submersible to 3.3' (1m)
- Rubberized armoring protects against impacts and provides slip-resistant grip
- Inner focusing mechanism provides smooth focus while preserving waterproof seals
- Weighs in at 17.6 oz
UPC: 027075288614
| Prism Type | Roof |
| Magnification | 9x |
| Objective Lens Diameter | 32mm |
| Angle of View | 6.7° (actual) |
| Field-of-View | 352' @ 1000 yd / 116.86 m @ 1000 m |
| Minimum Focus Distance | 8.20' / 2.5 m |
| Exit Pupil Diameter | 3.6 mm |
| Eye Relief | 16 mm |
| Interpupillary Adjustment | Not Specified By Manufacturer |
| Dioptric Correction | Not Specified By Manufacturer |
| Focus Type | Center |
| Tripod Mount | Yes (Adapter Optional) |
| Dimensions | 5.4 x 5.0 x 2.0" / 13.72 x 12.70 x 5.08 cm |
| Weight | 17.6 oz / 499 g |
| Packaging Info |
| Package Weight | 1.65 lb |
| Box Dimensions (LxWxH) | 6.7 x 6.0 x 2.8" |
In the Box
Pentax 9x32 A-Series AD WP Binocular
- Neck Strap
- Carrying Case with Strap
- 2 x Objective Lens Caps
- 2 x Eyepiece Caps
- Limited Lifetime Warranty
