- BAK4 Porro Prism
- Fully Multicoated Optics
- Angle of View: 50°
- Nitrogen-Filled, Water and Fogproof
- Closed Bridge Configuration
- Slip-Resistant Rubberized Armoring
- Large Center Focus Wheel
- Tripod Mountable with Optional Adapter
- Fold-Down Rubber Eyecups

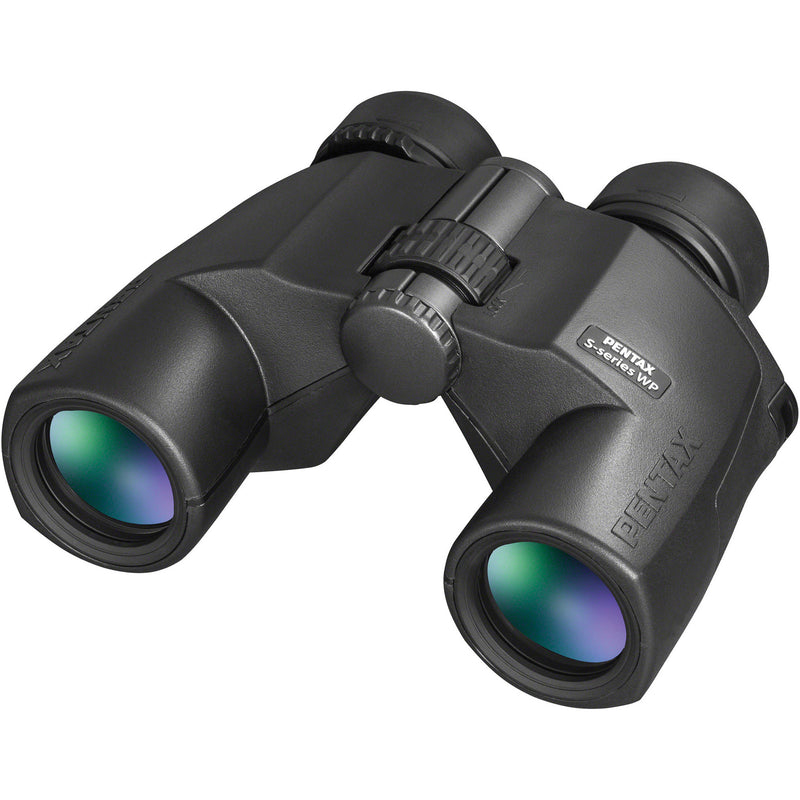

Designed for a lifetime of rugged outdoor use Pentax 's 8x40 S-Series SP WP Binocular can be used with confidence in all weather and lighting conditions. The 40mm objectives are fully multicoated to reduce reflection and maximize light transmission through the entire optical path without making them overly cumbersome for a long day on the trail. Utilizing the traditional porro prism configuration gives scenes a rich depth of view for an immersive observation experience and provides a comfortable feel in the hand with a lot of surface area to maintain a sure grip. The coatings ensure bright and clear high-contrast images even in low-light, and its utilitarian 8x magnification brings subjects close while maintaining 363' field of view to preserve situational awareness.
Complementing the optical performance are construction details made for the trail. The optical tubes are nitrogen-filled and O-ring sealed for fogproof performance and to make them submersible to as much as 3.3'. The binocular sports a generous 20mm eye relief and the fold-down eyecups seal against the ocular cavity to block stray peripheral light which can dim images.
- Optical Performance
-
- 8x magnification
- 40mm objective lenses
- BAK4 porro prism optical path
- Anti-reflection fully multicoated optics
- 331' field of view at 1000 yards
- 50° angle of view
- Use and Handling
-
- Closed bridge configuration
- Large knurled center focus wheel
- Right-eye diopter adjustment
- 20mm long eye relief, 5.0mm exit pupil
- Fold-down rubber eyecups seal against ocular cavity and block stray peripheral light
- Construction Details
-
- Rubberized armoring protects against impacts and provides slip-resistant grip
- Nitrogen-filled, fogproof and submersible to 3.3' (1m)
- Internal focusing system helps to maintain waterproof seals
- Tripod mountable with optional adapter
UPC: 027075288676
| Prism Type | Porro |
| Magnification | 8x |
| Objective Lens Diameter | 40mm |
| Angle of View | 6.3° (actual) |
| Field-of-View | 330.8' @ 1000 yd / 109.83 m @ 1000 m |
| Minimum Focus Distance | 11.6' / 3.54 m |
| Exit Pupil Diameter | 5.0 mm |
| Eye Relief | 20 mm |
| Interpupillary Adjustment | Not Specified By Manufacturer |
| Dioptric Correction | Not Specified By Manufacturer |
| Focus Type | Center |
| Tripod Mount | Yes (Adapter Optional) |
| Dimensions | 7.0 x 5.4 x 3.0" / 17.78 x 13.72 x 7.62 cm |
| Weight | 31.8 oz / 902 g |
| Packaging Info |
| Package Weight | 2.8 lb |
| Box Dimensions (LxWxH) | 8.5 x 7.3 x 4.0" |
In the Box
Pentax 8x40 S-Series SP WP Binocular
- Neck Strap
- Carrying Case with Strap
- 2 x Objective Lens Caps
- 2 x Eyepiece Caps
- Limited Lifetime Warranty
