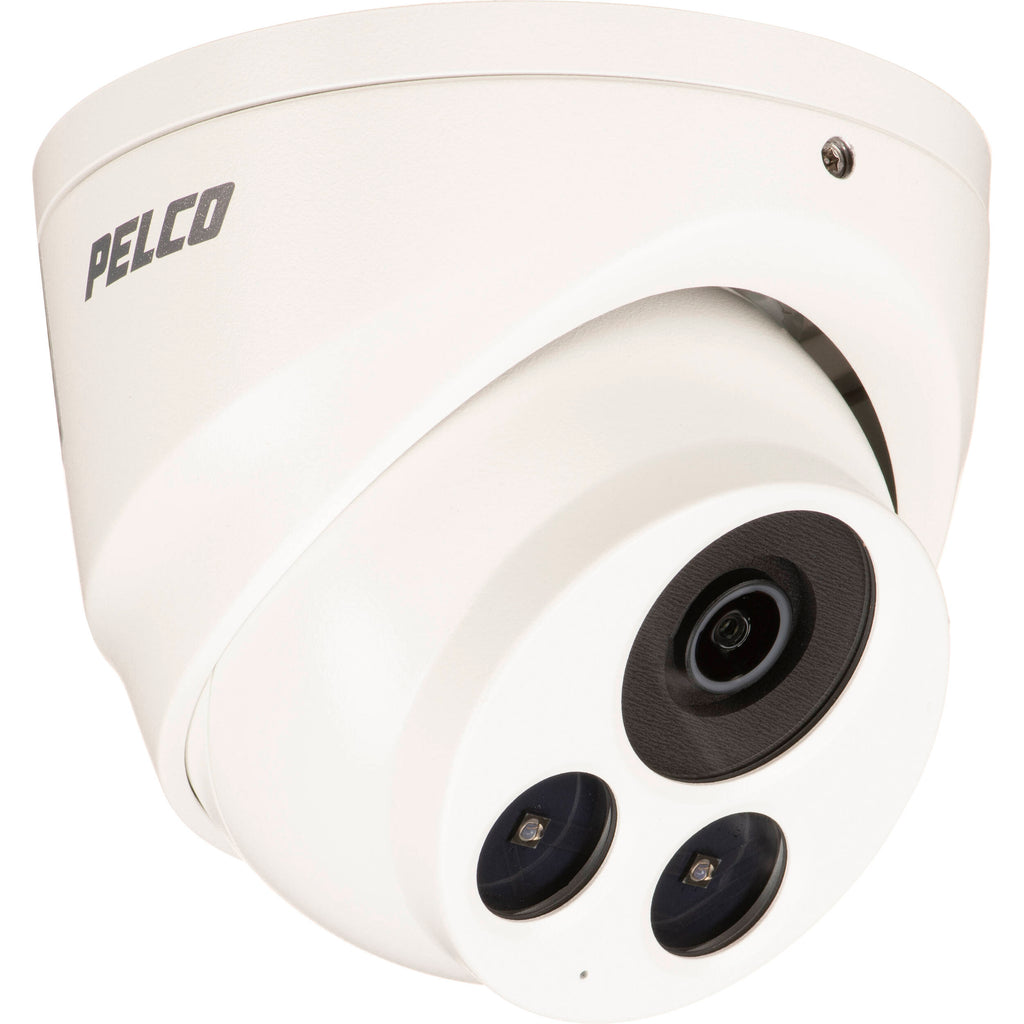

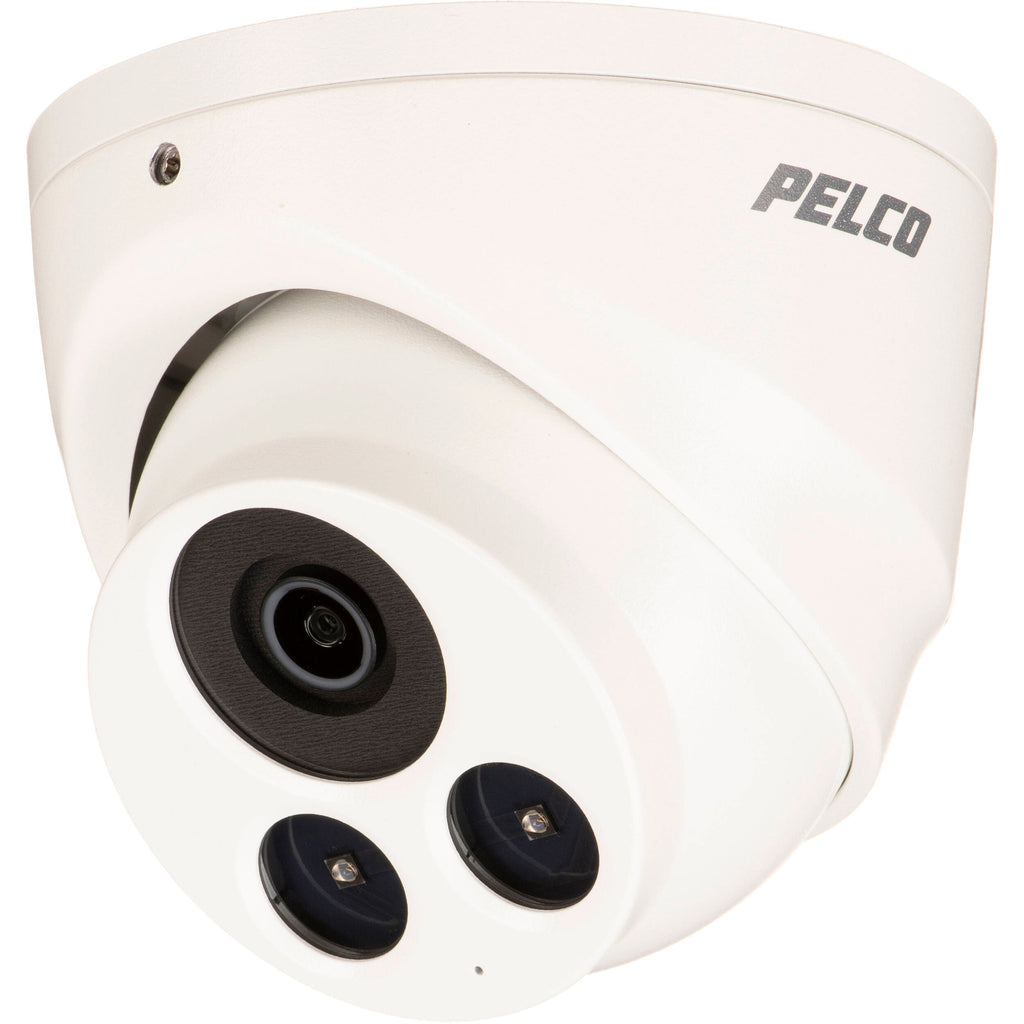

Pelco IFV222-1ERS Overview
Monitor an indoor or outdoor area with the Sarix Value Series IFV222-1ERS 2MP Network Turret Camera from Pelco. This unit uses a 1/2.9" progressive scan CMOS sensor to capture 1080p resolution video at 30 fps. Adaptive IR LEDs provide up to 98' of illumination in low-light conditions. The camera's 2.8mm fixed lens delivers a 109° horizontal field of view. A built-in microphone enables the camera to pick up audio from up to 16' away. An onboard memory card slot accepts microSD/SDHC/SDXC cards (available separately). Integrated PoE technology simplifies connectivity by transferring data and power over one cable.
This camera complies with ONVIF profiles G, S, and T, making it compatible with a wide range of surveillance devices. It is housed in an IP66- and IK10-rated aluminum enclosure for safe outdoor use in areas at risk of vandalism.
IR cut filter enables day and night functionality
H.265, H.264, and MJPEG video compressions
Three-axis angle adjustments (360° horizontal pivot, 70° vertical pivot, and 360° rotation)
Video title and time stamp overlay
Flip, mirror, and rotation video orientation
Image settings include: white balance, image adjustment (brightness, contrast, saturation, sharpness, gamma curve), defog, and 3D-DNR
Exposure modes include: BLC, HLC, exposure control (exposure level, exposure time, gain control), AE speed adjustment, 120 dB WDR, and privacy mask
Analytics include: simple motion detection, camera tampering detection, and audio detection
Live viewing for up to 10 clients
Compatible browsers include: Chrome, Firefox, and Edge
Compatible with VLC player
In the Box
- Pelco Sarix Value Series IFV222-1ERS 2MP Outdoor Network Turret Camera
- Alignment Sticker
- Screw Pack
- Cable Gland
- Limited 3-Year Manufacturer Warranty
Pelco IFV222-1ERS Specs
Camera
| Sensor |
2 MP 1/2.9" CMOS |
| Focal Length |
2.8mm |
| Maximum Aperture |
f/2 |
| Zoom |
Digital: 48x |
| Lens Field of View |
Horizontal: 109°
Vertical: 59°
Diagonal: 129° |
| IR Cut Filter |
Mechanical |
| Day/Night |
Yes |
| Minimum Illumination |
Color: 0.07 Lux |
| Shutter Speed |
1/32,000 to 1/5 Seconds |
| Camera Angle Adjustment |
Horizontal: 0 to 360°
Vertical: 0 to 70° |
Video
| Streaming Resolution |
1920 x 1080 at 30 fps |
| Supported Video Compression |
H.264, H.265, MJPEG |
| Multi-View Streaming |
Yes, 3 Streams |
Audio
| 1- or 2-Way Audio |
One-Way |
| Audio Formats |
G.711, G.726 |
| Built-In Mic |
Yes |
Networking
| Security |
Digest Authentication, HTTPS, IEEE 802.1X, Password Protection, User Access Log |
| Supported Protocols |
ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, NTP, PPPoE, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), SSL/TLS, TCP, UDP, UPnP |
System Integration
| Application Programming Interface (API) |
ONVIF Profiles G, S & T |
| Analytics |
Simple Motion Detection, Camera Tampering Detection, Audio Detection |
| OS Compatibility |
Windows 7 to 10
*As of November, 2022: Check with manufacturer for the most up-to-date compatibility |
Sensors & Alarms
| Event Trigger |
Yes |
| Event Action |
Recording, Notification, Alarm |
| Data Streaming |
Yes |
| Alarm I/O |
None |
Hardware
| Media/Memory Card Slot |
Single Slot: microSD/microSDHC/microSDXC |
| External Storage Options |
NAS |
Power
| Power Source |
PoE 802.3af (15 W) |
| Power Consumption |
6 W |
Environmental
| Operating Temperature |
-4 to 140°F / -20 to 60°C |
| Startup Temperature |
14 to 140°F / -10 to 60°C |
| Operating Humidity |
90% |
| IP Rating |
IP66 |
| IK Rating |
IK10 |
General
| Inputs/Outputs |
1 x RJ45 |
| Illumination |
IR LEDs up to 98.4' / 30 m |
| Video Management Software |
VideoXpert VMS |
| Material of Construction |
Aluminum |
| Dimensions |
ø: 4.1 x H: 3.2" / ø: 105.0 x H: 82.5 mm |
| Weight |
1 lb / 475 g |
Packaging Info
| Package Weight |
1.77 lb |
| Box Dimensions (LxWxH) |
7.6 x 7.4 x 6.1" |
