Description
Peavey PVXp 15 Overview
- 1Description
- 2At a Glance
- 3Modes
- 4Location
- 5EQ Profiles
Designed to deliver professional-quality audio, the 15" Peavey PVXp 15 Bluetooth is a highly flexible, easy to use, 980W powered portable PA speaker for today's working musicians, singer/songwriters, mobile DJs, and other sound providers. The speaker works in a variety of orientations and configurations for use as a main PA or stage monitor. The built-in Bluetooth module allows for streaming and app control for dialing in your best sound wirelessly from anywhere in the room.

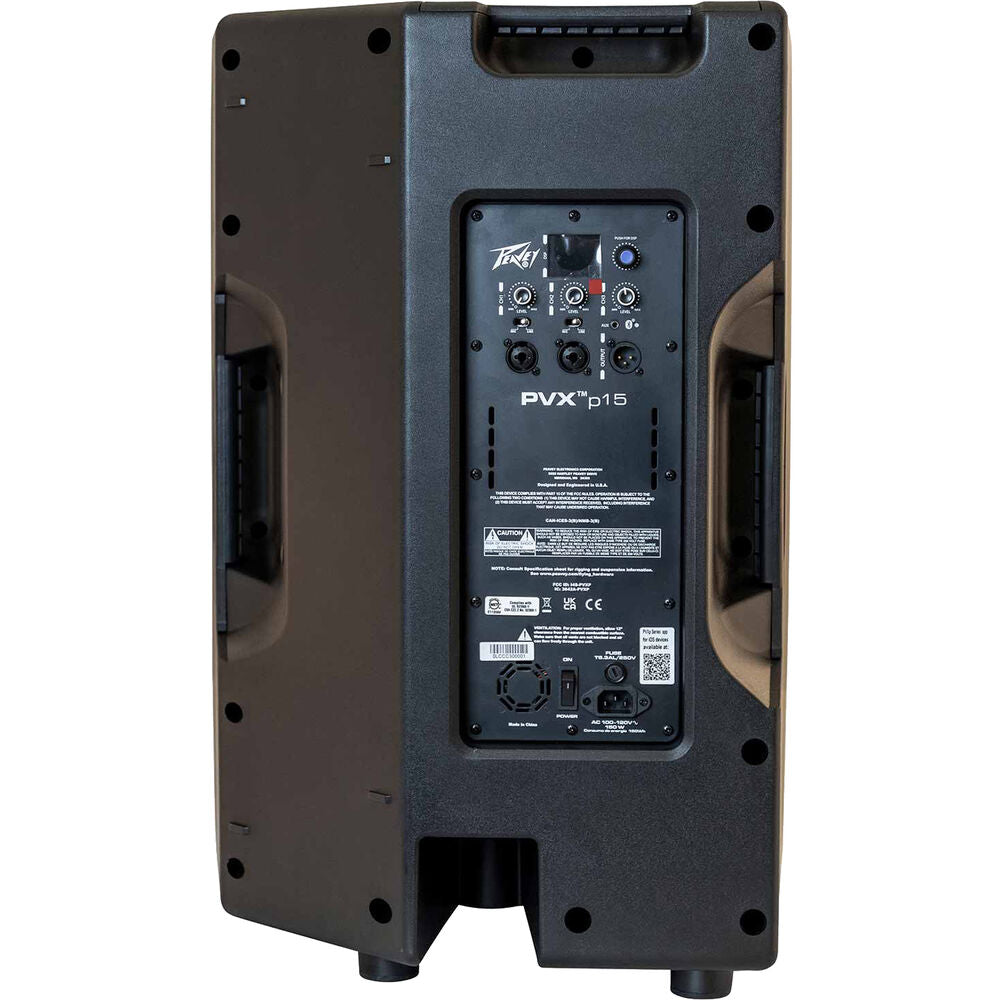

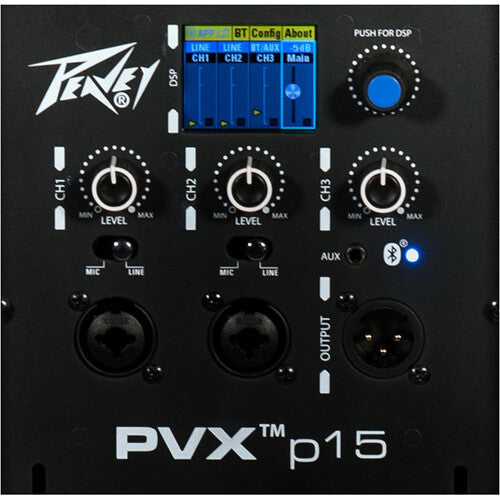

The rear panel features two combo XLR-1/4" inputs and a 3.5mm aux input. Stream audio from your favorite device to the Bluetooth input on channel 3 of the mixer. An XLR output offers a mix output of all channels or a thru output from channel one. The built-in LCD display and push-button data wheel allow you to select and program the internal DSP for locations, modes, and other functions. The 980W amplifier delivers 840W to the 15" woofer and 140W to the compression driver, which combine for a frequency response of 59 Hz to 20 kHz and an SPL of 127 dB. The PVXp 15 Bluetooth features 16 fly points and includes a power cord.
At a Glance
- Two-way, bi-amped sound reinforcement enclosure
- 15� heavy-duty woofer with 2-3/8� voice coil and 50 oz magnet
- RX14 compression driver, with 1.4" titanium diaphragm
- Reliable fan-cooled power amps with DSP protection
- Total of 980W peak dynamic power
- DSP control for precise crossover, EQ, and limiting functions
- DSP I/O is at 48 kHz and 24-bit, internal processing is 56-bit double-precision
- Peavey�s Quadratic Throat Waveguide technology, 100x50° coverage
- Asymmetrical horn aims the sound down 10° at the audience, not over their heads
- Bluetooth input is via a dedicated input channel
- Analog input is via a combo female XLR-1/4� TRS jack with balanced input
- Three channels in total, two for analog, and one for Bluetooth or AUX input via a 3.5mm jack
- Each channel has a level control and a 3-band EQ section to adjust and shape the input signals
- Mix/Thru Output is via a male XLR jack
- Durable plastic injection-molded trapezoidal enclosure
- Extra angled section on right side allows floor monitor use
- Full-coverage, heavy-duty perforated steel grilles, with powder coat finish
- Pole mount molded-in for 1-3/8� diameter poles
- Top, bottom, and right side flying point inserts
Modes
- Normal: Provides the flattest frequency response
- Live: Provides a slight boost at the frequency extremes and some midrange EQ
- Club: Provides more boosts at the frequency extremes, with the emphasis on some extra bass, and with some upper midrange EQ
- Speech: Rolls off the frequency extremes, and provides a boost in the presence range for improved vocal intelligibility
Location
- Pole: Provides slight bass boost to compensate for the speaker system being away from any boundaries such as a wall or corner. It assumes that the speaker system is at least 6 feet or more off the ground on a pole or stand
- Bracket: For nominal wall placement of the speaker system. This location setting provides a nominally flat response in the bass under anechoic conditions. This combined with the Normal mode Preset provides the very flattest response the speaker is capable of
- Monitor: Corrects for the bass boost that floor placement provides, by slightly reducing the overall bass level to compensate
EQ Profiles
The three location settings along with the four Presets provide for 12 different EQ profiles that are repeatable and precise. These coupled with the Channel EQ (Low, Mid, and High band EQ) provide for thousands of repeatable and precise EQ settings available to the end user.
UPC: 014367672220
In the Box
- Peavey PVXp 15 Bluetooth 15" 980W Powered Loudspeaker
- Power Cord
- Limited 2-Year on Speaker Enclosure
Table of Contents
- Description
- At a Glance
- Modes
- Location
- EQ Profiles
Peavey PVXp 15 Specs
| Configuration | Active 2-Way |
| Enclosure Type | Bass-Reflex Loudspeaker |
| Total Power Capacity | 980 W Peak |
| Amplifier Power Rating | LF: 1 x 840 W Peak HF: 1 x 140 W Peak |
Drivers
| HF Driver | 1 x 1.4" / 35.6 mm Asymmetrical Horn Compression Driver |
| MF Driver | None |
| LF Driver | 1 x 15" / 381 mm Woofer |
| LF Voice Coil | 2.38" / 60.45 mm |
| Magnet | 50 oz / 1.4 kg |
Performance
| Frequency Range | 52 Hz to 20 kHz -10 dB (Half-Space) |
| Frequency Response | 59 Hz to 20 kHz ±3 dB |
| Maximum SPL | 127 dB (Peak) |
| Coverage Angle | 100° H x 50° V (Asymmetrical Horn Down) |
| Speaker Sensitivity | 97 dB |
| THD | <0.5% |
| Protections | Infrasonic, Output Limiter |
Connectivity
| Audio I/O | 2 x Combo XLR-1/4" 3-Pin Female Balanced/Unbalanced Mic/Line Input 1 x 1/8" / 3.5 mm TRS Female Unbalanced Line Input 1 x XLR 3-Pin Male Balanced Line Thru/Output |
| Network I/O | None |
| USB | None |
| Wireless Connectivity | Bluetooth |
| Wireless Range | 32.8' / 10 m |
Signal Processing
| Crossover | 1.8 kHz |
| EQ | Yes |
| Parametric EQ | None |
| Semi-Parametric EQ | None |
| Filters | High-Pass , 48 dB/Octave |
| Dynamic Processing | Compression, Limiter |
| Alignment Delay | 29 ms |
| Phase Adjustment | None |
| Digital Signal Processing | 24-Bit DSP: User Settings, Venue Settings |
| Maximum Sampling Rate | 48 kHz / 24-Bit |
Power
| AC Input Power | 100 to 120 VAC, 50 / 60 Hz |
| AC Power I/O | 1 x IEC Input |
| Power Consumption | 150 W |
Physical

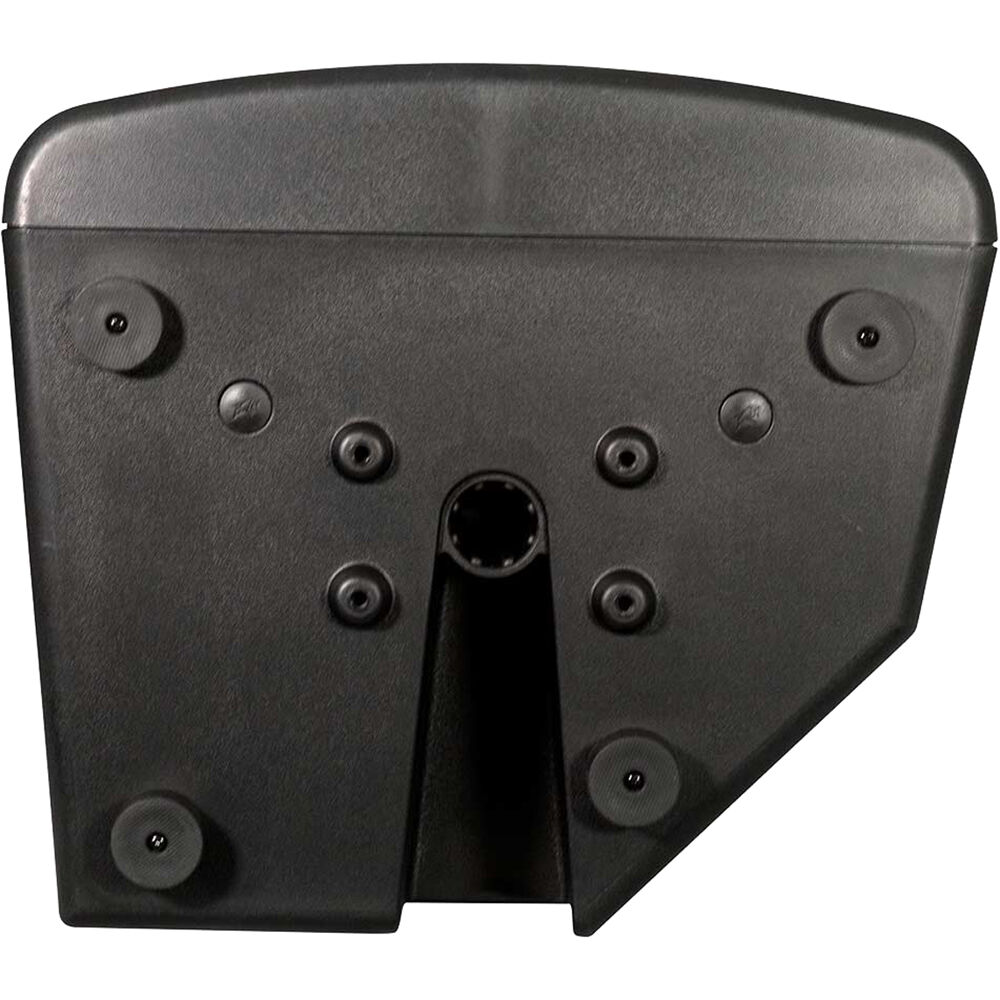

| Mounting | 4 x M10 Fly Point (Bottom, Top) 12 x M8 Fly Point (Bottom, Side, Top) 1 x Pole Socket (Bottom) |
| Handles | 1 x Top 1 x Each Side |
| Cooling | Fan |
| Construction Material | Metal Grille, Plastic |
| Dimensions | 28.3 x 18.9 x 18.7" / 71.9 x 48 x 47.5 cm |
| Weight | 50 lb / 22.7 kg |
Packaging Info
| Package Weight | 61 lb |
| Box Dimensions (LxWxH) | 31 x 22 x 20.5" |
