Pearstone CAT7-S01B Overview
-
1Description
-
2Gold-Plated Connectors
-
310 Gigabit Ethernet Compatibility
-
4Isolated Twisted-Pair Construction
-
5Molded Snagless Boot
-
6Double Shielding

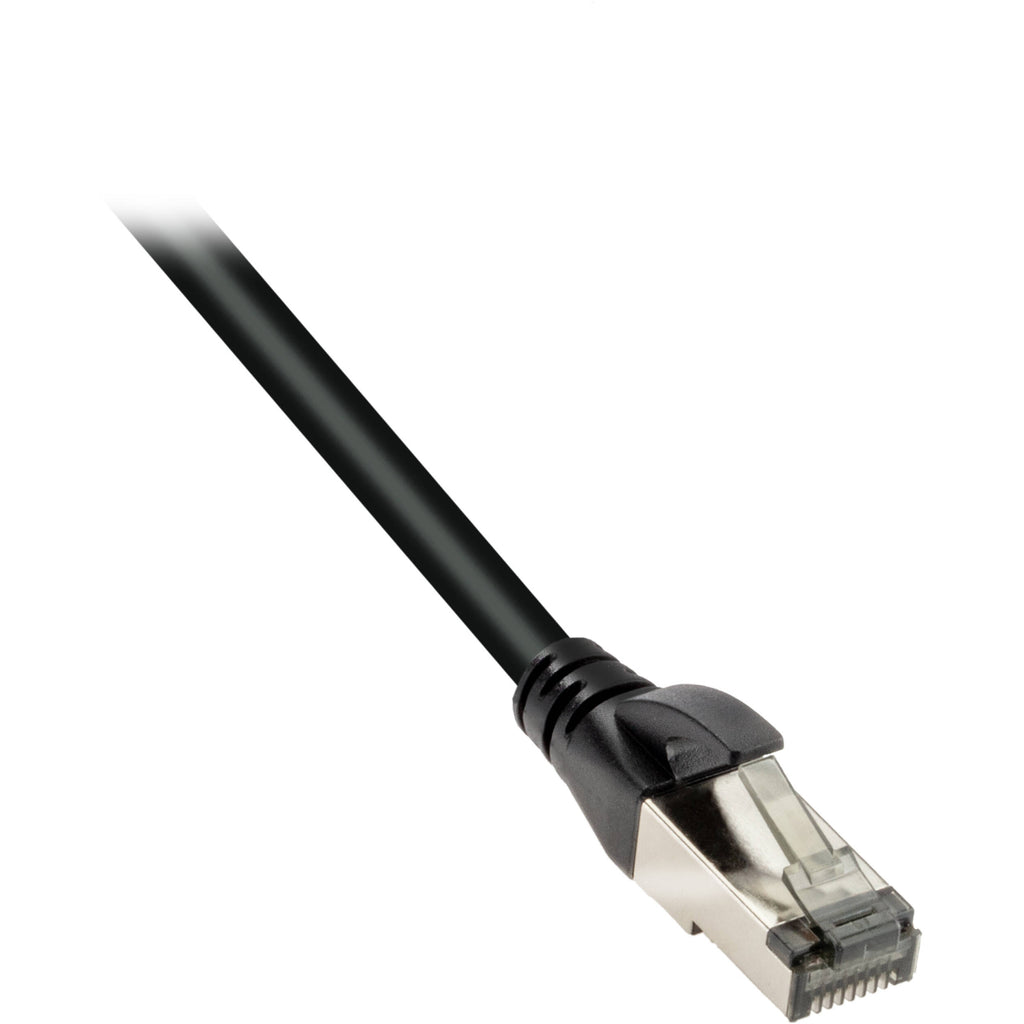

Expand your office, business, or network with fast and reliable links with the 1' Pearstone Cat 7 Double-Shielded Ethernet Patch Cable. Available with a black PVC jacket for easy identification, this slim yet durable commercial-grade cable features a 600 MHz transmission speed that supports 10 Gigabit Ethernet networks. Additionally, each twisted pair of bare copper conductors is shielded with an aluminum-mylar wrap while all four pairs are covered by an aluminum braid, which helps to minimize crosstalk while protecting your data transmissions against electromagnetic interference from nearby devices and electrical equipment. The gold-plated RJ45 connectors provide high conductivity and resist corrosion while the molded snagless boot design helps to prevent them from getting caught on other cables, even in dense installations.

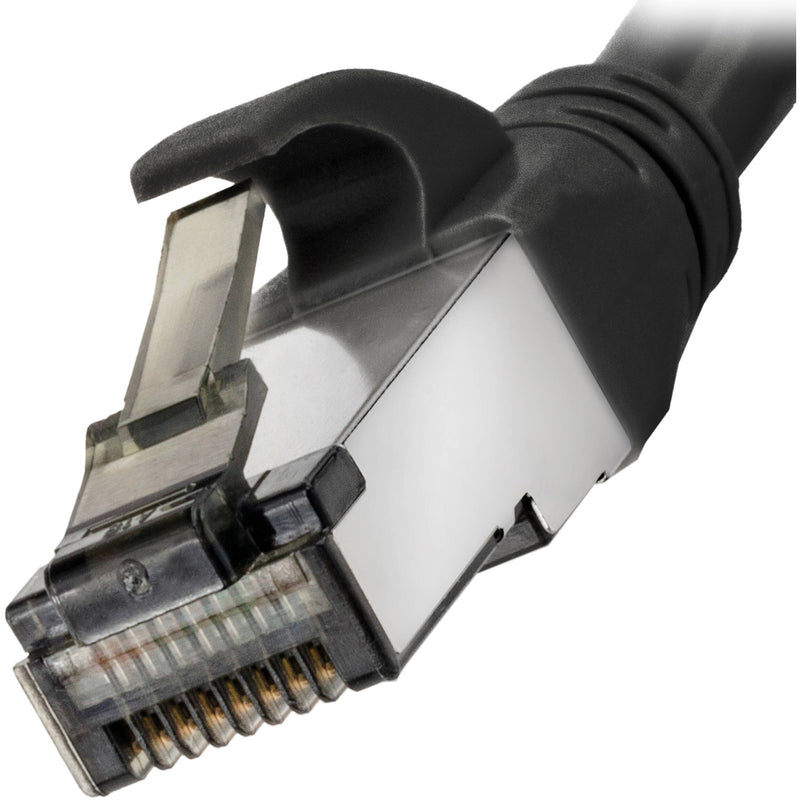

The gold-plated RJ45 connectors help to ensure maximum performance while resisting corrosion, thereby extending the cable's life.
10 Gigabit Ethernet Compatibility
Supporting a 600 MHz transmission speed, this Cat 7 cable is ideal for 10G Ethernet networks. It is also backward compatible and using this cable with lower speed networks allows you to scale up your network when you're ready without having to replace the wiring.
Isolated Twisted-Pair Construction
This 26 AWG cable features bare copper conductors that are tightly twisted to help reduce crosstalk and minimize both RF and EM interference.

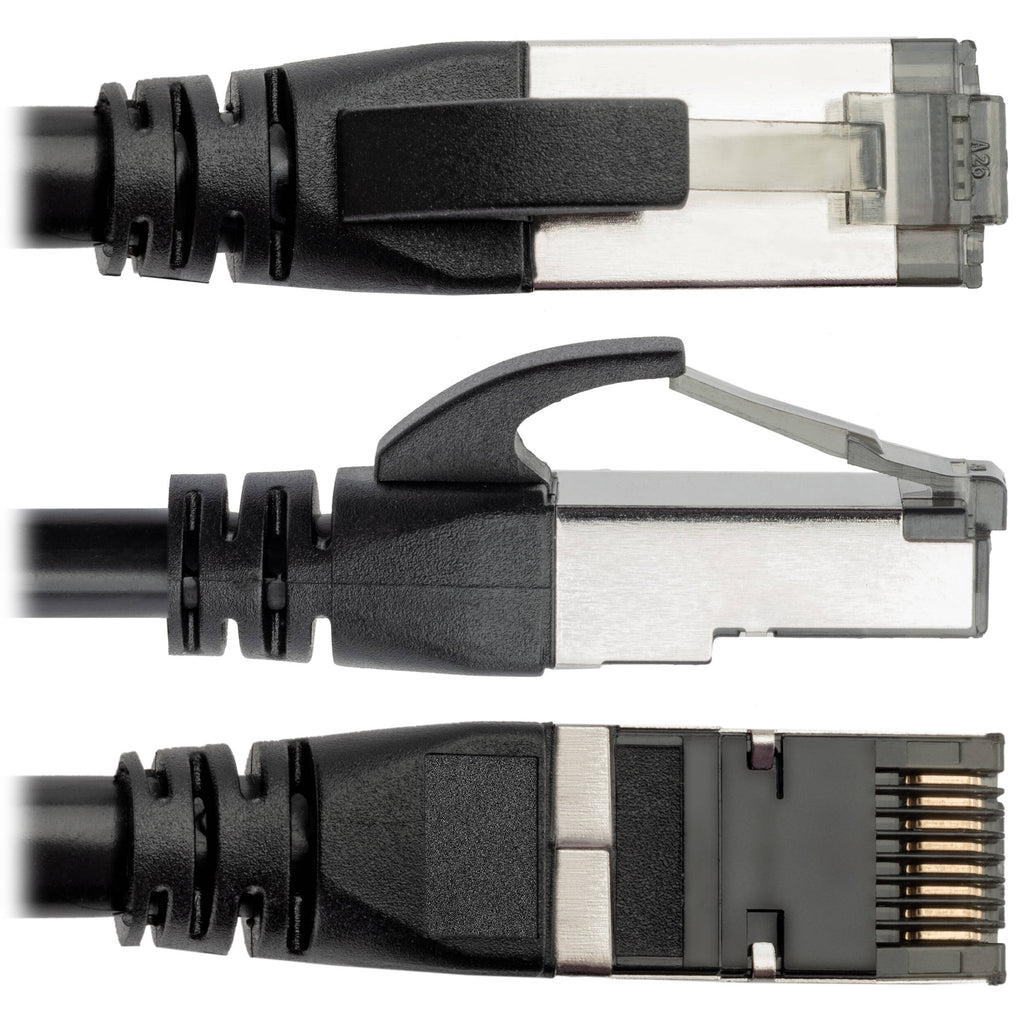

Avoid the frustration of getting your RJ45 connectors caught on other cables and objects, especially in packed rackmount installations. The Pearstone Cat7 Ethernet Patch cable has a molded boot that covers the gab, allowing you to easily unplug it from the switch.
By shielding each twisted pair with an aluminum-mylar wrap, and all four pairs with an aluminum braid, this cable helps to significantly reduce crosstalk, radio frequency, and electromagnetic emissions to deliver optimal data transfer speeds. Each connector is also shielded, providing you with protection at all points of the cable.
Table of Contents
- Description
- Gold-Plated Connectors
- 10 Gigabit Ethernet Compatibility
- Isolated Twisted-Pair Construction
- Molded Snagless Boot
- Double Shielding
Pearstone CAT7-S01B Specs
General
| Cable Length |
1' / 0.3 m |
| Ethernet Standards |
Cat 7 |
| Connector 1 |
RJ45 Male |
| Connector 2 |
RJ45 Male |
| Compatibility |
10GbE |
Electrical
| Bandwidth Rating |
600 MHz |
| Conductor DC Resistance |
15.2 Ohms/ft (Up to 328.1' / 100 m) |
| Capacitance |
5600 pF/ft |
| Impedance |
100 Ohms |
Physical
| Shielding |
Aluminum-Mylar Wrap
Aluminum Braid |
| Cable Configuration |
Stranded |
| Pin Assignment |
T568B |
| Boot Type |
Snagless |
| Outer Diameter |
0.2" / 6 mm |
| Wire Gauge |
26 AWG |
| Jacket Type |
Polyvinyl Chloride (PVC) |
| Conductor |
Bare Copper |
| Contact Plating |
Gold |
| Insulation |
FMPE |
| Certifications |
CE, REACH, RoHS, UL
*as per Manufacturer |
Packaging Info
| Package Weight |
0.07 lb |
| Box Dimensions (LxWxH) |
7 x 6.65 x 0.7" |
