Pearstone CAT6-S10B Overview
-
1Description
-
2Gold-Plated RJ45 Connectors
-
3Gigabit Compatibility
-
4Twisted-Pair Construction
-
5Molded Snagless Boot
-
6Flexible and Durable
-
7Color Variety

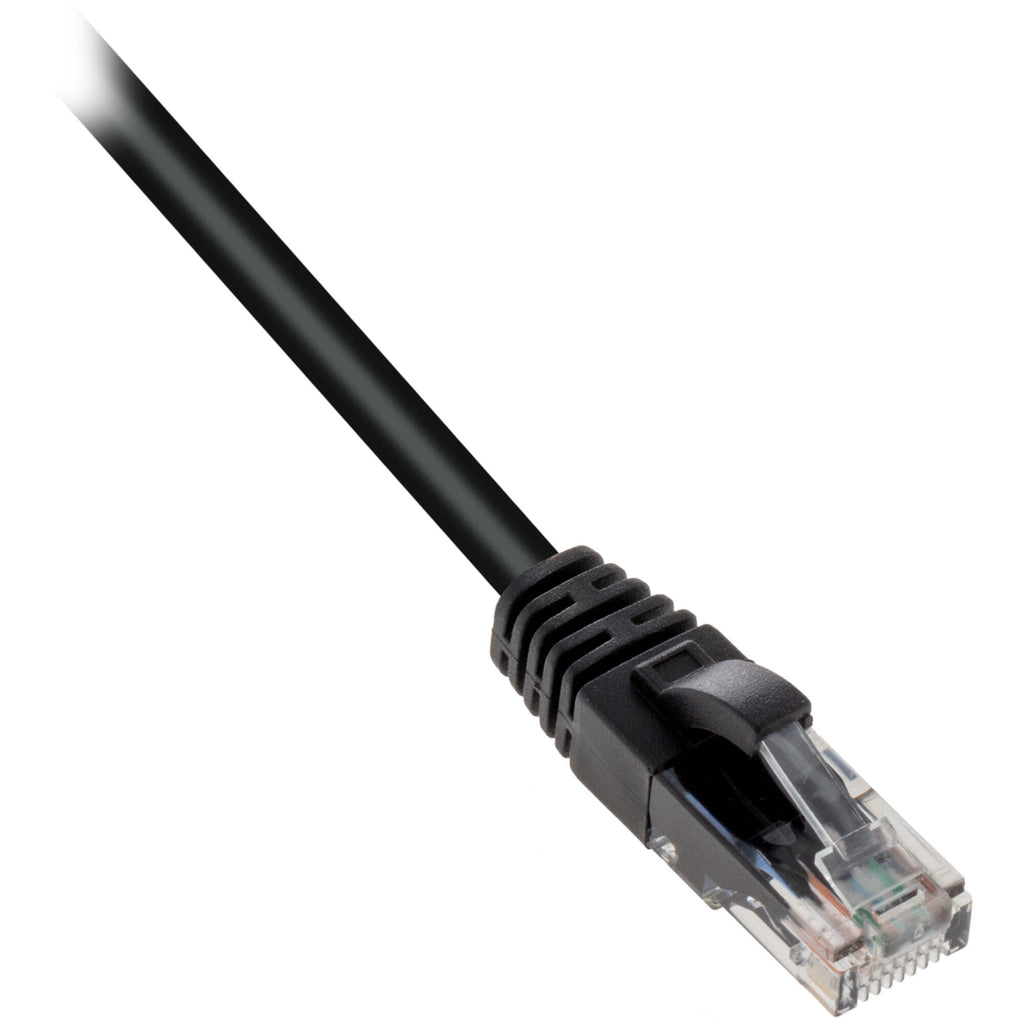

Enjoy high-speed and reliable data links with the 10' Pearstone Cat 6 Snagless Network Patch Cable. Designed with a durable and flexible black PVC jacket for easy identification, this Cat 6 cable features a 550 MHz bandwidth rating, supporting up to 10 Gigabit Ethernet (10GbE) connections between computers, servers, switches, and other network equipment. Its corrosion-resistant, gold-plated RJ45 connectors help to ensure high conductivity while the molded, snagless boot allows you to easily disconnect the cables when needed. Additionally, the bare copper twisted pair construction minimizes RF and EM interference from nearby electronics while an internal nylon spline reduces crosstalk to help ensure clean and reliable data transmissions.

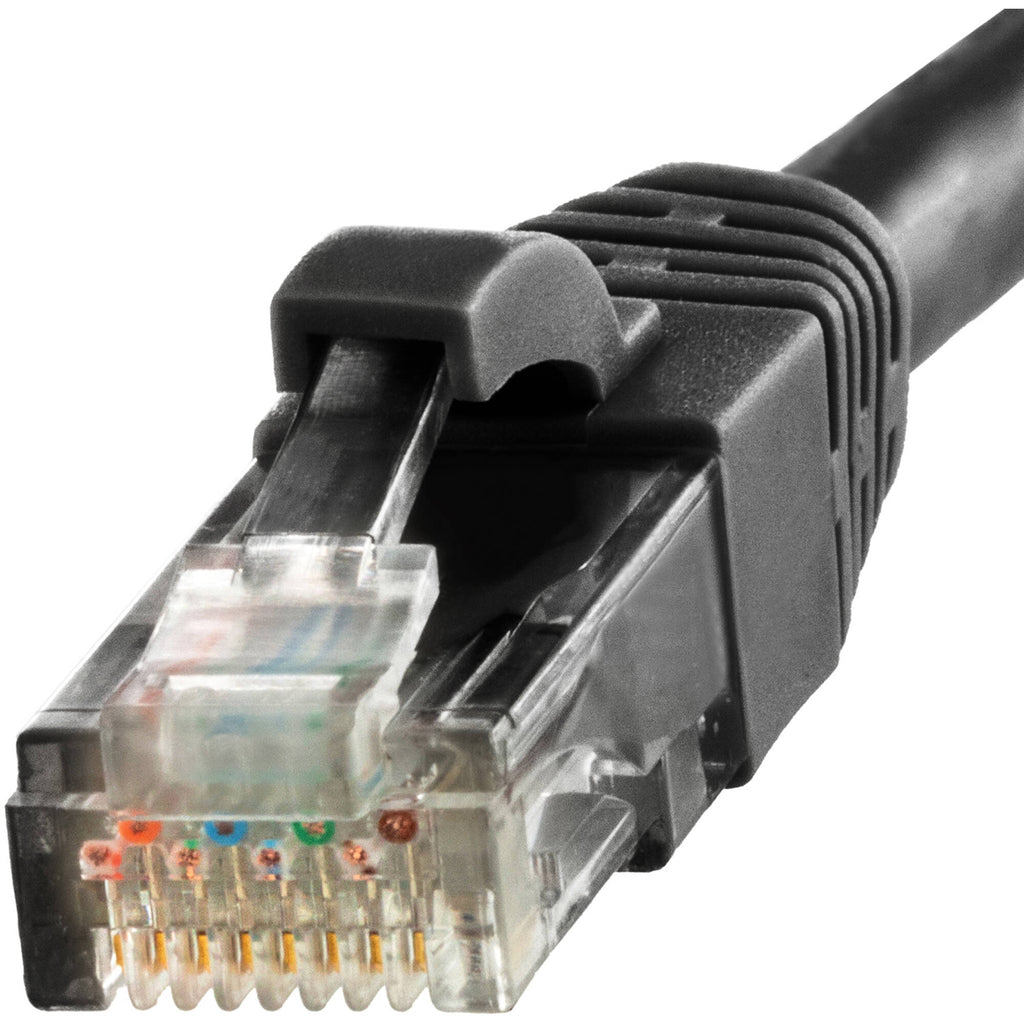

Gold-Plated RJ45 Connectors
Gold plating helps to ensure fast and reliable connections by enhancing conductivity. It also adds corrosion resistance to the RJ45 connectors for a longer lifespan.
Supporting 550 MHz transmission speeds, this Cat 6 cable is ideal for 10 Gigabit Ethernet networks.
Twisted-Pair Construction
This 24 AWG cable features bare copper conductors that are tightly twisted together to minimize RF and EM interference along with near-end crosstalk that can potentially slow down your network speeds. An internal nylon spline separates and isolates the four twisted pairs to further reduce interference while enhancing performance for data intensive applications such as video streaming.

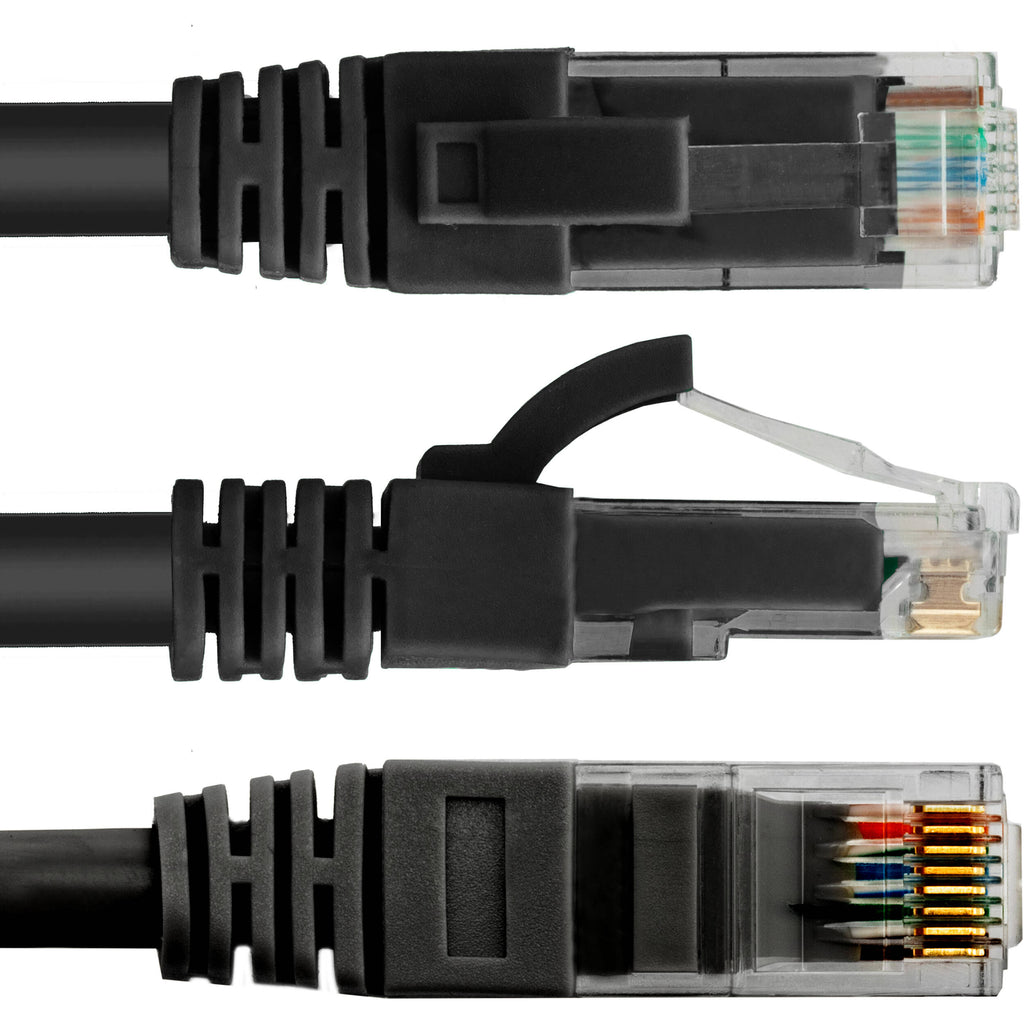

Avoid the frustration of getting RJ45 release tabs caught on other cables. The Ferrari-style molded boot protects the tab, allowing you to unplug the cable without snags.
The stranded bare copper design provides high flexibility, allowing you to fit this cable into a variety of installation configurations. Its durable CM-PVC jacket is designed to withstand wear and tear in demanding environments.
A wide color selection allows you to quickly identify and organize your cables for easy link tracing, equipment upgrades, and troubleshooting.
Table of Contents
- Description
- Gold-Plated RJ45 Connectors
- Gigabit Compatibility
- Twisted-Pair Construction
- Molded Snagless Boot
- Flexible and Durable
- Color Variety
Pearstone CAT6-S10B Specs
General
| Cable Length |
10' / 3 m |
| Ethernet Standards |
Cat 6 |
| Connector 1 |
RJ45 Male |
| Connector 2 |
RJ45 Male |
| Compatibility |
10GbE |
Electrical
| Bandwidth Rating |
550 MHz |
| Conductor DC Resistance |
9.58 Ohms/ft (Up to 328.1' / 100 m) |
| Capacitance |
5600 pF/ft |
| Impedance |
100 Ohms |
Physical
| Shielding |
None |
| Cable Configuration |
Stranded |
| Pin Assignment |
T568B |
| Boot Type |
Snagless |
| Outer Diameter |
0.2" / 6 mm |
| Wire Gauge |
24 AWG |
| Jacket Type |
Polyvinyl Chloride (PVC) |
| Conductor |
Bare Copper |
| Contact Plating |
Gold |
| Insulation |
HDPE |
| Certifications |
RoHS, EIA568B, UL
*as per Manufacturer |
Packaging Info
| Package Weight |
0.295 lb |
| Box Dimensions (LxWxH) |
6.45 x 6.45 x 1.15" |
