Pearstone CAT5-S03GR Overview
-
1Description
-
2Gold-Plated RJ45 Connectors
-
3Gigabit Compatibility
-
4Twisted-Pair Construction
-
5Molded Snagless Boot
-
6Flexible and Durable
-
7Color Variety

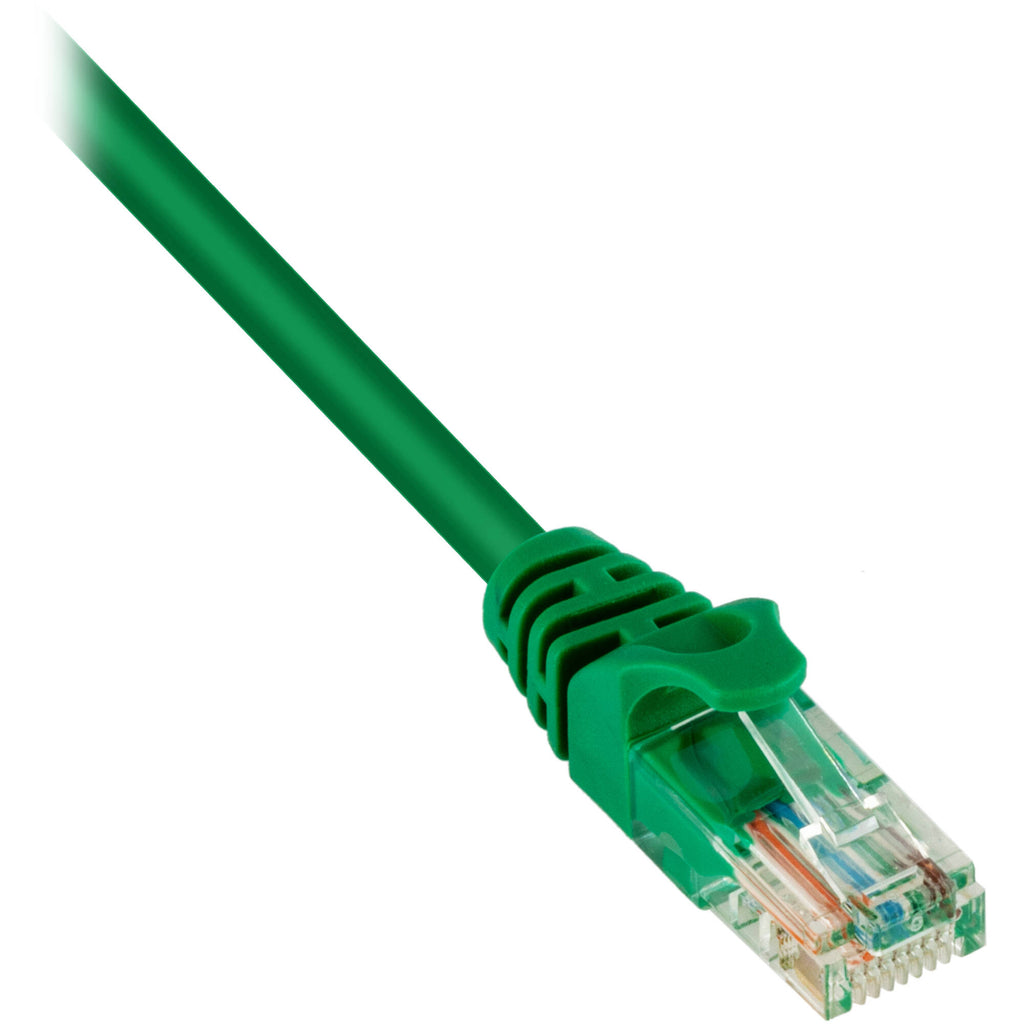

Enjoy high-speed and reliable data links with the 3' Pearstone Cat 5e Snagless Network Patch Cable. Designed with a durable and flexible green PVC jacket for easy identification, this Cat 5e cable features a 350 MHz bandwidth rating, supporting up to gigabit connections between computers, servers, switches, and other network equipment. Its corrosion-resistant, gold-plated RJ45 connectors help to ensure high conductivity while the molded, snagless boot allows you to easily disconnect the cables when needed. Additionally, the bare copper twisted pair construction minimizes RF and EM interference from nearby electronics while reducing crosstalk to help ensure clean and reliable data transmissions.

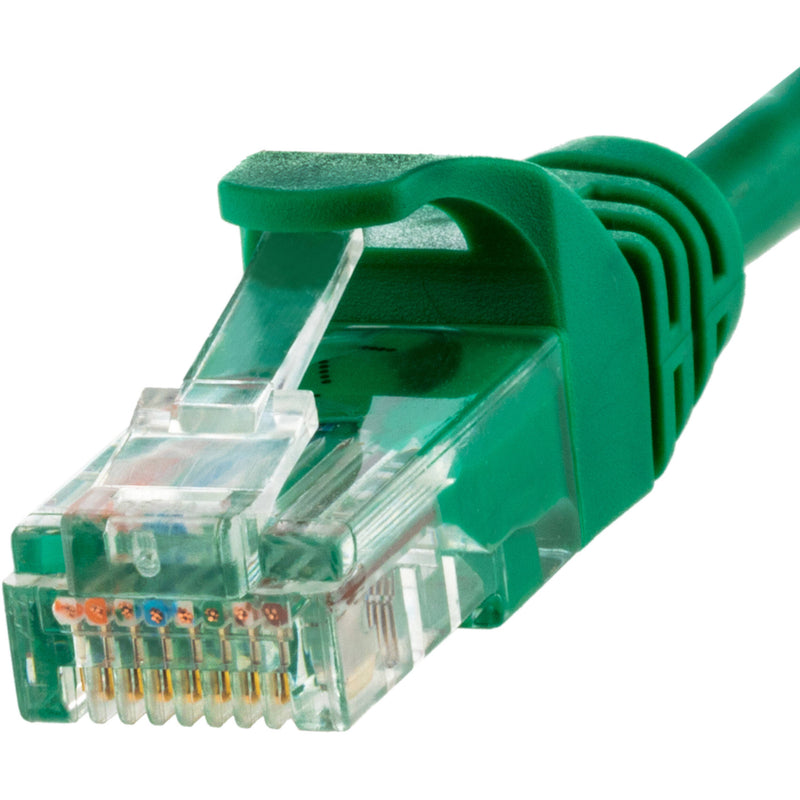

Gold-Plated RJ45 Connectors
Gold plating helps to ensure fast and reliable connections by enhancing conductivity. It also adds corrosion resistance to the RJ45 connectors for a longer lifespan.
Supporting 350 MHz transmission speeds, this Cat 5e cable is ideal for gigabit networks.
Twisted-Pair Construction
This 24 AWG cable features bare copper conductors that are tightly twisted together to minimize RF and EM interference along with near-end crosstalk that can potentially slow down your network speeds.

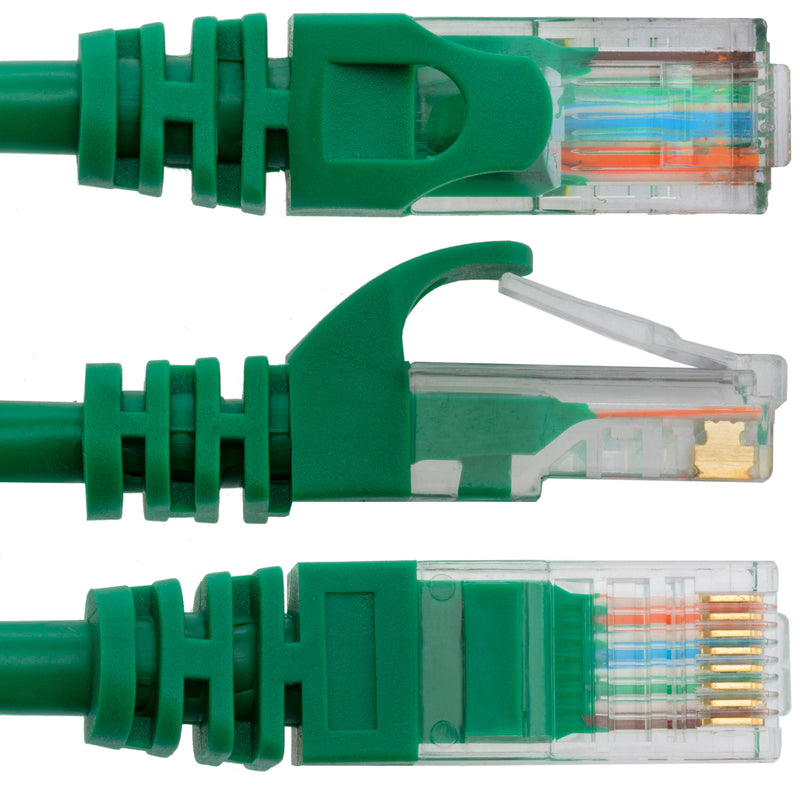

Avoid the frustration of getting RJ45 release tabs caught on other cables. The Ferrari style molded boot protects the tab, allowing you to unplug the cable without snags.
The stranded bare copper design provides high flexibility, allowing you to fit this cable into a variety of installation configurations. Its durable CM-PVC jacket is designed to withstand wear and tear in demanding environments.
A wide color selection allows you to quickly identify and organize your cables for easy link tracing, equipment upgrades, and troubleshooting.
In the Box
- Pearstone Cat 5e Snagless Network Patch Cable (Green, 3')
- Limited 1-Year Manufacturer Warranty
Table of Contents
- Description
- Gold-Plated RJ45 Connectors
- Gigabit Compatibility
- Twisted-Pair Construction
- Molded Snagless Boot
- Flexible and Durable
- Color Variety
Pearstone CAT5-S03GR Specs
General
| Cable Length |
3' / 0.9 m |
| Ethernet Standards |
Cat 5e |
| Connector 1 |
RJ45 Male |
| Connector 2 |
RJ45 Male |
| Compatibility |
10/100/1000 Base-T |
Electrical
| Bandwidth Rating |
350 MHz |
| Conductor DC Resistance |
9.58 Ohms/ft (Up to 328.1' / 100 m) |
| Impedance |
100 Ohms |
Physical
| Shielding |
None |
| Cable Configuration |
Stranded |
| Pin Assignment |
T568B |
| Boot Type |
Snagless |
| Outer Diameter |
0.2" / 5.3 mm |
| Wire Gauge |
24 AWG |
| Jacket Type |
Polyvinyl Chloride (PVC) |
| Conductor |
Bare Copper |
| Connector Material |
Plastic |
| Contact Material |
Copper |
| Contact Plating |
Gold |
| Insulation |
HDPE |
| Environmental Protection |
None |
| Certifications |
RoHS, EIA568B, UL
*as per Manufacturer |
Packaging Info
| Package Weight |
0.095 lb |
| Box Dimensions (LxWxH) |
6.65 x 6.2 x 1" |
