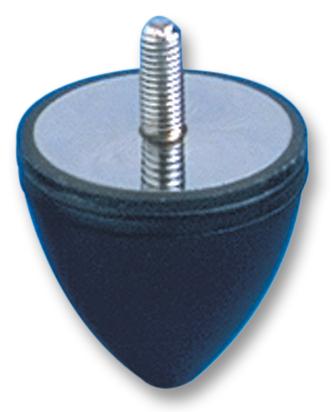

The 512301 is a Conical Progressive Stop features highly deformable allowing high energies to be absorbed and progressive absorption of energy due to the carefully designed shape. By comparison with rigid stops, PAULSTRA elastic stops are quiet and avoid hammering and deterioration of equipment. The stops must be fitted so that, on impact, the axis of the stop is perpendicular to the contact surface. On impact, the external diameter of the stop increases (this must be allowed for when fixing).
- M6 Thread
- 6 joules Repetitive shock energy
- 18 joules Exceptional shock energy
- 15mm Deflection
- 140daN Reaction
Applications
Industrial
Product details
| External Depth |
30mm |
| Bore Diameter Nom |
- |
| External Diameter |
30mm |
| Weight |
30g |
| Product Range |
- |
Other details
| Brand |
PAULSTRA |
| Part Number |
512301 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
