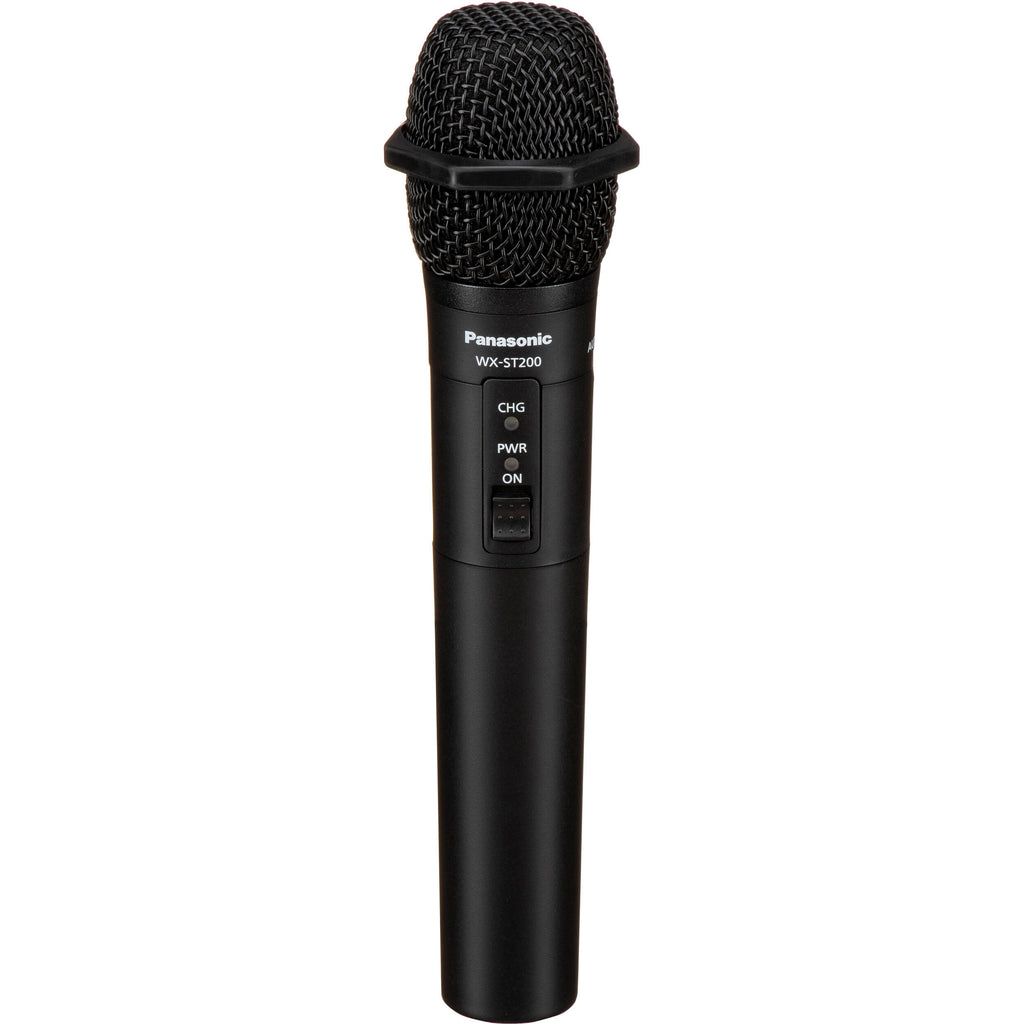

Panasonic WX-ST200 Overview
The Panasonic WX-ST200 is a handheld wireless microphone transmitter compatible with WX-SR receivers (available separately), featuring a lightweight and rugged design built to withstand frequent use in classrooms, conference centers, and event spaces. It comes equipped with an electret-condenser capsule, offering a cardioid polar pattern that minimizes background noise and feedback.
The WX-ST200 is comfortable for instructors and presenters to hold and provides between 6 and 8 hours of continuous use with a single AA battery. A power switch is provided, and the unit automatically syncs to a compatible receiver, making set up quick and easy. A smart touch is the 3.5mm input jack that lets you plug in a wide variety of sources, including laptops and mobile devices, and transmit the source signal wirelessly to the receiver.
- Panasonic proprietary filtering to eliminate noise
- Clear and intelligible sound quality with a flat frequency response
- Cardioid polar pattern picks up less background sound
- Engineered to withstand the classroom environment
- Lightweight yet durable
- Runs for 6 to 8 hours on a single AA battery
- DECT wireless technology transmits in the 1.9 GHz range, far from cell phone and Wi-Fi interference
- Up to 131' operating range
- Pairs wirelessly with Panasonic's WX-SR202 receiver and assigns channels automatically, eliminating the need for manual channel assignment and making set up easy

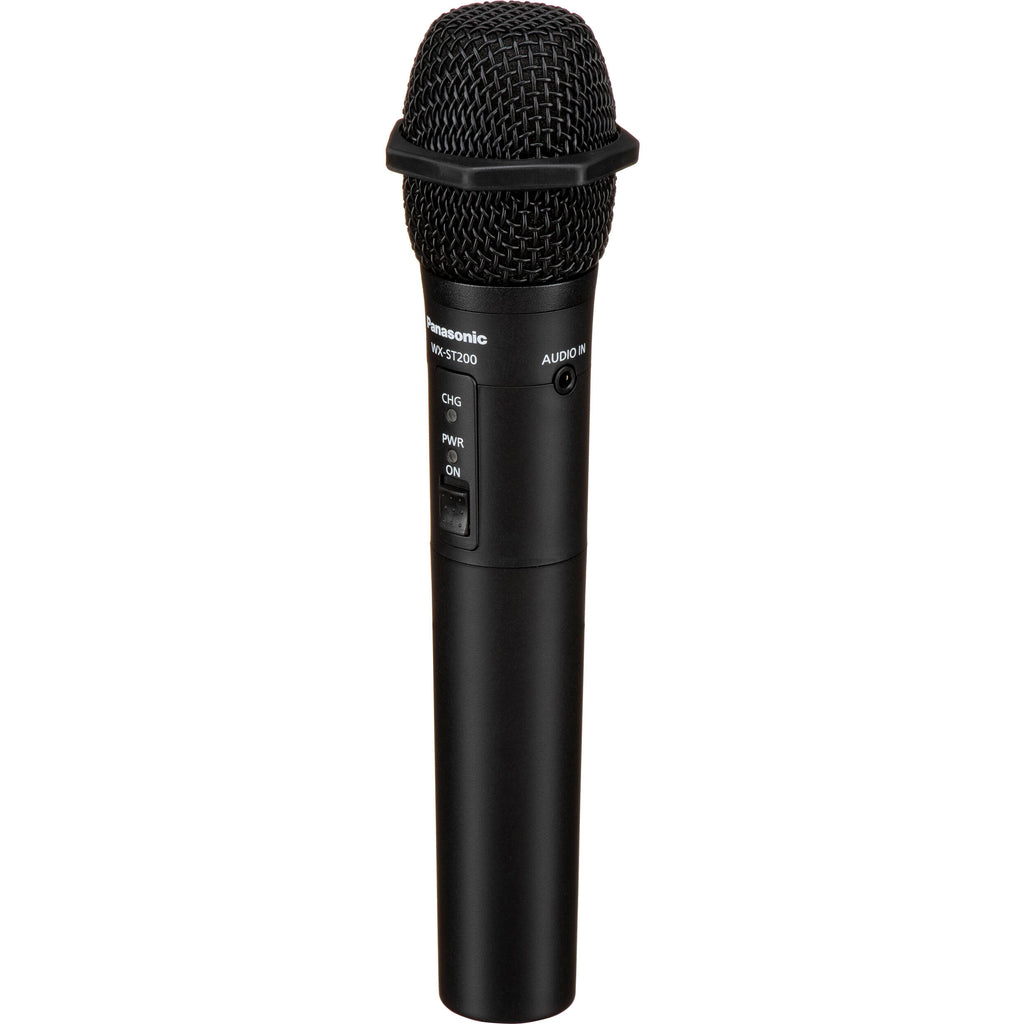

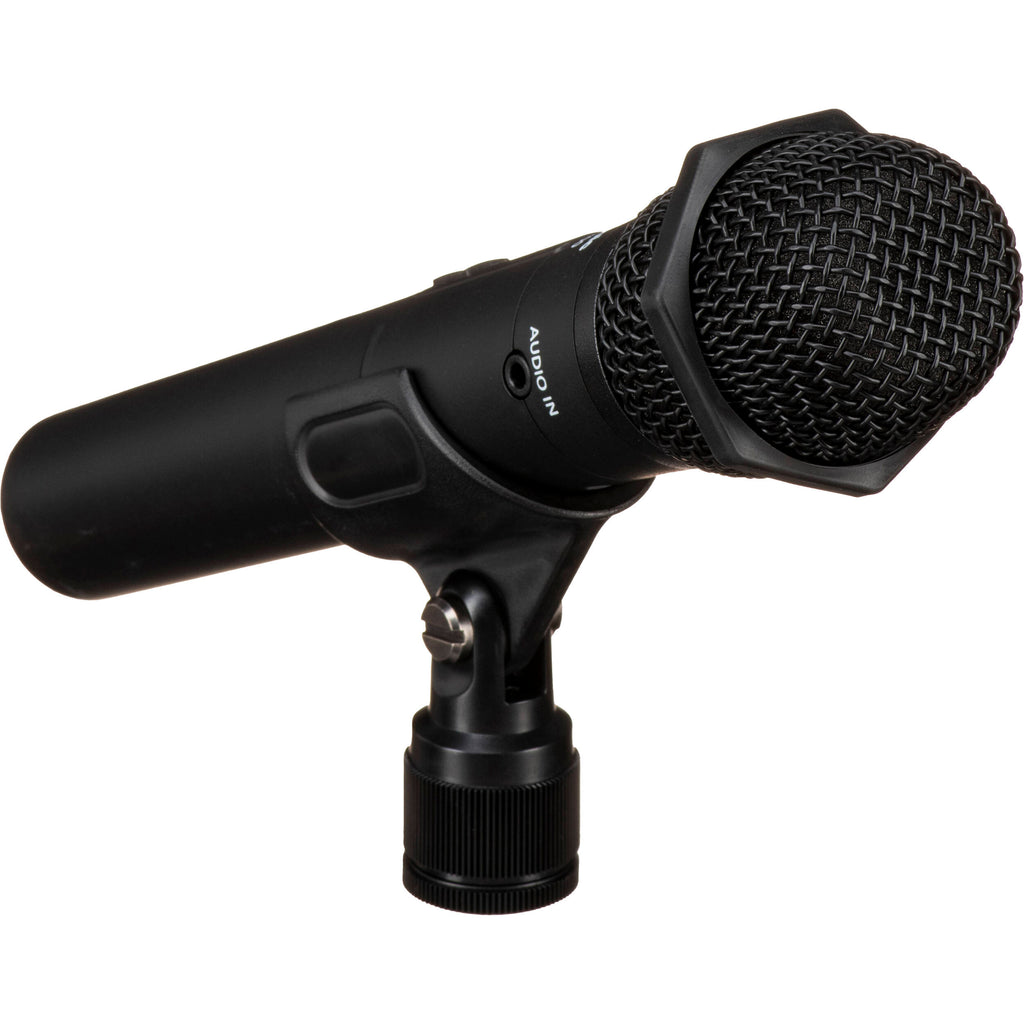

- 3.5mm audio input connector on mic allows you to use the system to transmit audio from a local source such as a laptop or mobile device
- Low latency of 23 ms
- WX-SZ200 contactless desktop charger available separately
- Octogen color rings included for easy personalization
In the Box
- Panasonic WX-ST200 Handheld DECT Wireless Microphone Transmitter (1.9 GHz)

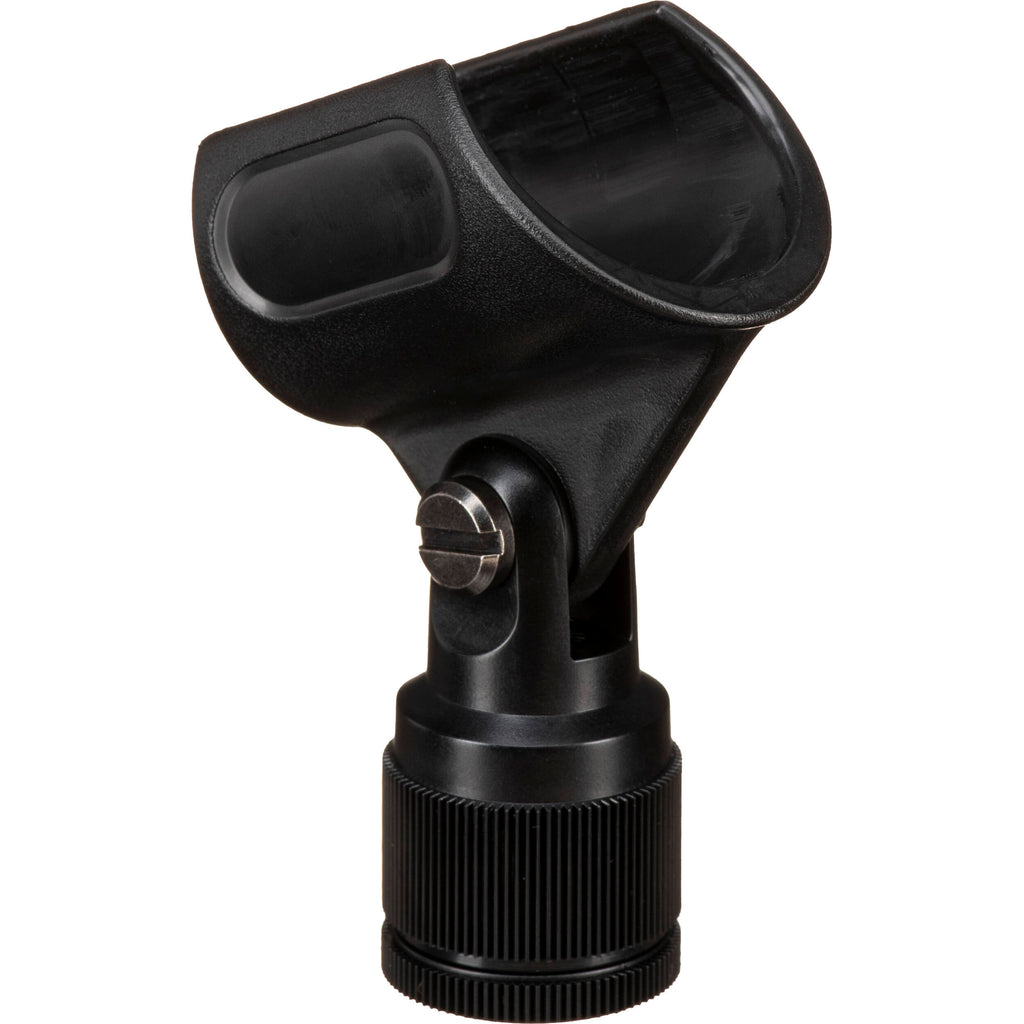

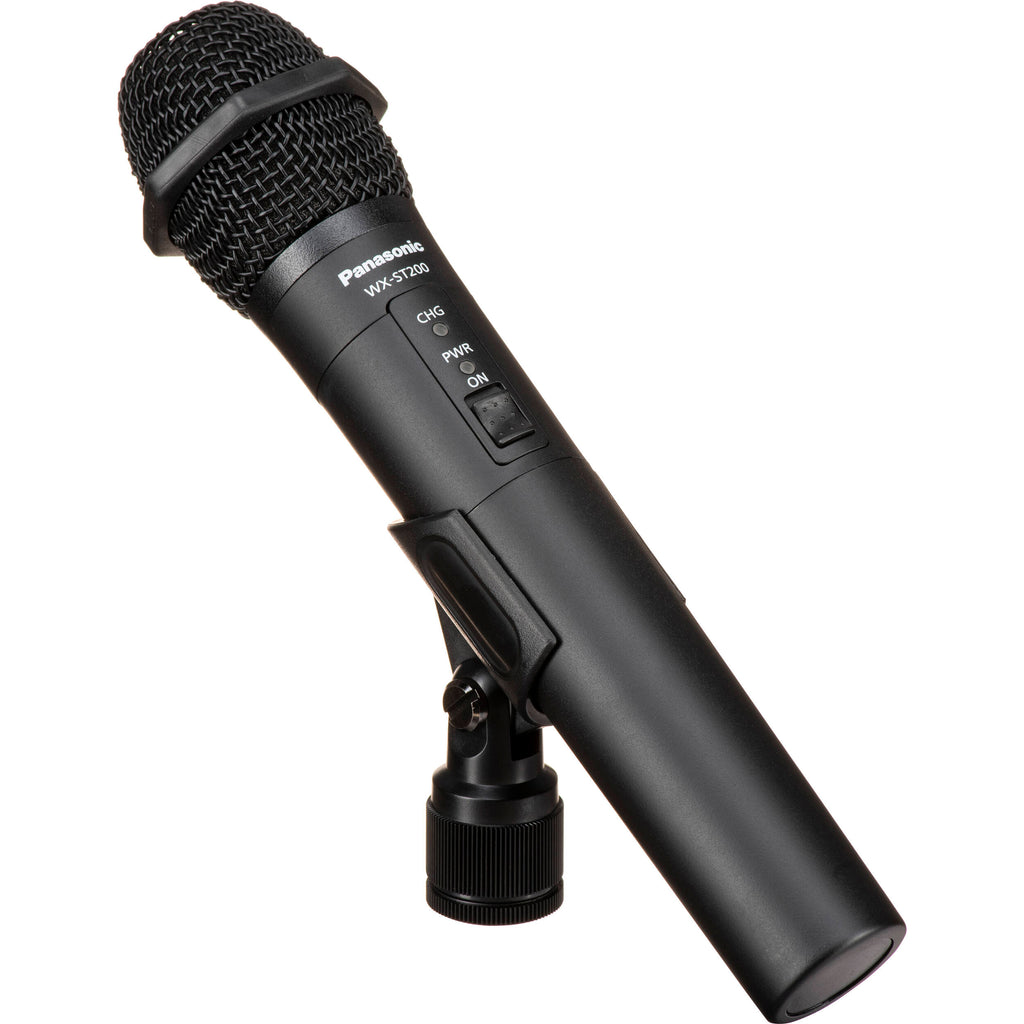

- Mic Clip
- Adapter Screw for Mic Clip
- Set of Colored ID Rings
Panasonic WX-ST200 Specs
| Wireless Technology |
Analog DECT (1.9 GHz) |
| RF Frequency Band |
1921.536 to 1928.448 MHz |
| RF Channel Scanning |
Auto-Scan |
| Max Operating Range |
131.2' / 40 m (Line of Sight) |
| Built-In Recorder |
No |
| Timecode Support |
No |
| Latency |
23 ms |
| Encryption |
None |
Transmitter
| Transmitter Type |
Handheld |
| RF Output Power |
Not Specified by Manufacturer |
| Audio I/O |
1 x 1/8" / 3.5 mm TRS Female Unbalanced Input |
| Included Cable Connector |
None |
| Muting |
Off/On Switch |
| Auto-Level Control |
No |
| Frequency Response |
100 Hz to 15 kHz |
| Sync Method |
Proprietary |
| Antenna |
Internal |
| Power Requirements |
Battery |
| Battery Type |
1 x AA (Included) |
| Approx. Battery Life |
6 Hours (Alkaline)
8 Hours (NiMH) |
| USB/Lightning I/O |
1 x Micro-USB (Host Connection) |
| Display & Indicators |
1 x LED (Battery Status) |
| Operating Temperature |
41 to 95°F / 5 to 35°C |
| Operating Humidity |
10 to 90% |
Microphone
| Microphone Type |
Handheld |
| Color |
Black |
| Sound Field |
Mono |
| Operating Principle |
Pressure Gradient |
| Capsule |
Electret Condenser |
| Polar Pattern |
Cardioid |
| Frequency Range |
100 Hz to 15 kHz |
| Length |
8.7" / 222 mm |
| Diameter |
1.9" / 48 mm |
| Weight |
6.3 oz / 180 g |
Packaging Info
| Package Weight |
0.85 lb |
| Box Dimensions (LxWxH) |
11.3 x 3.5 x 2.5" |
