Description
Panasonic WX-SE200 Overview

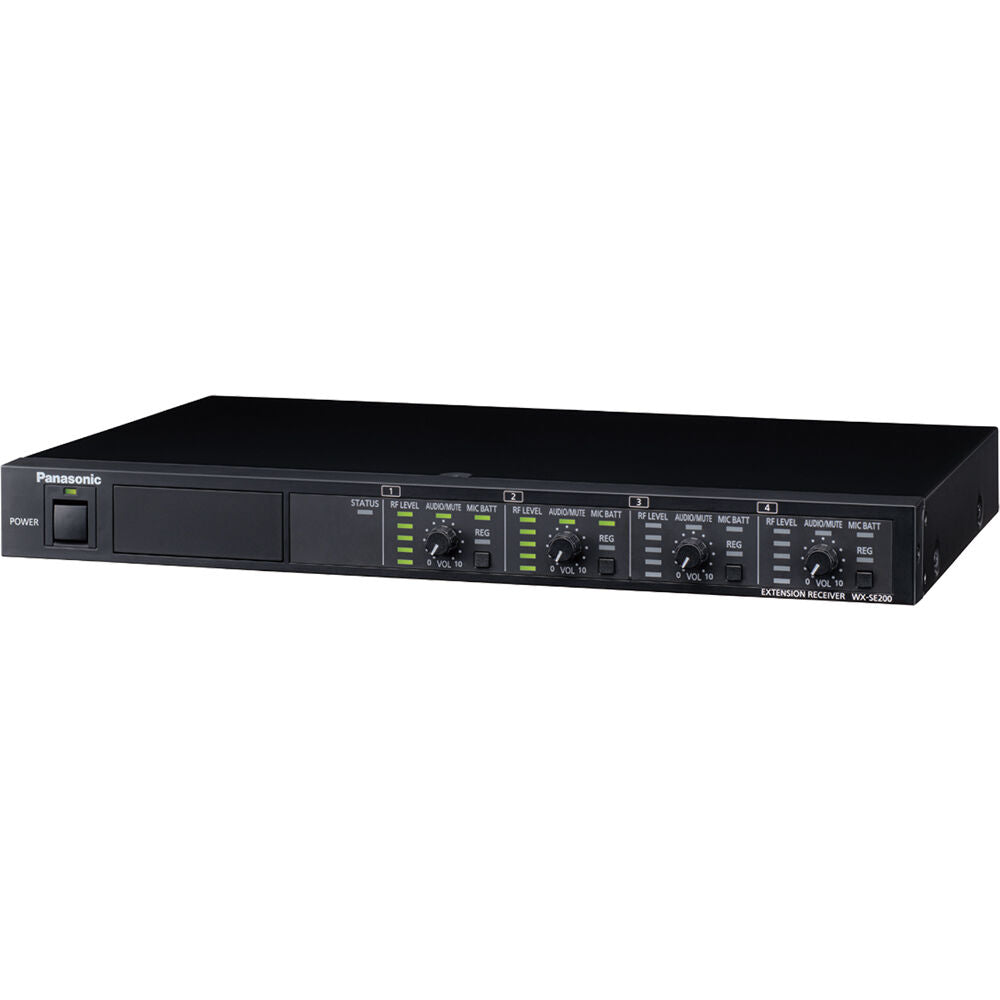

The Panasonic WX-SE200 is an expansion unit for the WX-SR204 receiver that adds four additional receiver channels to the unit without the need for any additional antennas. The unit is designed for use with the WX-ST200 handheld microphone transmitter and the WX-ST400 bodypack transmitter (both available separately).
The system operates in the 1.9 GHz range, far away from potential Wi-Fi and TV interference, and is designed to provide reliable audio reception with an operating range up to 150'. The receiver is well suited for hybrid in-room/virtual presentations in a wide variety of spaces ranging from small conference rooms to larger event spaces and auditoriums. Connect up to 8 antennas (available separately) using Cat5 cables and tuck the receiver away in the equipment closet for a neat and tidy setup.
- Add up to 4 additional wireless mic channels to an existing 4-channel system (WX-SR204 required) without the need to install additional antennas
- Easy to set up�no need for planning or allocation of channels
- Supports external audio input and mixing with mic channels
- Secure pairing with Panasonic microphones
- Supports external audio input and mixing with mic channels
- Rack mountable (1-RU size, rack ears included)
In the Box
- Panasonic WX-SE200 4-Channel Expansion Receiver for WX-SR204 (1.9 GHz)
- Rack-Ear Kit
Panasonic WX-SE200 Specs
| Wireless Technology | Digital 1.9 GHz |
| Diversity | Antenna Diversity |
| RF Channel Scanning | Auto-Scan |
| Max Operating Range | 150' / 45.7 m |
| OS Compatibility | Windows 10 *As of March, 2022: Check with manufacturer for the most up-to-date compatibility |
| SNR | ?70 dB |
| THD | ?3 % |
| Receiver Type | Rackmount |
| Mounting Options | Rackmount (with Included Hardware) |
| Rackmount Size | 1RU |
| Number of Audio Channels | 4 |

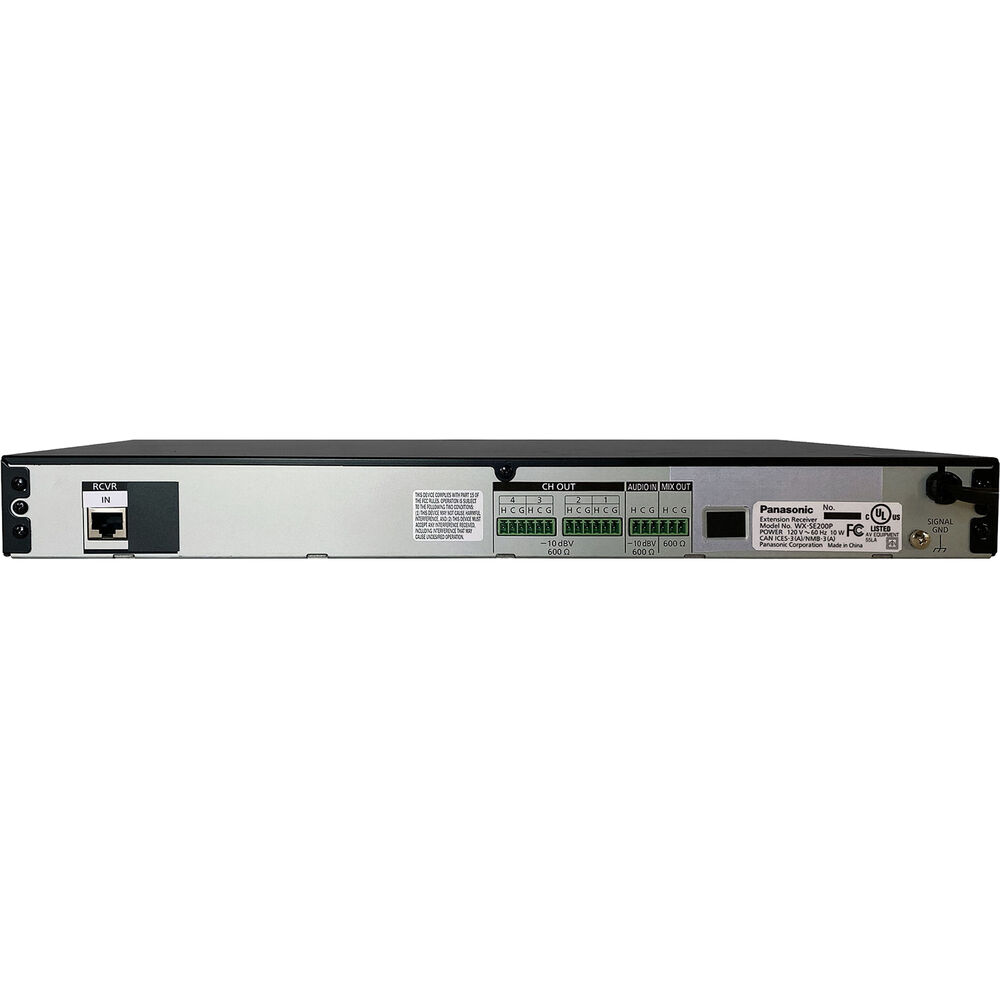

| Audio I/O | 4 x Block 3-Pin Female Balanced Line Output 1 x Block 3-Pin Female Balanced Line Input 1 x Block 3-Pin Female Balanced Line Output |
| Audio Output Level | -10 dBV |
| Frequency Response | 50 Hz to 15 kHz |
| Network I/O | 1 x RJ45 |
| Word Clock I/O | None |
| USB/Lightning Connectivity | None |
| Standalone Audio Interface Capable | No |
| Power Requirements | AC Input |
| AC Input Power | 120 VAC, 60 Hz |
| Display & Indicators | 5 x LED (AF Level, Level, Mute, Power, RF Level, Sync, Transmitter Battery Status) |
| Operating Temperature | 32 to 113°F / 0 to 45°C |
| Dimensions | 16.5 x 1.7 x 9.8" / 420 x 44 x 250 mm (without Mounting Hardware) |
| Weight | 6.2 lb / 2.8 kg |
