Description

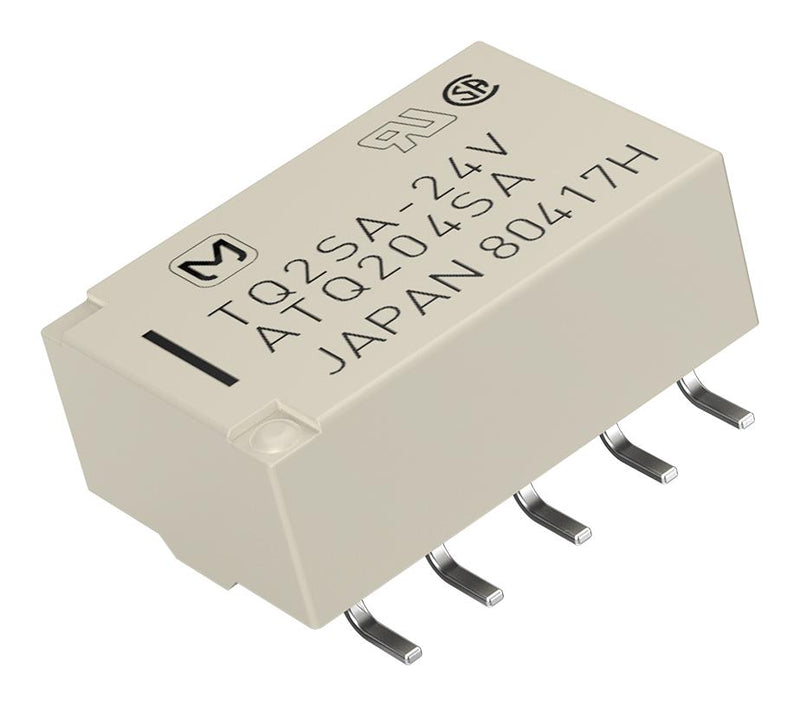

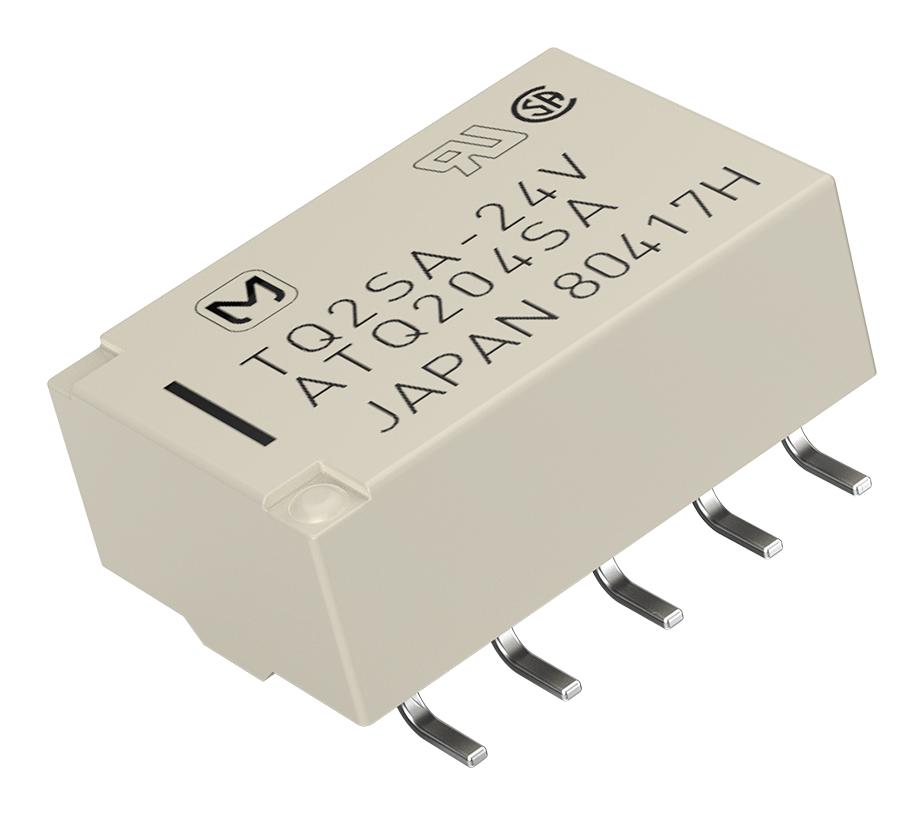

The TQ-SMD series from Panasonic are low profile surface mount signal relays for general purpose applications. It offers high breakdown voltage of 1.5KV and 2.5KV surge withstand between coil and contact. It is mainly used in signal control applications such as communications, measurement equipment, OA equipment and industrial machines.
- 14mm x 9mm x 5.6mm dimension
- Maximum switching capacity of 2A at 220VDC, 125VAC
- DPDT contact configuration
- Selectable DC coil voltage of 1.5VDC, 3VDC, 4.5VDC, 5VDC, 6VDC, 9VDC, 12VDC, 24VDC and 48VDC
- Single side stable, 1 coil latching, 2 coil latching options available
- 140mW power consumption
Applications
Industrial, Power Management, Automation & Process Control, Consumer Electronics
Product details
| Coil Voltage: 5VDC |
| Contact Configuration: DPDT |
| Contact Current: 2A |
| Product Range: TQ |
| Relay Mounting: Surface Mount |
| Coil Type: Latching Dual Coil |
| Relay Terminals: Solder |
| Contact Voltage VAC: 125V |
| Contact Voltage VDC: 30V |
| Contact Material: Silver |
| Coil Resistance: 75ohm |
Other details
| Brand | PANASONIC |
| Part Number | TQ2SA-L2-5V |
| Quantity | Each |
| Technical Data Sheet EN |  |
