Description
Panasonic AW-RP150GJ Overview
- 1 Description
- 2 Single-Operator Camera Control
- 3 Multiple-Camera Connection
- 4 Supported Cameras
- 5 Touch Panel GUI
- 6 Touch Focus
- 7 Settings Copied to Multiple Cameras
- 8 Smooth Cropped Images
- 9 Preset Memory for Simple Camera Control
- 10 Tracing Memory
- 11 Tally/GPIO 1/GPIO 2

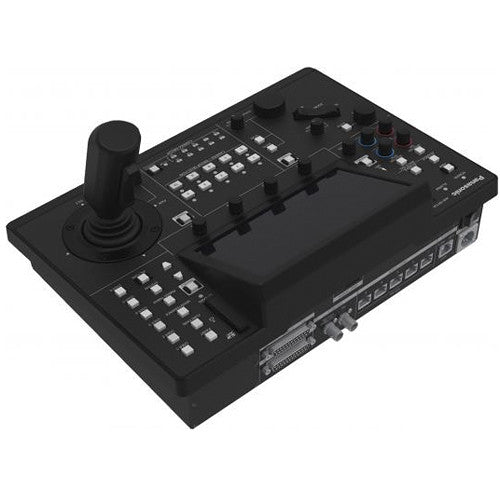

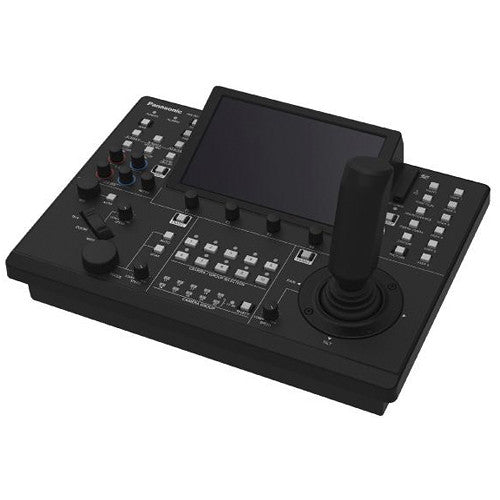

Panasonic 's Touchscreen Remote Camera Controller allows you to control up to 200 compatible Panasonic PTZ cameras over IP via a switching hub. Or you can control five cameras via direct RS-422 connection. Please see the list of supported cameras in the Features section below. The controller features a zoom/focus rocker on the joystick for pan and tilt operations, many onboard buttons, and additional controls within the 7" touchscreen LCD. It also has an SD card slot, which allows saving scene files, system settings files, and other camera settings as well as copying settings over to other cameras.
Note:
A power supply is sold separately. A 12V, 4-pin XLR power supply is required.
Single-Operator Camera Control
A zoom/focus rocker mounted on the joystick manages pan and tilt operations for zoom and focus control and intuitive single-handed operation. The built-in 7" touch display allows for easy and quick operation of all essential camera functions.
Multiple-Camera Connection
IP connection via a switching hub can be used to control up to 200 remote cameras. Up to 5 remote cameras can be controlled in a serial connection.
Supported Cameras
- AW-UE150W/K
- AW-HR140
- AW-HE130W/K
- AW-HN130W/K
- AW-UE70W/K
- AW-UN70W/K
- AW-HE40 Series
- AW-HN40HW/HK
- AW-HE38HW/HK
- AW-HN38HW/HK
Touch Panel GUI

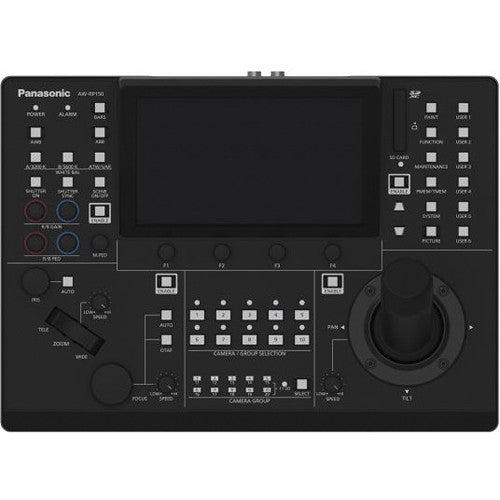

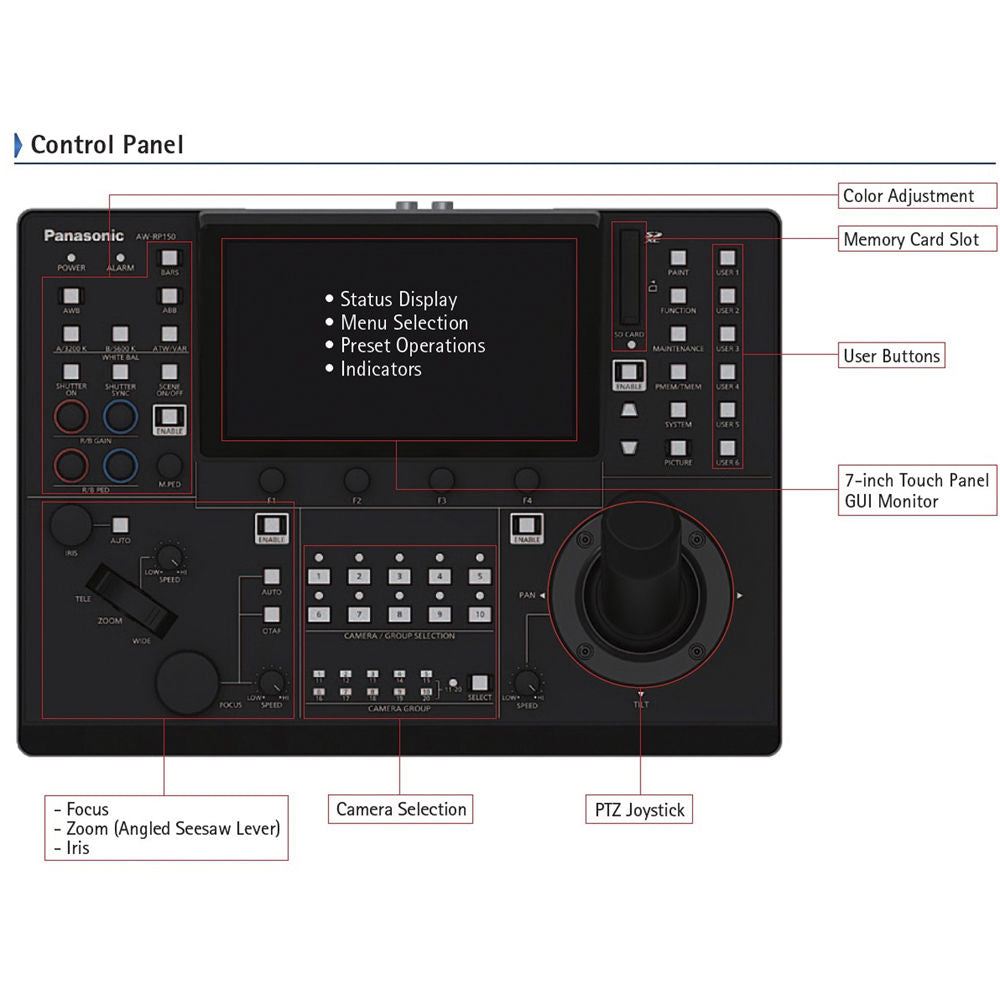

The touch panel GUI monitor supports camera image display during shooting as well as a variety of operations. The panel is equipped only with buttons that are frequently used, with menu and camera switching operations, indicators, and other functions consolidated in the touch panel GUI.
Touch Focus
The focus is quickly aligned to the area touched by tapping the screen. In addition, the "Focus in Red" display assists with aligning focus by framing the part that is in focus in red.
Settings Copied to Multiple Cameras
Scene files, system settings files, and other camera settings can be saved to an SD card. These settings can then be copied to multiple cameras via the SD card. This massively reduces on-location setup time when shooting at events with large numbers of cameras.
Smooth Cropped Images
When the controller is used with the AW-UE150W/K camera, the cropping function of the camera can be controlled remotely. Images output from the camera to the monitor can be cropped in three different locations displayed with colored frames (yellow/green/magenta), and fine-tuned with the joystick as you watch. Required images can be cropped precisely and simply.
Preset Memory for Simple Camera Control
Registration of the camera angle and other remote camera settings allows the settings to be easily recalled from the touch panel GUI monitor. Supported presets include pan and tilt position, focus position, white balance settings, crop position coordinates, zoom position, lens aperture (manual iris only), and gain.
Tracing Memory
The tracing memory function records a series of operations performed for the remote camera. Up to 5 minutes for 10 operations can be memorized for a single camera and that trajectory can then be reproduced. Supported presets include pan and tilt position, focus position, white balance settings, zoom position, lens aperture (manual iris only), and gain.
Tally/GPIO 1/GPIO 2
Input/output switched via menu settings.
UPC: 885170372009
In the Box
- Panasonic Touchscreen Remote Camera Controller
- Limited 1-Year Warranty
Table of Contents
- Description
- Single-Operator Camera Control
- Multiple-Camera Connection
- Supported Cameras
- Touch Panel GUI
- Touch Focus
- Settings Copied to Multiple Cameras
- Smooth Cropped Images
- Preset Memory for Simple Camera Control
- Tracing Memory
- Tally/GPIO 1/GPIO 2
Panasonic AW-RP150GJ Specs

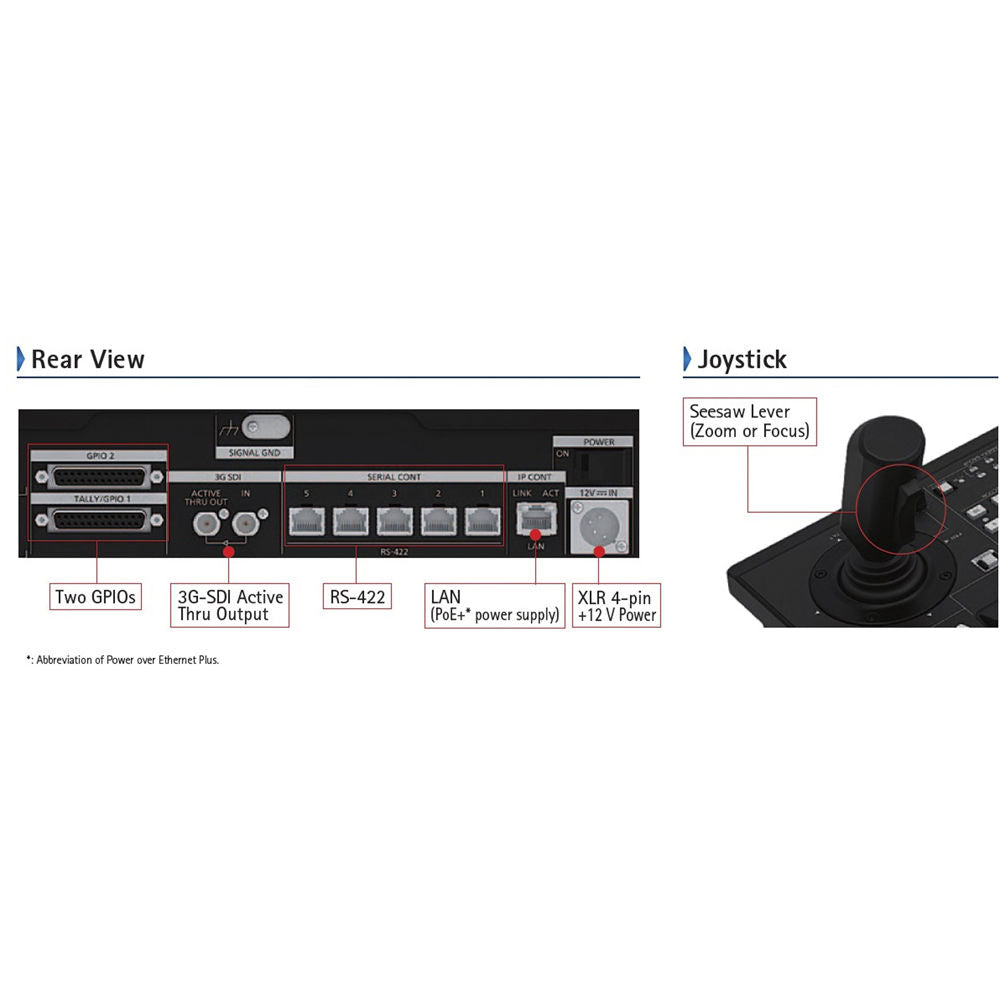

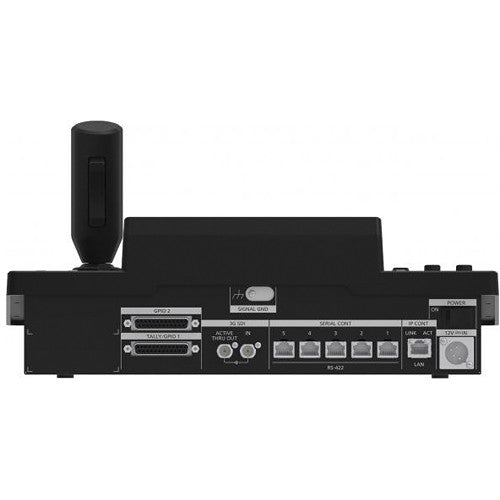

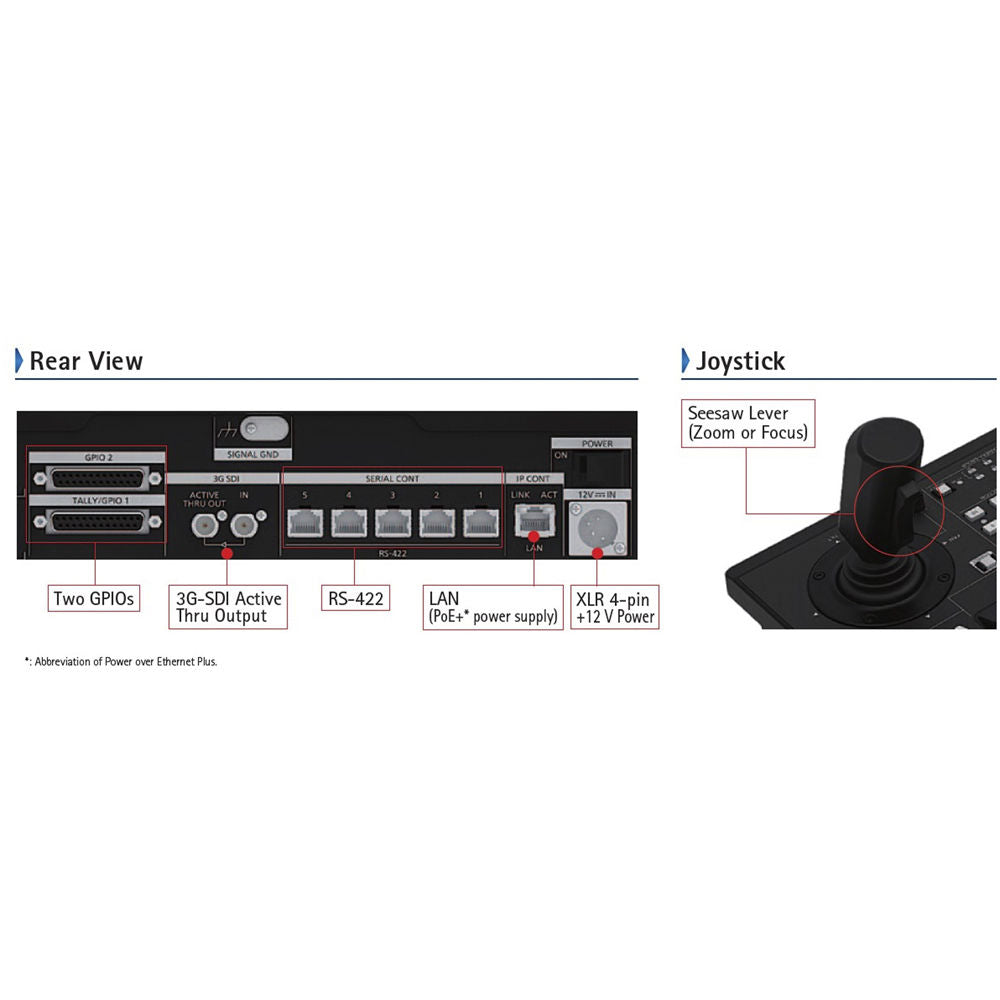

| Input | 1 x 3G-SDI on BNC, SMPTE292 / 75 Ohms |
| Output | 1 x 3G-SDI on BNC, Active Loop Out, SMPTE292 / 75 Ohms |
| Supported Input Formats | 1080p/59.94/50 (Level-A Support Only) 1080p/23.98/25 1080PsF/23.98/25 1080i/59.94/50 |
| IP Control | 1 x RJ-45 100BASE?TX PoE+ Input Max LAN Cable Length Supported: 328' / 100 m |
| Serial Control | 5 x RJ-45 (RS-422, Tally Out) Max Cable Length Supported: 3280' / 1000 m (Cat 5e or Higher Shielded Cable) Tally Out: Open Collector Output (Negative Logic) 24 VDC Maximum Voltage Resistance, 50 mA Maximum Current |
| Tally/GPIO 1 | 1 x 25-Pin D-Sub Tally In: 10 Inputs (for Photocoupler Signals) GPI: 6 Inputs (for Photocoupler Signals) GPIO: 5 Inputs (for Photocoupler Signals) or 5 Outputs (Open Collector Outputs, Negative Logic) |
| GPIO 2 | 1 x 25-Pin D-Sub GPI: 10 Inputs (for Photocoupler Signals) GPIO: 10 Inputs (for Photocoupler Signals) or 10 Outputs (Open Collector Outputs, Negative Logic) |
| LCD Display | 7" Touch Panel GUI Monitor 800 x 480 (WVGA) Resolution |
| Memory Card Slot | 1 x SD Card Slot (SDHC/SDXC) |
| Number of Cameras Supported | 200 (IP), 5 (RS-422) |
| Camera Selection Buttons | 10 |
| Camera Groups | 20 (10 Units per 1 Group) |
| Tracing Memory | Cam1 to Cam10 5-Minute Recording Time per Camera 10 Memory Settings per Camera |
| User Assignable Buttons | 6 (Plus 10 on the LCD Menu) |
| Pan / Tilt Adjustment | 7 Speed Levels |
| Tally LED Indicator | Green / Red |
| Power Input | 12 VDC, 4-Pin XLR |
| Power Requirements | 12 VDC (10.8 to 13.2 V) |
| PoE+ | IEEE802.3at Standard: 42 to 57 VDC (Camera Input) |
| Current Consumption | 1.0 A (Connector Input) 0.6 A (PoE+ Power Supply) |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Relative Humidity | 20 to 90% (No Condensation) |
| Storage Temperature | -4 to 122°F / -20 to 50°C |
| Dimensions | 13.5 x 7 x 9.6" / 34.2 x 17.8 x 24.5 cm (Excluding Protrusions) |
| Weight | Approx 7 lb / 3.2 kg |
Packaging Info
| Package Weight | 11.405 lb |
| Box Dimensions (LxWxH) | 18.6 x 15.3 x 13.1" |
