Description
Panasonic REQ12 Overview
By Photo's
Frank Abbate

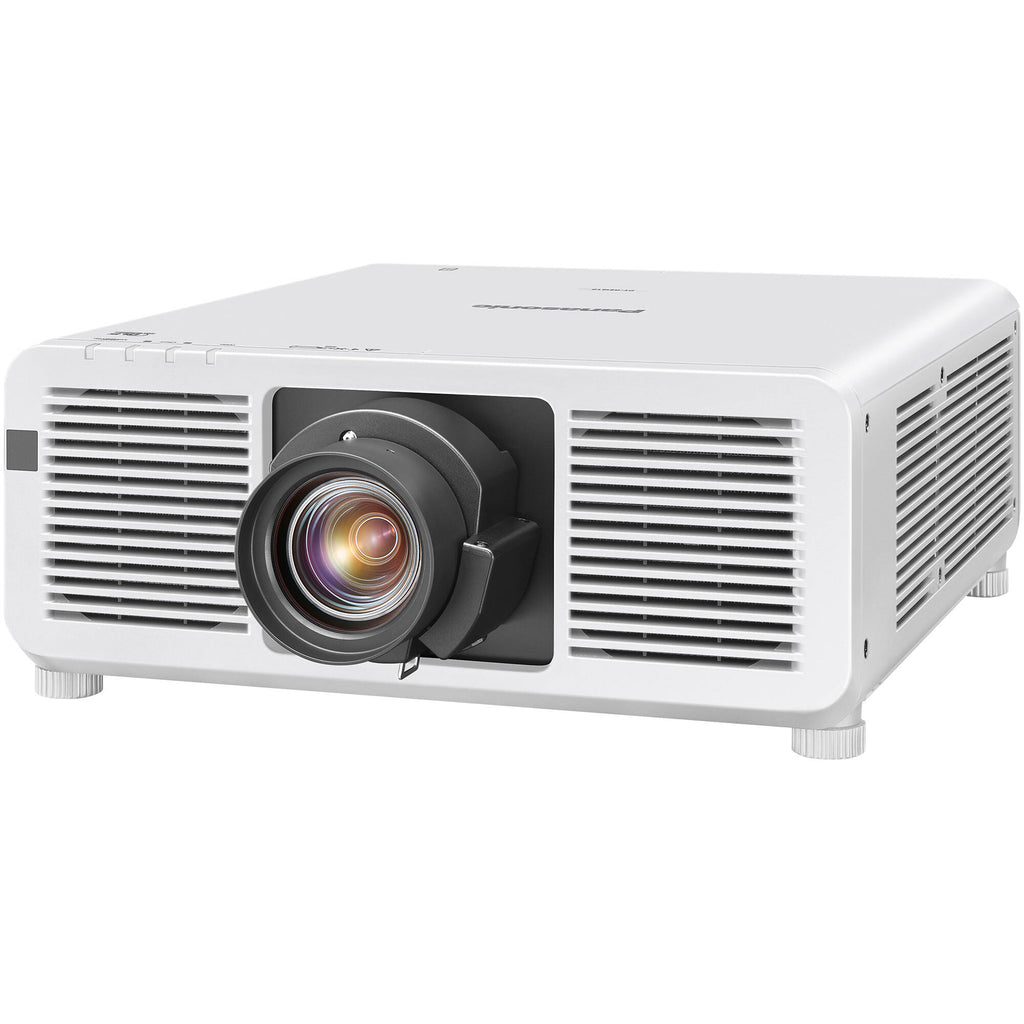

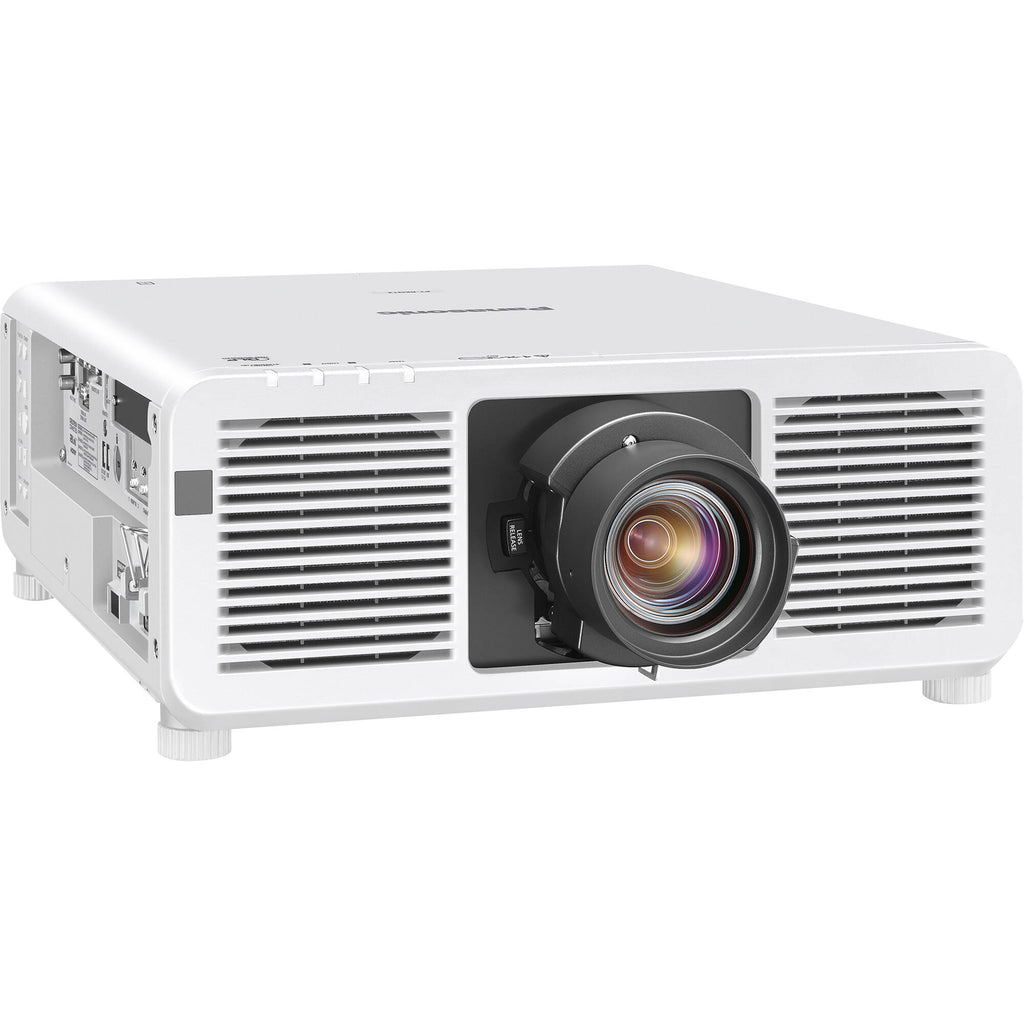

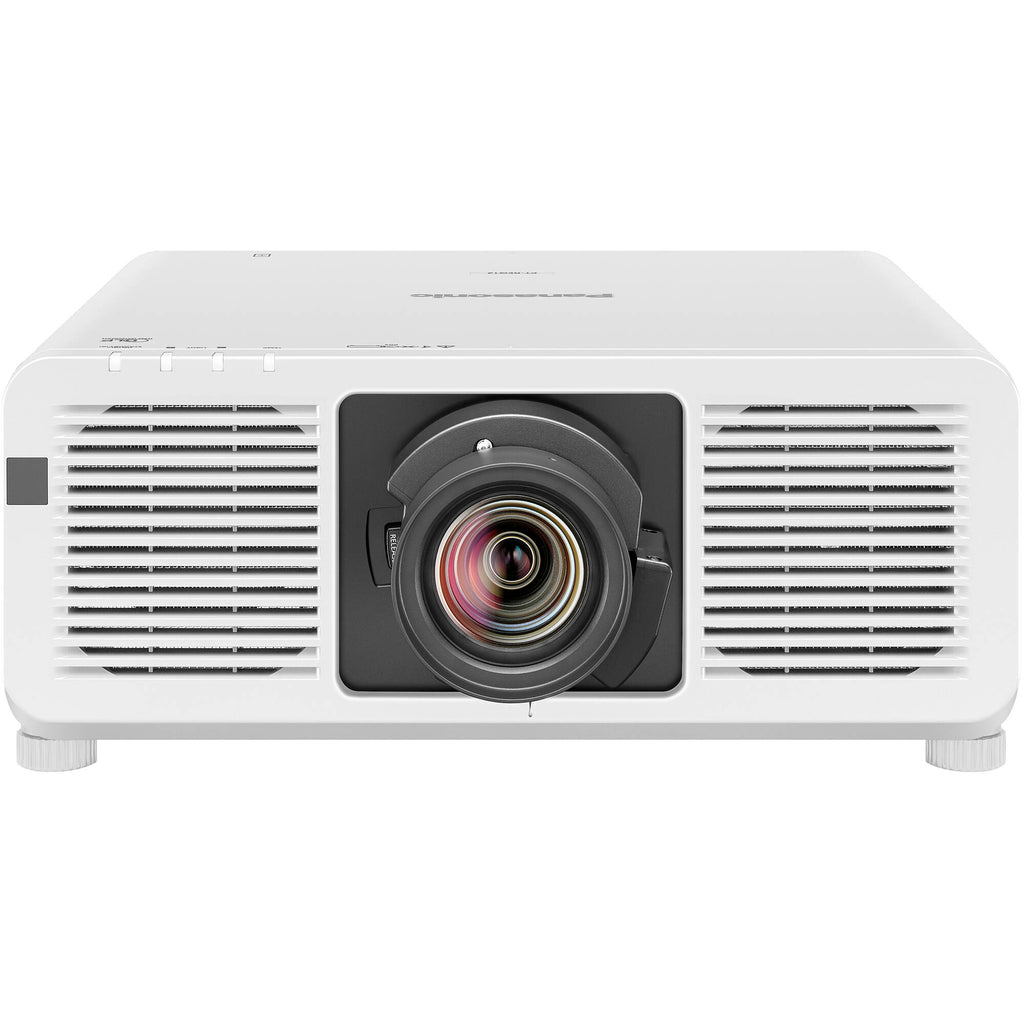

Experience dynamic visuals and professional reliability with the PT-REQ12WU Laser DLP Projector in white from Panasonic. Featuring a brightness of 12,000 ISO lumens, standard-throw lens, 4K on-screen resolution, and 240 Hz projection capability, the PT-REQ12WU is ideal for demanding commercial applications, like museums and small to midsize entertainment venues.
Connect devices via HDMI and DisplayPort with support for 4K HDR and HDCP 2.3. It is LAN and RS-232 controllable and compatible with many popular 3rd party functions, such as Crestron Connected, AMX DD, and PJLink. It can be installed in any orientation to cover a wide-range of uses and tricky installations. Additionally the PT-REQ12WU is TAA compliant.
UHD 4K via Panasonic's Quad Pixel Drive
The REQ12 Series projectors feature a Quad Pixel Drive, Panasonic's 2-axis pixel quadrupling technology, to create deep, smooth, and detailed 4K images. It supports 240 Hz projection and works with their optional real-time tracking projection-mapping system. Evolved Dynamic Contrast includes new scene-recognition circuitry to make the difference between black, white, and contrasting colors stand out dramatically and bring your content to life.
Professional Reliability
The REQ12 Series features an hermetically sealed optical block with all-liquid cooling, enabling 20,000 hours of maintenance-free projection. To prevent interruptions, Backup Input switches to a secondary signal without screen-blanking if the primary is disrupted, while a Multi Laser Drive Engine prevents brightness loss in the unlikely event of diode failure.
Effortless Workflow, Improved Expandability
The PT-REQ12WU responds to complex productions with expanded functions, interfaces, and options that streamline workflow. A new line of lenses improve native contrast, add powered peripheral focus, and expand the lens-shift range. An Intel SDM-specified slot integrates proprietary or third-party function boards to adapt and scale connectivity. You can import custom test patterns, use NFC function to prep for network connection without AC power, and save time with preactivated upgrade kits for Geo Pro software.
NFC Projector Prep
Using a mobile device and NFC technology, you can prepare your projector without it even being powered on. Tap the decal on the PT-REQ12WU to use the Smart Projector Control app to adjust settings that can then be applied when the projector is finally setup and powered on. This feature also lets you restore the PT-REQ12WU to factory defaults when powered off.
UPC: 885170405363
In the Box
- Panasonic REQ12 Series PT-REQ12WU 12,000-Lumen Pixel Shift UHD 4K Laser DLP Projector (White)
- Power Cord

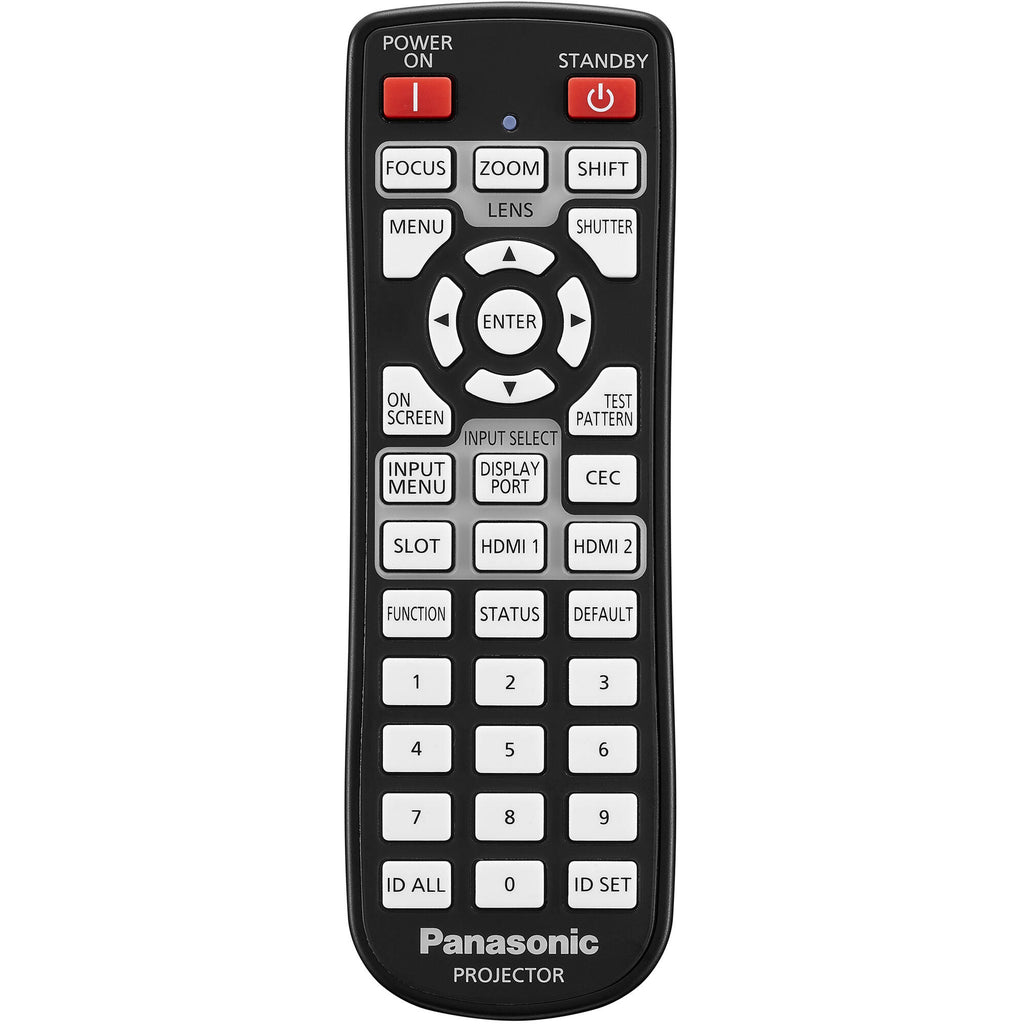

- Remote Control
- 2 x AAA Battery for Remote
- Lens Cover
- Slot Adapter
- Limited 3-Year Manufacturer Warranty
- Limited 3-Year Manufacturer Warranty (On Illumination Parts or 12,000 Hours, Whichever Comes First)
Additional Resources
Panasonic REQ12Specs
Key Specs
| Display System |
1-Chip 0.80" DLP
|
| Native Resolution |
1920 x 1200
|
| Maximum Brightness |
12,000 Lumens (ISO)
|
| Throw Ratio |
1.36 to 2.10:1 (200" Screen Size @ 24.6' / 7.5 m)
|
| Projection Size |
70 to 700" / 1.8 to 17.8 m
|
| HDR Support |
Yes, HDR10/Hybrid Log Gamma
|
| Inputs/Outputs |
2x HDMI Audio, Video Input
1x DisplayPort Audio, Video Input 1x USB-A Data, LAN Input 1x USB-A Power Output 1x RJ45 (Ethernet) Control, Data, LAN Input/Output 1x DE-9/DB-9 (RS-232) Control Input 1x DE-9/DB-9 (RS-232) Control Output 1x BNC Control Input 1x BNC Control Output 1x 1/8" / 3.5 mm Mini Remote Input 1x 1/8" / 3.5 mm Mini Remote Output 1x DE-9/DB-9 Remote Input |
| Light Source |
Laser Phosphor
|
Image Display
| Display System |
1-Chip 0.80" DLP
|
| Native Resolution |
1920 x 1200
|
| On-Screen Resolution |
Up to 3840 x 2160 via Pixel-Shift Technology
|
| Supported Resolutions |
Maximum: 3840 x 2400
|
| Maximum Brightness |
12,000 Lumens (ISO)
|
| Aspect Ratio |
Native: 16:10
Supported: 16:9 |
| Dynamic Contrast Ratio |
20,000:1
|
| Scan |
Horizontal: 27 to 291.6kHz
Vertical: 24 to 240Hz |
Lens
| Includes Lens |
Yes
|
| Focus |
Manual Powered
|
| Aperture |
f/1.84 to 2.31
|
| Focal Length |
23.9 to 37.2mm
|
| Lens Shift |
Vertical: ± 60%
Horizontal: ± 29% |
| Optical Zoom |
Powered:
|
| Throw Distance |
6.73 to 108.33' / 2.05 to 33.02 m
|
| Throw Ratio |
1.36 to 2.10:1 (200" Screen Size @ 24.6' / 7.5 m)
|
| Projection Size |
70 to 700" / 1.8 to 17.8 m
|
Features
| Keystone Correction |
Manual to Vertical: ± 40°
Manual to Horizontal: ± 40° |
| HDR Support |
Yes, HDR10/Hybrid Log Gamma
|
| Multi-Input Support (PIP/PBP) |
Not Specified by Manufacturer
|
| Ceiling Mountable |
Yes
|
| Rear Screen Projection |
Yes
|
| Built-In Speaker |
No
|
| Projection Tilt Option |
Yes
|
Input/Output Connectors
| Inputs/Outputs |
2x HDMI Audio, Video Input
1x DisplayPort Audio, Video Input 1x USB-A Data, LAN Input 1x USB-A Power Output 1x RJ45 (Ethernet) Control, Data, LAN Input/Output 1x DE-9/DB-9 (RS-232) Control Input 1x DE-9/DB-9 (RS-232) Control Output 1x BNC Control Input 1x BNC Control Output 1x 1/8" / 3.5 mm Mini Remote Input 1x 1/8" / 3.5 mm Mini Remote Output 1x DE-9/DB-9 Remote Input |
| HDCP Support |
Yes, Version 2.3
|
| Media/Memory Card Slot |
No
|
| Number of Expansion Slots |
1
|
Hardware
| Mobile App Compatible |
Yes, Adapter Required (Not Included): Android & iOS
|
| Wireless LAN / Wi-Fi |
No
|
| Bluetooth |
No
|
General
| Light Source |
Laser Phosphor
|
| Expected Lamp Life |
Medium Brightness: 20,000 Hours
Low Brightness: 24,000 Hours |
| Fan Noise |
Medium Brightness: 39 dB
|
| Security |
Cable Lock Slot
Password Protection |
| Input Power |
100 to 240 VAC, 50 / 60 Hz
|
| Power Consumption |
Full Brightness: < 1050 W
|
| Operating Conditions |
32 to 113°F / 0 to 45°C at 10 to 80% Humidity
|
| Dimensions (W x H x D) |
19.6 x 8.3 x 25.5" / 498.0 x 212.0 x 648.0 mm (with Lens and Feet)
19.6 x 7.7 x 21.2" / 498.0 x 196.0 x 538.0 mm (without Lens and Feet) |
| Weight |
63.5 lb / 28.8 kg
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
