Description
Panasonic AW-RP200GJ Overview
This Panasonic Remote PTZ Camera Controller is a comprehensive control surface designed for complex, multi-camera productions. Building on the proven ergonomics of previous Panasonic controllers, it introduces macro functionality and dual-joystick operation to significantly expand operational flexibility. The right joystick handles pan, tilt, zoom, and focus, while the left joystick can be independently assigned for menu navigation, cropping, or simultaneous multi-camera control, allowing operators to manage demanding workflows with speed and precision.
Designed for large-scale IP-based systems, this controller supports the operation of up to 200 PTZ cameras over IP, along with RS-422 connectivity for legacy systems. Its integrated 7" touchscreen LCD provides direct access to camera status, presets, and assignments, while built-in waveform and vectorscope displays enable real-time image evaluation during setup and operation. With support for NDI High Bandwidth and SRT video input, plus macro-driven automation for complex camera sequences, the Panasonic Remote PTZ Camera Controller is built for broadcast studios, live events, and other production environments.

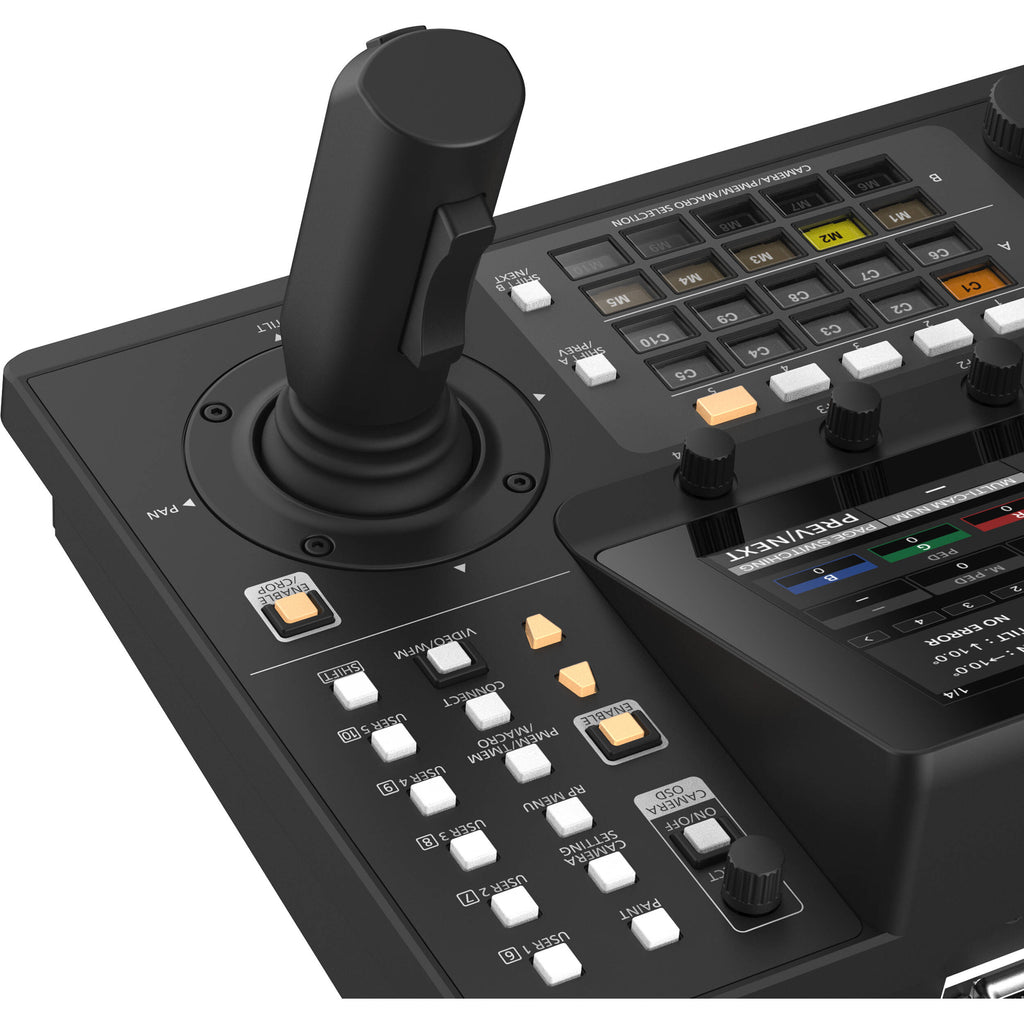

- Dual-joystick design enables simultaneous or independent camera control
- One-touch macro functionality for complex multi-camera operations
- 20 multi-select switches with five assignable operation modes
- Supports camera, preset, macro, or combined selection workflows
- Multiple shortcut buttons for fast access to image and motion parameters
- 7? touchscreen LCD for camera status, presets, and assignments
- Integrated waveform monitor and vectorscope displays
- Supports FHD video output via NDI High Bandwidth and SRT
- Web-based UI for centralized IP configuration and batch setup
- Controls up to 200 cameras via IP and 3 via RS-422

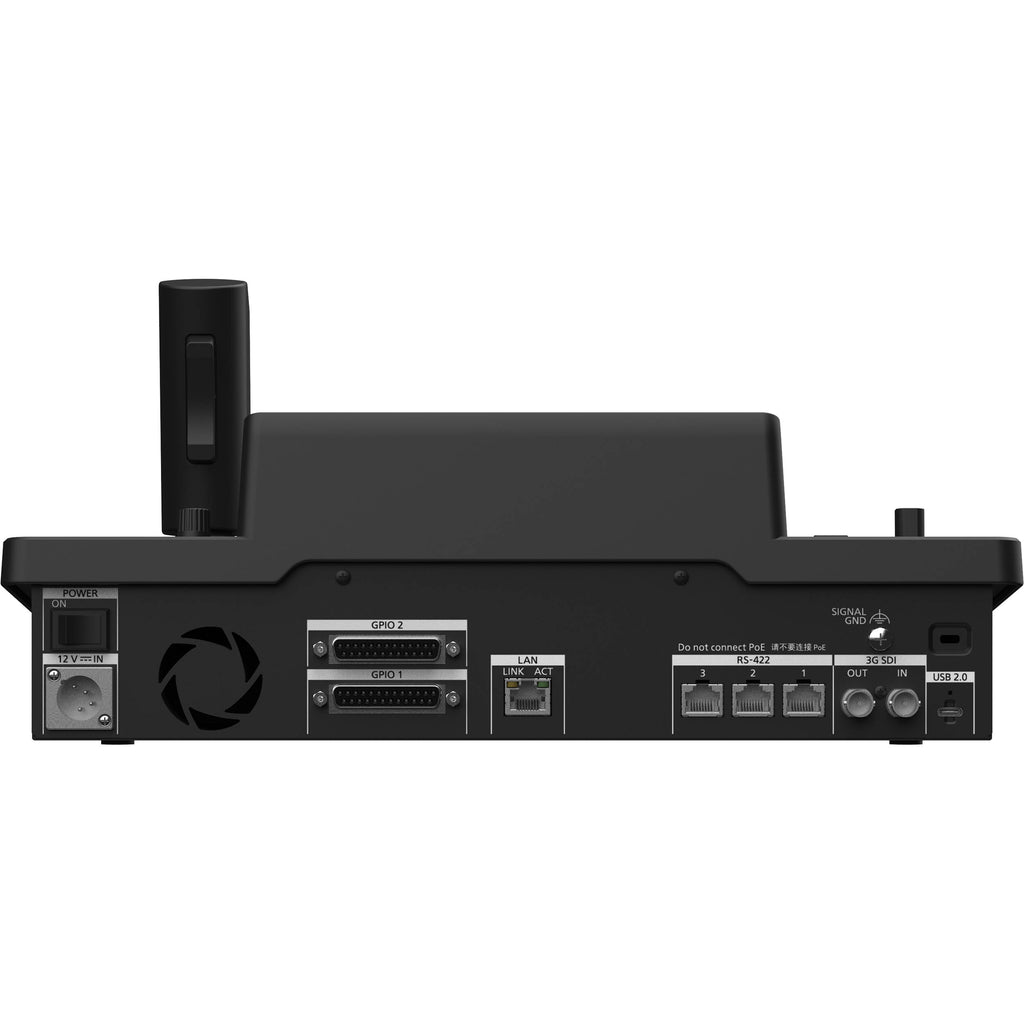

- LAN, RS-422, GPIO, USB-A, and USB-C connectivity
- 3G-SDI input and output via BNC for external monitoring
- Powered via PoE or 12 VDC 4-pin XLR input
- Panasonic Remote PTZ Camera Controller
- Limited 1-Year Manufacturer Warranty
Panasonic AW-RP200GJ Specs
| Number of Supported Cameras |
200 Channels via IP
3 Channels via RS-422 |
| Control I/O |
1x RJ45 (IP Control, LAN)
3x RJ45 (RS-422) |
| Video I/O |
1x BNC (3G-SDI) Input
1x BNC (3G-SDI) Output |
| Controls |
20x Camera Selection Buttons
1x Zoom, Focus Rocker 2x Joysticks 1x Iris Adjustment Knob 6x Programmable Buttons 5x Multifunction Buttons 12x Gain, White Balance Buttons 11x Menu Buttons |
| Touchscreen |
Yes
|
| PoE Support |
Yes: PoE++ 802.3bt
|
| Security Lock Support |
No
|
| Number of Supported Cameras |
200 Channels via IP
3 Channels via RS-422 |
| Supported Control Protocols |
IP
NDI RS-422 |
| IP Streaming |
SRT: 1080p
|
| Control I/O |
1x RJ45 (IP Control, LAN)
3x RJ45 (RS-422) |
| Other I/O |
2x D-Sub 25-Pin (GPI) Input/Output
1x USB-C 1x USB-A |
| Video I/O |
1x BNC (3G-SDI) Input
1x BNC (3G-SDI) Output |
| Controls |
20x Camera Selection Buttons
1x Zoom, Focus Rocker 2x Joysticks 1x Iris Adjustment Knob 6x Programmable Buttons 5x Multifunction Buttons 12x Gain, White Balance Buttons 11x Menu Buttons |
| Presets |
100
|
| Panel Type |
LCD
|
| Size |
7"
|
| Native Resolution |
800 x 480
|
| Touchscreen |
Yes
|
| PoE Support |
Yes: PoE++ 802.3bt
|
| Power Connectors |
1x XLR 4-Pin
|
| Input Power |
12 VDC
42 to 57 VDC |
| Security Lock Support |
No
|
| Dimensions |
14.3 x 9.6 x 7" / 36.4 x 24.5 x 17.8 cm
|
| Weight |
7.7 lb / 3.5 kg
|
| Package Weight |
12.64 lb
|
| Box Dimensions (LxWxH) |
18.6 x 15.3 x 13"
|
