Description
Panasonic TMW380 Overview
- 1Description
- 2Image Correction
- 3Source Connectivity
- 4Additional Features
By Photo's
John Foldi
From conference rooms to home theaters, the PT-TMW380U 3800-Lumen WXGA Short-Throw Laser 3LCD Projector from Panasonic can project a large and bright image to make presentations pop and movies more cinematic and engaging. The TMW380U's laser light source can deliver 3800 lumens of brightness, making it ideal for dark to brightly lit spaces. The 3LCD system offers HD output at a wide 16:10 aspect ratio at sizes from 50 to 105". Thanks to the short 0.47 to 0.59:1 throw, you can conveniently place the projector close to the wall or (optional) screen. This narrows the distance, minimizing the chance of someone walking in front of the lens, and provides flexibility in your installation options.
Image Correction
Built-in automatic keystone correction adjusts images vertically by +/- 15°, and you have the option of manually adjusting your image horizontally by +/- 15°.
Source Connectivity
Dual HDMI and VGA ports give you a wide range of source options, such as a Blu-ray player, streaming device, or laptop.
Additional Features
- 360° installation
- Up to 20,000-hour laser lifespan under normal brightness
- One USB-A port for 5V/2A power output and support for an optional AJ-WM50 wireless module
- 10W mono speaker built-in
UPC: 885170400900
In the Box
- Panasonic PT-TMW380U 3800-Lumen WXGA Short-Throw Laser 3LCD Projector
- Remote Control with Batteries
- Power Cord
- Limited 3-Year Manufacturer Warranty (or 2000 Hours, Whichever Comes First (Projector))
- Limited 90-Day Manufacturer Warranty (Light Source)
- Limited 30-Day Manufacturer Warranty (Accessories)
Table of Contents
- Description
- Image Correction
- Source Connectivity
- Additional Features
Panasonic TMW380 Specs
Image Display
| Display System | 0.64" LCD |
| Native Chip Resolution | 1280 x 800 (WXGA) |
| Supported Resolutions | Minimum: VGA - 640 x 480 @ 60 Hz Maximum: 4K UHD - 3840 x 2160 @ 30 Hz |
| Maximum Brightness | 3800 Lumens |
| Aspect Ratio | Native: 16:10 Supported: 16:9 Supported: 4:3 |
| Dynamic Contrast Ratio | 3,000,000:1 |
| Scan | Horizontal: 15.7 to 91.1 kHz Vertical: 24 to 85 kHz |
Lens
| Focus | Manual |
| Lens | f/1.8 (f = 6.08 mm) |
| Throw Distance | 1.48 - 14.96' / 0.45 - 4.56 m |
| Throw Ratio | 0.43 to 0.54:1 (80" Screen Size @ 28.74" / .73 m) |
| Projection Size | 50 - 105" / 1.3 - 2.7 m |
Features
| Keystone Correction | Auto / Manual-Vertical: ± 15° Manual-Horizontal: ± 15° |
| Supported HDR Input Formats | None |
| Multi-Input Support (PIP/PBP) | Not Specified by Manufacturer |
| Ceiling Mountable | Yes |
| Rear Screen Projection | Yes |
| Built-In Speaker | Yes (Mono) |
| Speaker Power | 10W |
| Projection Tilt Option | Yes |
| Remote | Yes |
Input/Output Connectors

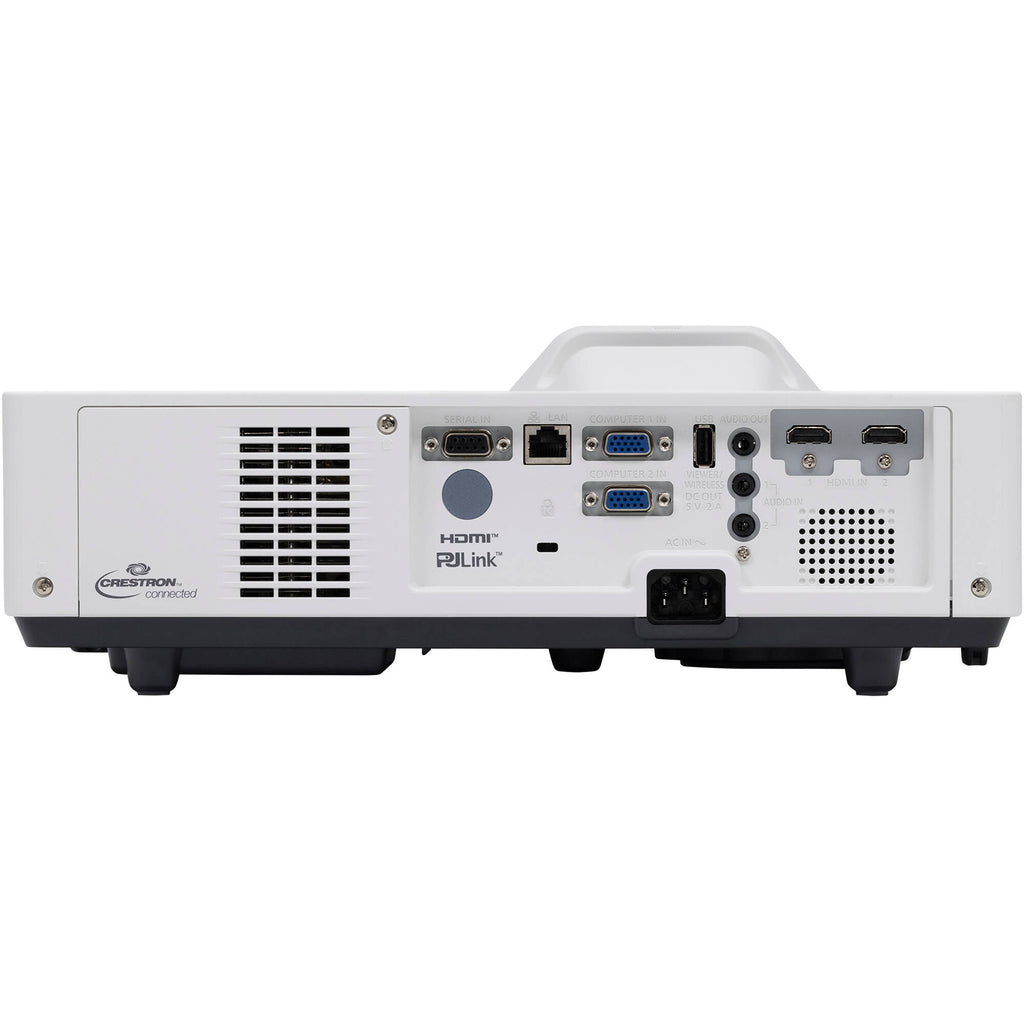

| Inputs/Outputs | 2 x HDMI Audio, Video Input 2 x DE-15/DB-15 (VGA) Video Input 2 x 1/8" / 3.5 mm Mini Audio Input 1 x 1/8" / 3.5 mm Mini Audio Output 1 x DE-9/DB-9 (RS-232) Control Input 1 x RJ45 (Ethernet) Control, LAN Input/Output 1 x USB-A Data, Power Input/Output |
| HDCP Support | Yes, Version 1.4 |
Hardware
| Mobile App Compatible | No *As of June, 2023: Check with manufacturer for the most up-to-date compatibility |
| Wireless LAN / Wi-Fi | None |
| Bluetooth | None |
General
| Light Source | Laser Phosphor |
| Expected Lamp Life | Medium Brightness: 20,000 Hours Low Brightness: 24,000 Hours |
| Fan Noise | Medium Brightness: 35 dB Low Brightness: 24 dB |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| Heat Dissipation | Full Brightness: 785 BTU |
| Power Consumption | Full Brightness: 230 W Medium Brightness: 205 W Low Brightness: 150 W Standby Mode (Lamp Off): 0.5 W |
| Operating Altitude | 2296' / 700 m |
| Operating Temperature | 32 to 113°F / 0 to 45°C |
| Operating Humidity | 20 to 80% (Non-Condensing) |
| Dimensions (W x H x D) | 13.7 x 5.4 x 14.6" / 349.0 x 138.0 x 370.0 mm |
| Weight | 10.8 lb / 4.9 kg |
