Panasonic RZ14KU Overview
- 1Description
- 2Compact and Efficient
- 33DLP Laser Projection
- 4Reliable Long Life with Low Maintenance
By Photo's
Frank Abbate

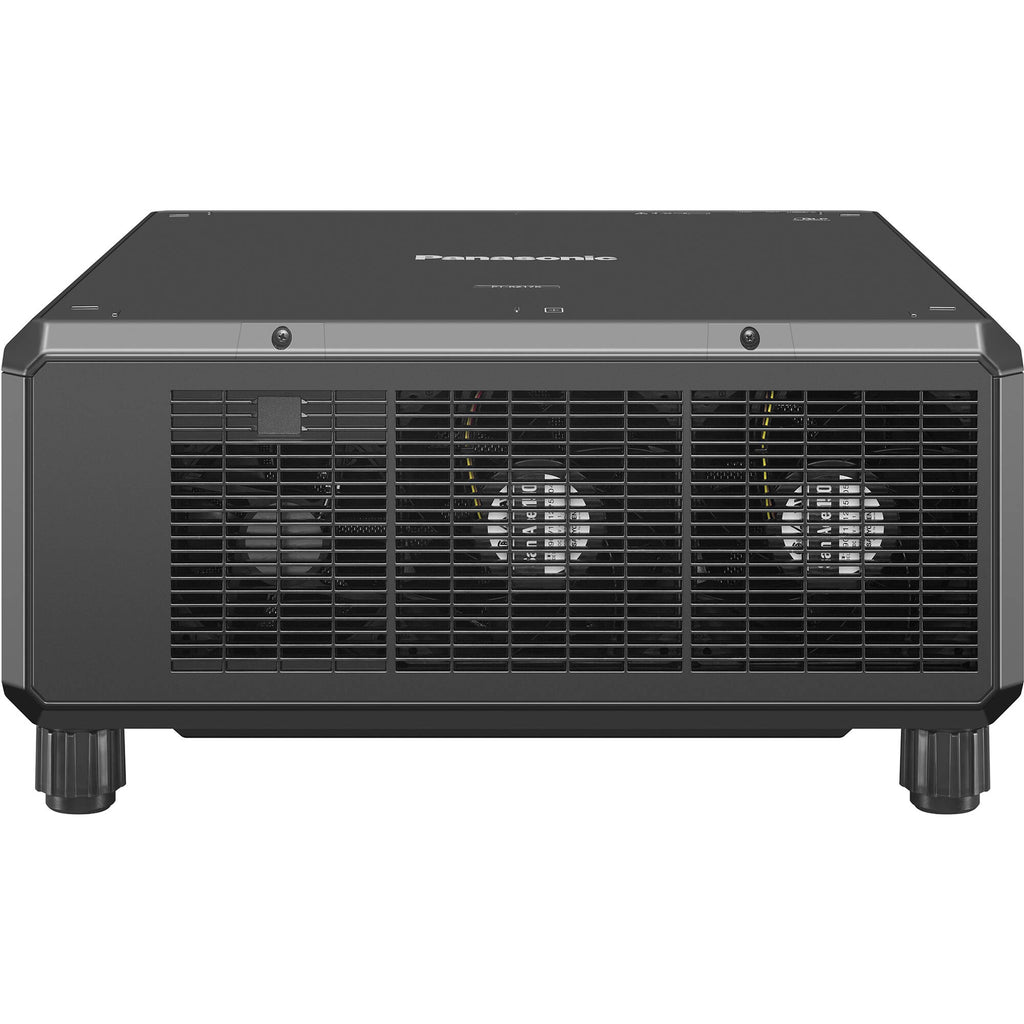

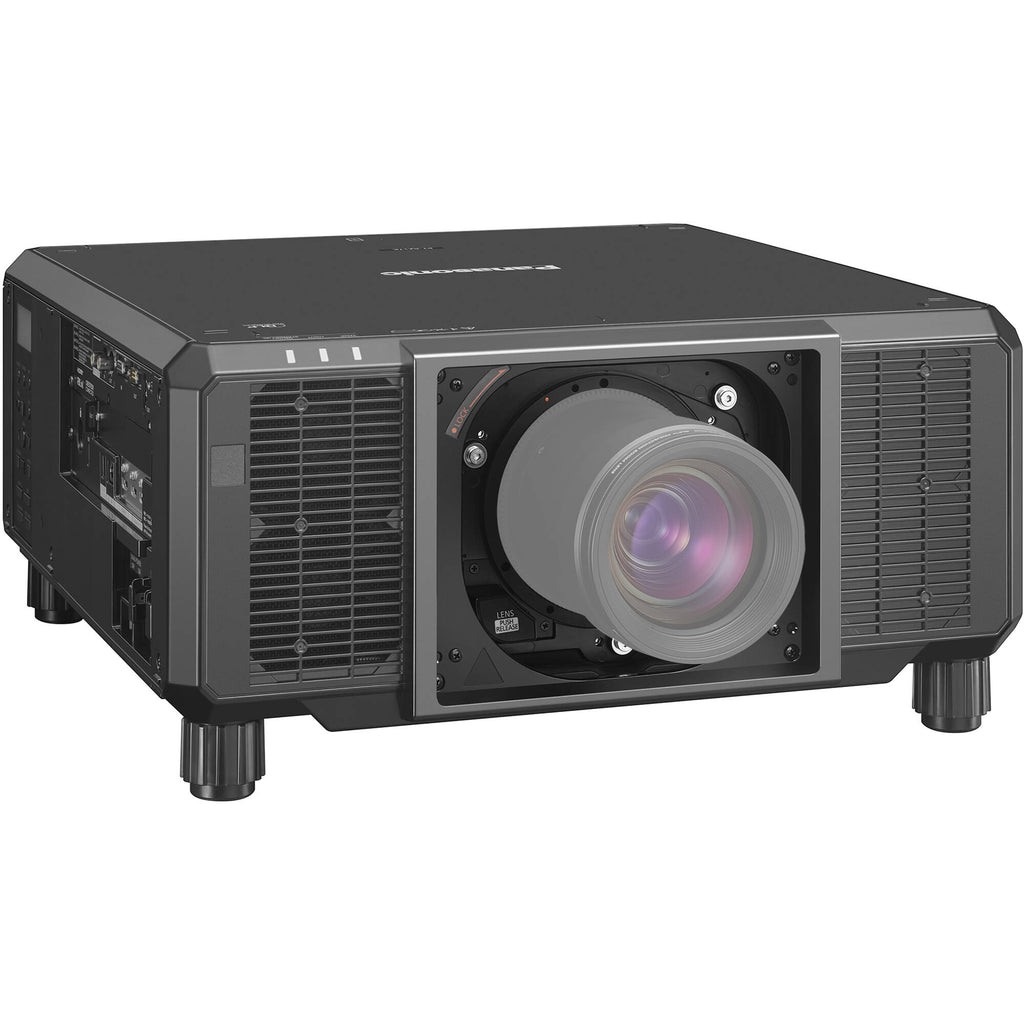

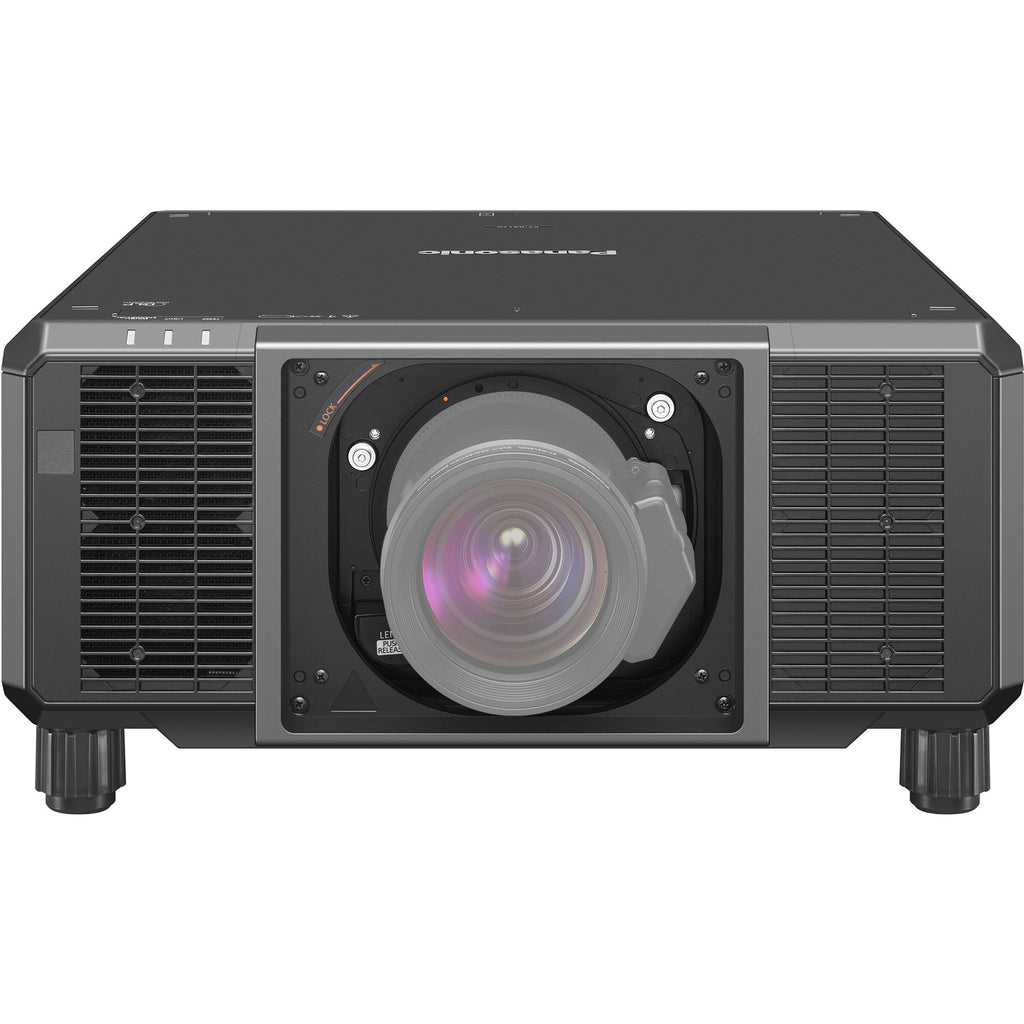

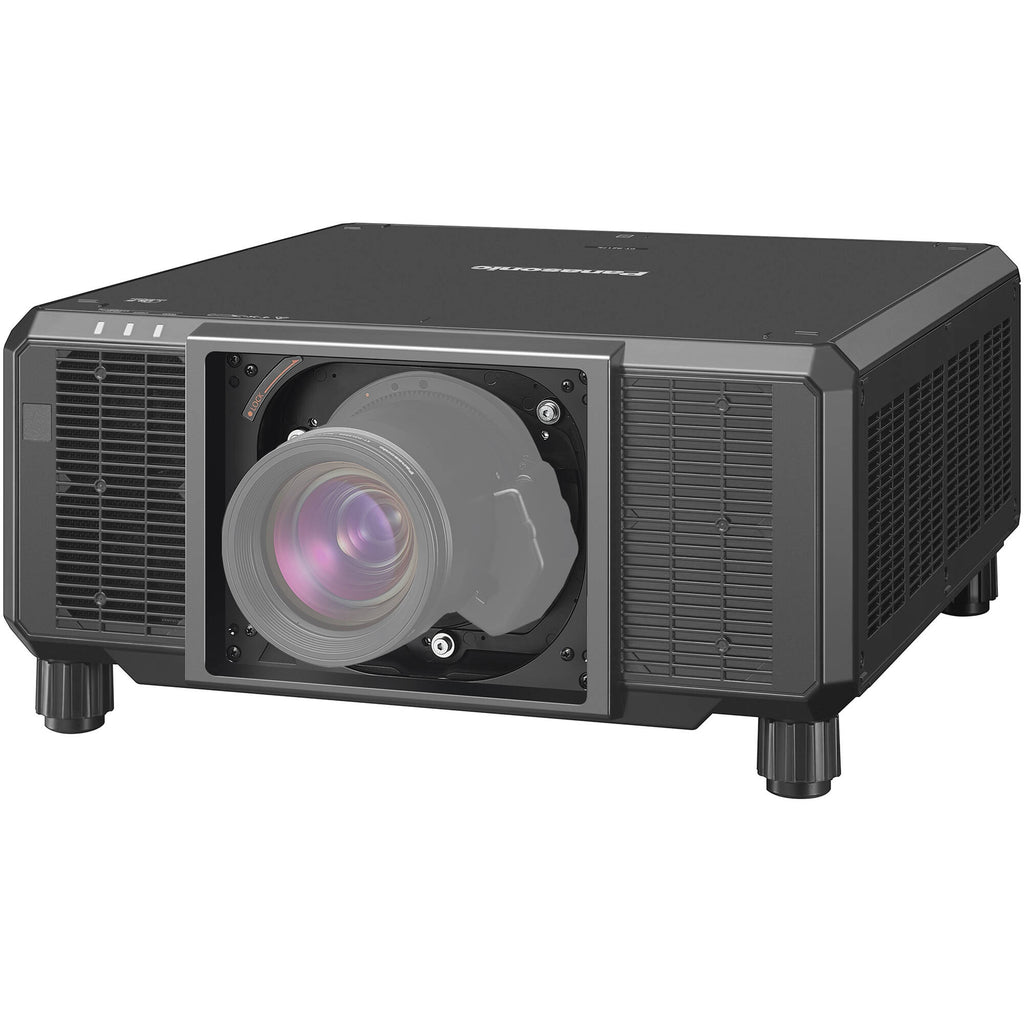

Experience efficiency and high-quality imagery with the Panasonic PT-RZ14KU 14,000-Lumen WUXGA 3DLP Laser Projector. Boasting 14,000 lumens while being lighter and more compact than its 12K predecessor, the PT-RZ14KU is ideal for event production, rental, and staging. Panasonic offers a full suite of lens options (sold separately) to cover a wide range of usage scenarios. Connectivity is available via HDMI, DisplayPort, and customizable with a slot to accept Intel Smart Display Modules (SDM). A number of control ports and BNC multi-projector/3D sync make for easy integration into larger networked systems. With a network connection and Panasonic's NFC functionality you can easily make settings adjustments by touch via smartphone. Additionally, Wi-Fi and screen mirroring are available with the AJ-WM50 Dual Band USB Wi-Fi Module (sold separately).
Compact and Efficient
Based on the groundbreaking RQ25K Series, RZ14KU weighs 20% less and is about 40% smaller than the previous RZ12K for efficient transport and installation. It supports existing 3-Chip DLP lenses and full-brightness projection on AC 100-240 V power. Intel Smart Display Module (Intel SDM)-ready slot integrates proprietary or third-party function boards that adapt and scale connectivity. Save time with the NFC function and user test-pattern registration. The projector also comes with a preactived upgrade kit for Panasonic's Geometry Manager Pro software to assist with projector control, brightness control, geometry adjustments, edge-blending, and color matching.
3DLP Laser Projection
The RZ14KU combines high brightness, resolution, contrast, and color accuracy for an awe-inspiring visual experience. Dynamic Contrast is to 25,000:1 and includes new scene analysis circuitry that better recognizes light and dark areas of the image, enhancing realism. Gradation Smoother provides easy correction of color banding, while the black level function offers control-point border adjustment for curved screens.
Reliable Long Life with Low Maintenance
The projector�s optical engine and laser light source module comply with the IP5X Dust Protected (IEC 60529) standard, and together with a filterless liquid cooling system, enable 20,000 plus hours of maintenance-free projection. Backup Input and Multi-Laser Drive Engine enhance reliability and add insurance against interruptions that impact the guest experience.
UPC: 885170417106
In the Box
- Panasonic PT-RZ14KU 14,000-Lumen WUXGA 3DLP Laser Projector (No Lens)
- Power Cord
- Lens Hole Cover
- Remote Control
- 2 x AA Battery for Remote
- Lens Fixing Screw
- Slot Adapter
- Limited 3-Year Manufacturer Warranty (Or 20,000 Hours, Whichever Comes First)
Not in the Box
- Essential Lenses & Lens Adapters (Not Included)
Table of Contents
- Description
- Compact and Efficient
- 3DLP Laser Projection
- Reliable Long Life with Low Maintenance
Panasonic RZ14KU Specs
Key Specs
| Display System |
3-Chip 0.80" DLP
|
| Native Chip Resolution |
1920 x 1200 (WUXGA)
|
| Maximum Brightness |
14,000 Lumens
14,700 Lumens (Center) |
| Supported HDR Input Formats |
No
|
| Inputs/Outputs |
2x HDMI Audio, Video Input
1x DisplayPort Audio, Video Input 1x BNC (VESA 3D Sync) Control, Data Input 1x BNC (VESA 3D Sync) Control, Data Output 1x DE-9/DB-9 (RS-232) Control Input 1x DE-9/DB-9 (RS-232) Control Output 1x 1/8" / 3.5 mm Mini Remote Input 1x 1/8" / 3.5 mm Mini Remote Output 1x DE-9/DB-9 Remote Input 1x USB-A Data, LAN Input 1x USB-A Power Output 1x RJ45 (Ethernet) LAN Input |
| Light Source |
Laser Phosphor
|
Image Display
| Display System |
3-Chip 0.80" DLP
|
| Native Chip Resolution |
1920 x 1200 (WUXGA)
|
| Supported Resolutions |
Maximum: WUXGA - 1920 x 1200 @ 120 Hz
|
| Maximum Brightness |
14,000 Lumens
14,700 Lumens (Center) |
| Aspect Ratio |
Native: 16:10
|
| Dynamic Contrast Ratio |
25,000:1
|
| DLP Link 3D |
Yes
|
| Supported 3D Formats |
Frame Sequential
Frame Packing Side by Side Top Bottom |
| Includes Lens |
No
|
Features
| Keystone Correction |
Vertical: ± 45°
Horizontal: ± 40° |
| Supported HDR Input Formats |
No
|
| Multi-Input Support (PIP/PBP) |
Not Specified by Manufacturer
|
| Ceiling Mountable |
Yes
|
| Rear Screen Projection |
Yes
|
| Built-In Speaker |
No
|
| Projection Tilt Option |
Yes
|
Input/Output Connectors
| Inputs/Outputs |
2x HDMI Audio, Video Input
1x DisplayPort Audio, Video Input 1x BNC (VESA 3D Sync) Control, Data Input 1x BNC (VESA 3D Sync) Control, Data Output 1x DE-9/DB-9 (RS-232) Control Input 1x DE-9/DB-9 (RS-232) Control Output 1x 1/8" / 3.5 mm Mini Remote Input 1x 1/8" / 3.5 mm Mini Remote Output 1x DE-9/DB-9 Remote Input 1x USB-A Data, LAN Input 1x USB-A Power Output 1x RJ45 (Ethernet) LAN Input |
| HDCP Support |
Yes, Version 2.3
|
| Number of Expansion Slots |
1
|
Hardware
| Mobile App Compatible |
Yes: Android & iOS
|
| Wireless LAN / Wi-Fi |
No, Optional Adapter Available
|
| Bluetooth |
No
|
General
| Light Source |
Laser Phosphor
|
| Expected Lamp Life |
Full Brightness: 20,000 Hours
|
| Fan Noise |
Full Brightness: 40 dB
|
| AC Input Power |
100 to 240 VAC, 50 / 60 Hz
|
| Power Consumption |
Full Brightness: 970 W
Low Brightness: 760 W |
| Operating Temperature |
32 to 113°F / 0 to 45°C
|
| Operating Humidity |
10 to 80% ()
|
| Dimensions (W x H x D) |
21.7 x 8.7 x 22.4" / 550.0 x 220.0 x 570.0 mm excluding protrusions
21.7 x 10.6 x 22.4" / 550.0 x 269.0 x 570.0 mm with the feet at the shortest position |
| Weight |
77.2 lb / 35 kg
|
