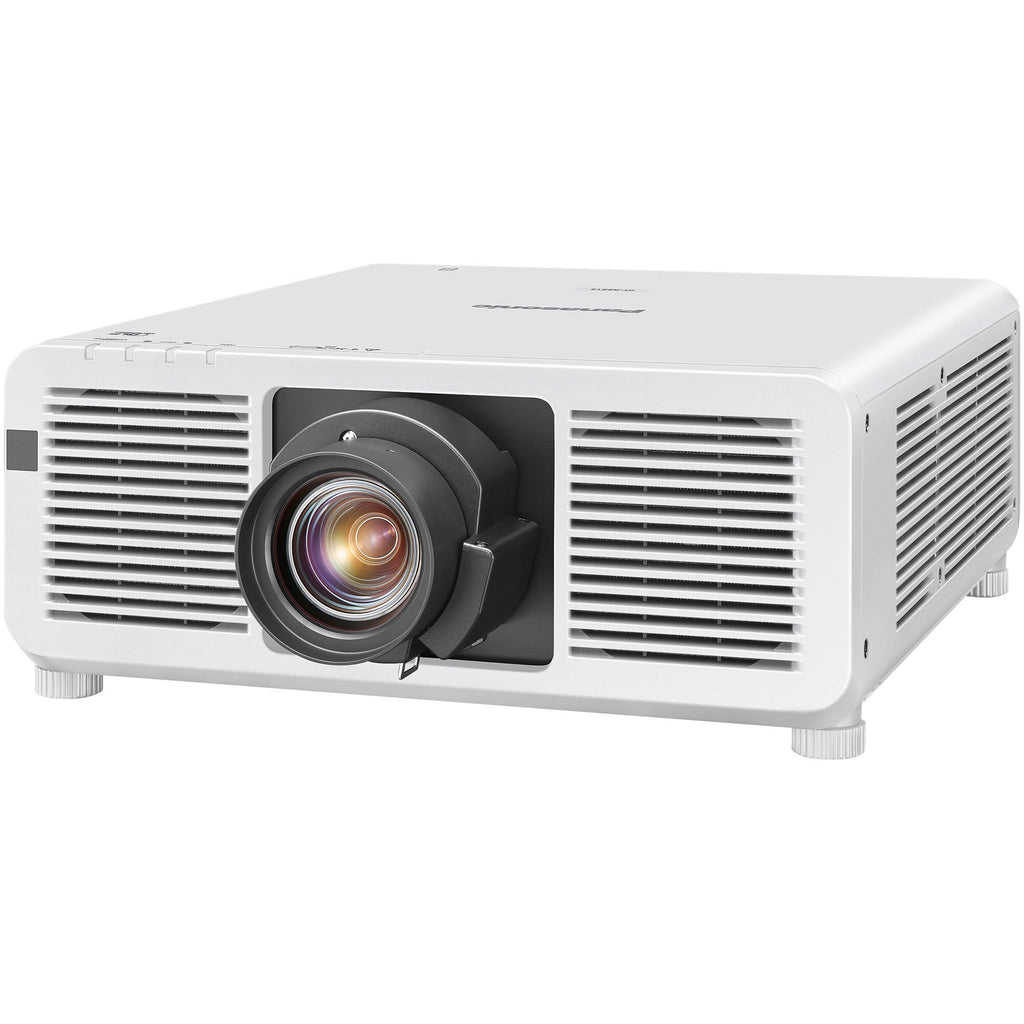

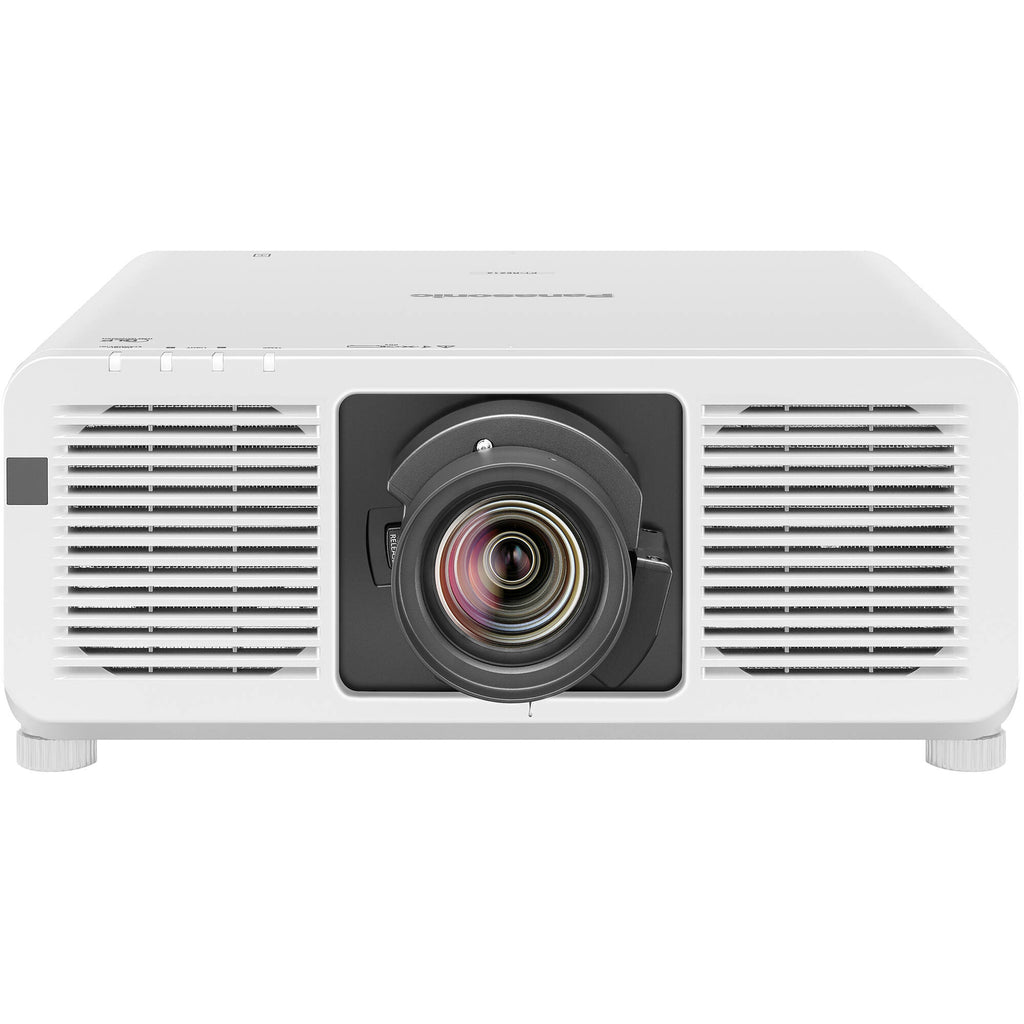

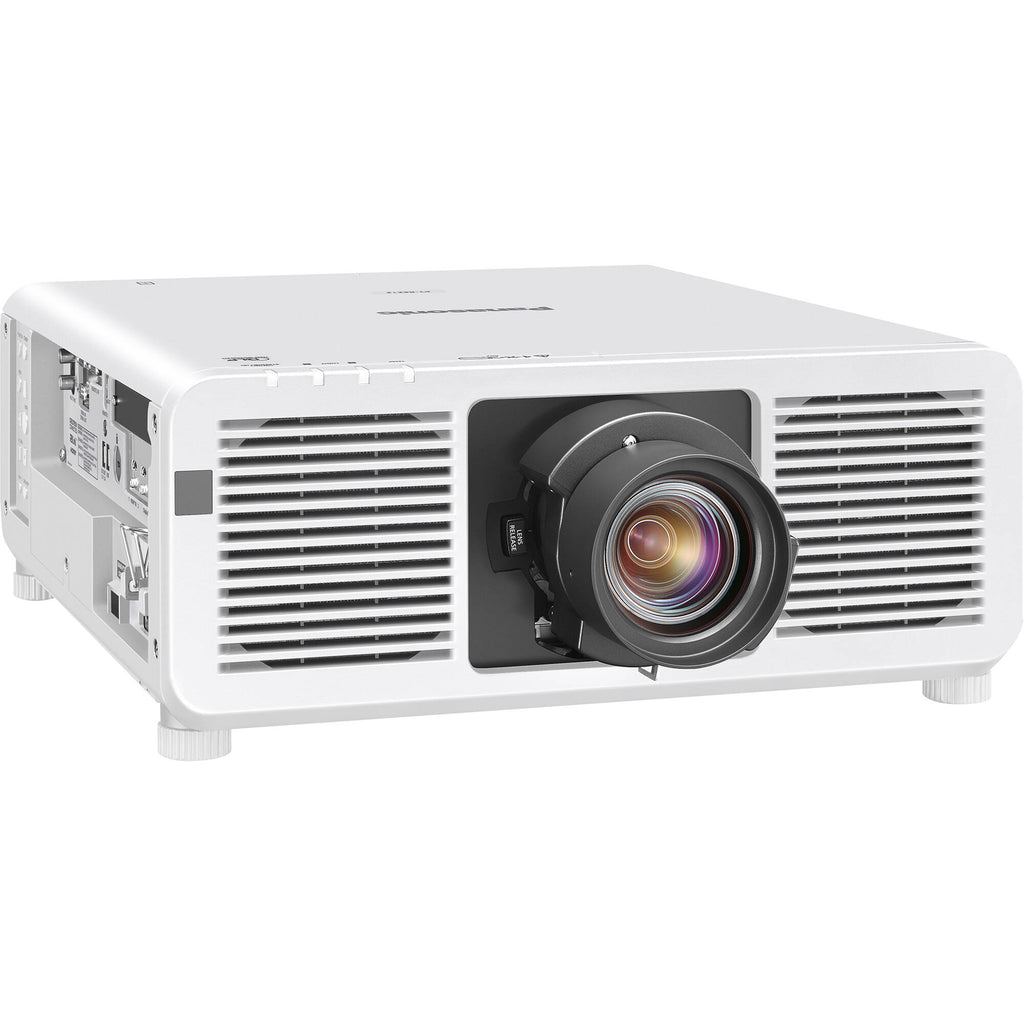

Panasonic PT-REZ12WU7 12,000-Lumen WUXGA DLP Laser Projector (White)

High-Contrast and Diverse Content Support

New scene-recognition circuitry and a higher 25,000:1 contrast ratio improve Dynamic Contrast dramtically. Rich Color Enhancer revitalizes color expression to reproduce artwork accurately. Black-level adjustment evolves to enable seamless blending on curved screens, while Gradation Smoother easily corrects color banding. Content with a 21:9 aspect ratio is also supported.

Gradation Smoother and Detail Clarity Processor resolve imperfections for an overwhelmingly realistic experience. Panasonic�s black-level adjustment can eliminate distracting black-level bumps that can sometimes appear in blends outside of the image display area after geometric adjustment is applied. By unlinking black-level adjustment from geometric adjustment, black-level settings can be applied to the entire blend, including the image overlaps outside the image display area, for a completely seamless multi-screen image.

Supports Widescreen Input Signals

Single-chip DLP projectors are a popular way to unite on-site and remote teams in hybrid conferencing spaces. The latest video-conferencing software layouts can output a 21:9 signal to a REZ12 Series projector so that the faces of remote participants appear along the bottom of the screen at eye level with those seated in the room. This promotes natural and fluent communication between members of the group. In addition, with more games, films, documentaries, and other immersive content being produced with a 21:9 aspect ratio, it makes sense to invest in a projector that can deliver a cinematic experience.

Maintenance-Free Operation

The REZ12 Series features an optical engine and laser light source module compliant with the IP5X Dust Protected (IEC 60529) standard and a refined liquid cooling system that enable up to 20,000 hours of maintenance-free projection. Backup Input switches to a secondary signal to prevent interruptions if the primary is disrupted.

Wide Scalability with Intel SDM-Ready Slot

To adapt projection to any situation, the REZ12 Series works with new optional lenses and features an Intel SDM-ready slot to integrate optional function boards that expand and scale connectivity. You can import custom test patterns, use NFC function to save prep time, and streamline adjustment with preactivated Geo Pro upgrade kits.

Installation and Integrator Friendly

Lightweight and easy to handle, the REZ12 Series smooths out workflow hassle with a flexible design to fit confined installation spaces. It suits new lenses with powered periphery focus and a wider shift range. Intel SDM-ready slot expands connectivity, while a new sensor enables projection angle display via GUI. Preactivated upgrade kits for Geo Pro and improved black level adjustment save time when mapping on curved screens.

The REZ12 Series is near the peak of 1-Chip DLP projector evolution with intuitive features that make life easy for integrators and operators, especially at events where setup time is limited. You can use Remote Preview Lite to check content before projection, import custom test patterns, prep for setup without AC power using NFC function, and control and adjust up to 64 projectors from your smartphone.

Additional Features

• LAN control support for Art-Net DMX, PJLink, Crestron Connected V2, Crestron XiO Cloud, Extron XTP, and IPv6
• 1 x USB-A for DC 5V 2A power supply
• 1 x USB-A for optional AJ-WM50 Series wireless module or transfer from USB memory devices
• Full 360° installation capable
• Quick on and off with laser light source
• Multi-screen support system
• DICOM simulation mode
• Waveform monitor function
• Power management system

Panasonic PT-REZ12Specs

Display System	1-Chip 0.80" DLP
Native Resolution	1920 x 1200
Maximum Brightness	12,000 Lumens (ISO)
Throw Ratio	1.36 to 2.10:1 (200" Screen Size @ 24.6' / 7.5 m)
Projection Size	70 to 700" / 1.8 to 17.8 m
HDR Support	Yes
Inputs/Outputs	2x HDMI Audio, Video Input 1x DisplayPort Audio, Video Input 1x USB-A Data, LAN Input 1x USB-A Power Output 1x RJ45 (Ethernet) Control, Data, LAN Input/Output 1x DE-9/DB-9 (RS-232) Control Input 1x DE-9/DB-9 (RS-232) Control Output 1x BNC Control Input 1x BNC Control Output 1x 1/8" / 3.5 mm Mini Remote Input 1x 1/8" / 3.5 mm Mini Remote Output 1x DE-9/DB-9 Remote Input
Light Source	Laser Phosphor

Display System	1-Chip 0.80" DLP
Native Resolution	1920 x 1200
Supported Resolutions	Maximum: 3840 x 2400
Maximum Brightness	12,000 Lumens (ISO)
Aspect Ratio	Native: 16:10 Supported: 16:9
Dynamic Contrast Ratio	25,000:1

Includes Lens	Yes
Focus	Manual Powered
Aperture	f/1.84 to 2.31
Focal Length	23.9 to 37.2mm
Lens Shift	Vertical: ± 60% Horizontal: ± 29%
Optical Zoom	Powered:
Throw Distance	6.73 to 108.33' / 2.05 to 33.02 m
Throw Ratio	1.36 to 2.10:1 (200" Screen Size @ 24.6' / 7.5 m)
Projection Size	70 to 700" / 1.8 to 17.8 m

Keystone Correction	Manual to Vertical: ± 40° Manual to Horizontal: ± 40°
HDR Support	Yes
Multi-Input Support (PIP/PBP)	Not Specified by Manufacturer
Ceiling Mountable	Yes
Rear Screen Projection	Yes
Built-In Speaker	No
Projection Tilt Option	Yes

Inputs/Outputs	2x HDMI Audio, Video Input 1x DisplayPort Audio, Video Input 1x USB-A Data, LAN Input 1x USB-A Power Output 1x RJ45 (Ethernet) Control, Data, LAN Input/Output 1x DE-9/DB-9 (RS-232) Control Input 1x DE-9/DB-9 (RS-232) Control Output 1x BNC Control Input 1x BNC Control Output 1x 1/8" / 3.5 mm Mini Remote Input 1x 1/8" / 3.5 mm Mini Remote Output 1x DE-9/DB-9 Remote Input
HDCP Support	Yes, Version 2.3
Media/Memory Card Slot	No
Number of Expansion Slots	1

Mobile App Compatible	Yes: Android & iOS
Wireless LAN / Wi-Fi	No
Bluetooth	No

Light Source	Laser Phosphor
Expected Lamp Life	Medium Brightness: 20,000 Hours Low Brightness: 24,000 Hours
Fan Noise	Medium Brightness: 39 dB
Security	Cable Lock Slot Password Protection
Input Power	100 to 240 VAC, 50 / 60 Hz
Power Consumption	Full Brightness: < 995 W
Operating Conditions	32 to 113°F / 0 to 45°C at 10 to 80% Humidity
Dimensions (W x H x D)	19.6 x 8.3 x 25.5" / 498.0 x 212.0 x 648.0 mm (with Lens and Feet) 19.6 x 7.7 x 21.2" / 498.0 x 196.0 x 538.0 mm (without Lens and Feet)
Weight	63.5 lb / 28.8 kg

Package Weight	80.5 lb
Box Dimensions (LxWxH)	33 x 25.5 x 14.5"
