Description
Panasonic REQ10L Overview
- 1Description
- 2Quad Pixel Drive
- 3Gradation Smoother
- 4Evolved Dynamic Contrast
- 5Detail Clarity Processor 4
- 6Multi-Screen Black Level Adjustment
- 721:9 Widescreen
- 8Test Patterns and Calibration
- 9Smart Projector Control App
- 10NFC Projector Prep:
- 11Remote Control Screen Adjustment
- 12Pre-Activated Upgrade Kits
- 13Fast Angle Correction
- 14Remote Preview LITE
- 15Input Insurance
- 16Failover Circuitry
By Photo's
John Foldi
When equipped with a supported lens (not included), the black, Quad Pixel Drive-powered, TAA-compliant Panasonic PT-REQ10L 10,000-Lumen WUXGA Laser DLP Projector offers a 1920 x 1200 resolution, but is capable of accepting content up to 4K for large venues with an incredibly bright 10,000 lumens. Even fast-motion video is supported with 240 Hz refresh on up to 2K resolution footage and a low 6 ms latency. Many features are offered for remote and customized setup and management, even with the projector powered off. The PT-REQ10L is also extremely reliable, with a IP5X dust-resistant design and water-cooled multi-laser light that do not require filters and offer nearly maintenance-free operation for up to 20,000 hours.
Quad Pixel Drive
In addition to 4K and fast 2K240 support, the Quad Pixel Drive also features Dynamic Contrast for higher white brightness and deeper blacks, along with two modes of Rich Color Enhancer. Dynamic mode balances brightness and color, while Standard mode expands the red-channel output for more accurate artwork reproduction. These result in crisp images with no visible pixels or pixel-gridding, even when viewed up close.
Gradation Smoother
Three levels of color banding reduction is possible, which can be useful when time and/or budget do not permit additional content editing.
Evolved Dynamic Contrast
Each video frame is analyzed in real-time, where light output is continuously and automatically adjusted to optimize contrast.
Detail Clarity Processor 4
This helps to create a clear and lifelike image by analyzing low to ultra-high frequencies and using image quality correction circuitry to optimize each area.
Multi-Screen Black Level Adjustment
- Curved Screens: Using up to 17 control points set to within a half-pixel margin, black borders on curved screens can be eliminated when blending multiple projections on curved screens.
- Inside/Outside Display Area: Black level and geometric adjustment are unlinked, helping to eliminate distracting black-level bumps that can appear in blended images.
21:9 Widescreen
True-to-life cinematic visuals are possible with 21:9 widescreen input signal support using multimedia content, but can also benefit conferencing applications, where all remote guests remain at eye level across the width of the projection.
Test Patterns and Calibration
You have a variety of options when calibrating the PT-REQ10L. Use one of ten built-in test patterns, import and save up to three custom test patterns, or use saved BMP or PNG images of the content to be projected.
Smart Projector Control App
With simple QR code scans, you can use this app to setup and operate the PT-REQ10L and up to 63 others simultaneously. Without any need to enter OSD menus, you can do things like adjust test patterns, lens settings, focus adjustment, and more.
NFC Projector Prep:
Using a mobile device and NFC technology, you can prepare your projector without it even being powered on. Tap the decal on the PT-REQ10L to use the Smart Projector Control app to adjust settings that can then be applied when the projector is finally setup and powered on. This feature also lets you restore the PT-REQ10L to factory defaults when powered off.
Remote Control Screen Adjustment
Use the included remote control and Free Grid to make vertical and horizontal control point adjustments to fix distorted images, whether it be due to uneven surfaces or a curved screen. Choose different grid patterns from 2 x 2 to 17 x 17. Changes are saved automatically and can be done over a background image.
Pre-Activated Upgrade Kits
The PT-REQ10L comes with pre-activated upgrade kits for the free Geometry Manager Pro software. You get ET-CUK10 Auto Screen Adjustment and ET-UK20 Geometry Manager Pro upgrade kits. They add edge-blending, color uniformity, masking tools, and automatic edge-blending calibration features.
Fast Angle Correction
Finding the current orientation and installation angle is now as easy as checking the OSD menu. An embedded gyro sensor detects changes to pitch and roll angles, displaying their values on-screen in the OSD menu.
Remote Preview LITE
Accessed via software or web browser on a laptop, projectionists can preview the content's input signal as thumbnails on a laptop. A useful feature when actual screen testing and checking is not logistically possible.
Input Insurance
Using both HDMI inputs, two sources with identical content can be sent to the projector. If one should fail, the projector will automatically switch to the backup source in roughly 0.3 seconds. Fast enough for seamless projection without any partially blank sections.
Failover Circuitry
If one laser diode fails, rather than power being cut for a significant drop in brightness, built-in failover circuitry kicks in to continue to supply electricity to the remaining diodes to minimize brightness loss.
UPC: 885170405394
In the Box
- Panasonic PT-REQ10L 10,000-Lumen WUXGA Laser DLP Projector (No Lens, Black, TAA Compliant)

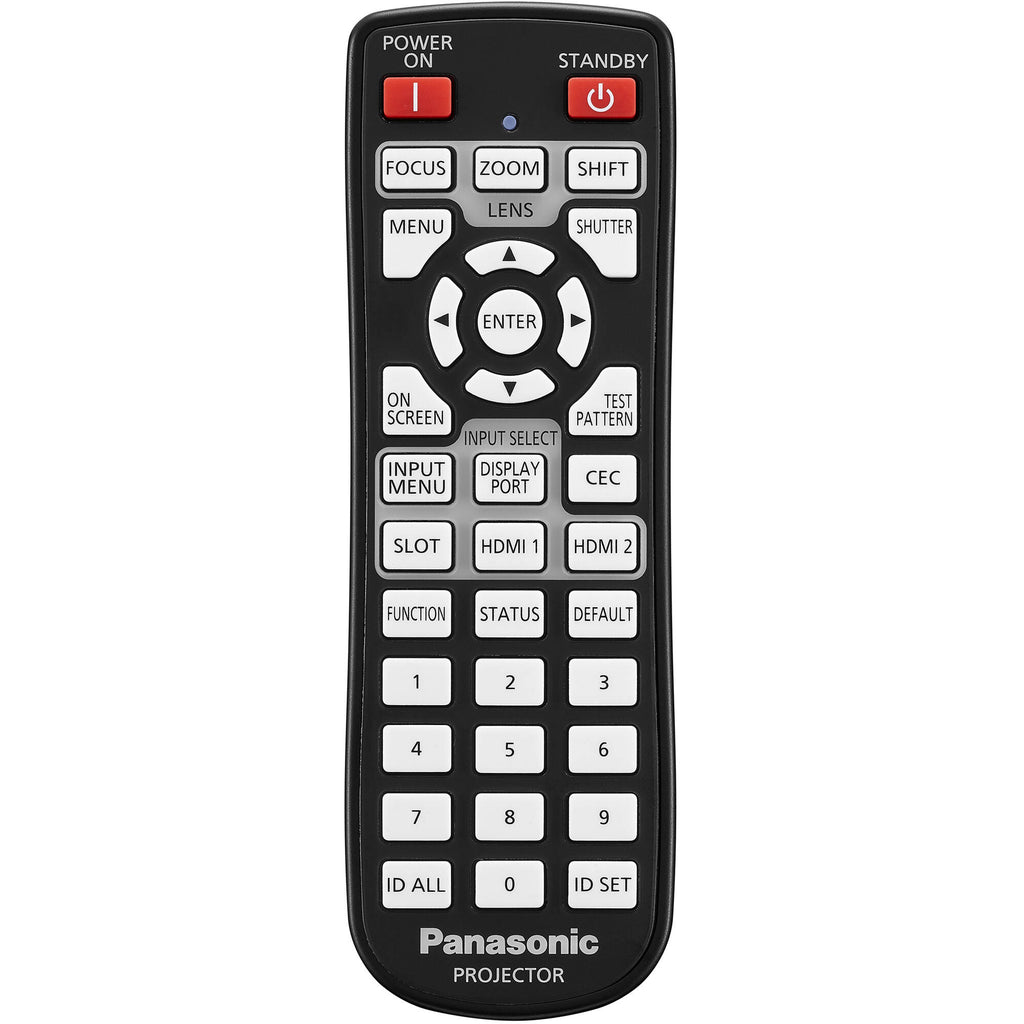

- Remote Control
- Limited 3-Year Manufacturer Warranty (Excluding Light Source)
Not in the Box
- Essential Lenses & Lens Adapters (Not Included)
Table of Contents
- Description
- Quad Pixel Drive
- Gradation Smoother
- Evolved Dynamic Contrast
- Detail Clarity Processor 4
- Multi-Screen Black Level Adjustment
- 21:9 Widescreen
- Test Patterns and Calibration
- Smart Projector Control App
- NFC Projector Prep:
- Remote Control Screen Adjustment
- Pre-Activated Upgrade Kits
- Fast Angle Correction
- Remote Preview LITE
- Input Insurance
- Failover Circuitry
Panasonic REQ10L Specs
Key Specs
| Display System |
1-Chip 0.80" DLP
|
| Native Chip Resolution |
1920 x 1200 (WUXGA)
|
| Maximum Brightness |
10,000 Lumens (Center)
|
| Supported HDR Input Formats |
No
|
| Inputs/Outputs |
2x HDMI Audio, Video Input
1x DisplayPort Audio, Video Input 1x BNC Video Input 1x BNC Video Output 1x DE-9/DB-9 (RS-232) Control Input 1x DE-9/DB-9 (RS-232) Control Output 1x 1/8" / 3.5 mm Mini Remote Input 1x 1/8" / 3.5 mm Mini Remote Output 1x DE-9/DB-9 Remote Input 1x RJ45 (Ethernet) LAN Input/Output 1x USB-A Data Input 1x USB-A Power Output |
| Light Source |
Laser Phosphor
|
Image Display
| Display System |
1-Chip 0.80" DLP
|
| Native Chip Resolution |
1920 x 1200 (WUXGA)
|
| Supported Resolutions |
Maximum: 4K UHD - 3840 x 2160
|
| Maximum Brightness |
10,000 Lumens (Center)
|
| Aspect Ratio |
Native: 16:10
Supported: 21:9 |
| Contrast Ratio |
25,000:1
|
| Latency |
6 ms
|
Lens
| Includes Lens |
No
|
Features
| Supported HDR Input Formats |
No
|
| Multi-Input Support (PIP/PBP) |
Not Specified by Manufacturer
|
| Ceiling Mountable |
Yes
|
Input/Output Connectors
| Inputs/Outputs |
2x HDMI Audio, Video Input
1x DisplayPort Audio, Video Input 1x BNC Video Input 1x BNC Video Output 1x DE-9/DB-9 (RS-232) Control Input 1x DE-9/DB-9 (RS-232) Control Output 1x 1/8" / 3.5 mm Mini Remote Input 1x 1/8" / 3.5 mm Mini Remote Output 1x DE-9/DB-9 Remote Input 1x RJ45 (Ethernet) LAN Input/Output 1x USB-A Data Input 1x USB-A Power Output |
| HDCP Support |
Yes, Version 2.3
|
| Media/Memory Card Slot |
No
|
| Number of Expansion Slots |
1
|
Hardware
| Mobile App Compatible |
Yes: Android & iOS
App Name: Smart Projector Control Functionality: Adjust Settings, Setup |
| Bluetooth |
No
|
General
| Light Source |
Laser Phosphor
|
| Expected Lamp Life |
Full Brightness: 20,000 Hours
Low Brightness: 24,000 Hours |
| Fan Noise |
Full Brightness: 36 dB
Low Brightness: 33 dB |
| AC Input Power |
100 to 240 VAC, 50 / 60 Hz
|
| Power Consumption |
Full Brightness: 870 W
Medium Brightness: 725 W Low Brightness: 555 W |
| Operating Temperature |
32 to 113°F / 0 to 45°C
|
| Operating Humidity |
10 to 80%
|
| Dimensions (W x H x D) |
19.6 x 8.3 x 21.2" / 498.0 x 212.0 x 538.0 mm
|
| Weight |
59.5 lb / 27 kg
|
