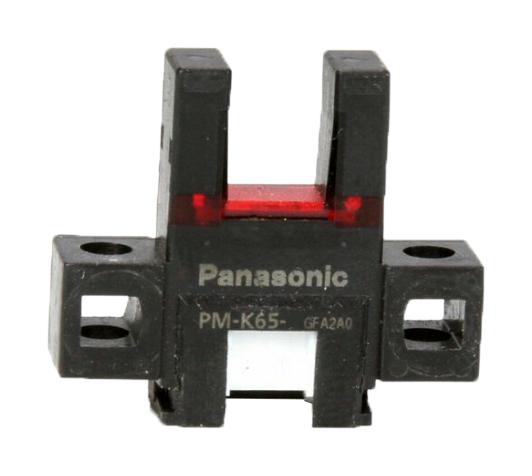

PM-K65 is a PM-65 series, U-shaped micro photoelectric sensor with amplifier built-in. It features reverse supply polarity protection circuit, reverse output polarity protection circuit, output short-circuit protection circuit. It has ample beam emitting / receiving distance of 0.236inch. It is used in applications such as positioning of a pallet, sensing the starting point and overrun of a moving body, sensing the starting point on a rotating body.
- Beam marks for easy adjustment
- Large and easy to see multi-angle operation indicator
- Resistant to vibrations and impacts
- NPN open-collector transistor output
- Incorporated with 2 outputs: Light-ON/Dark-ON output operation
- 0.236 in (fixed) sensing mode, K type
- 0.0004 in or less repeatability, supply voltage is 5V to 24VDC ±10% ripple P-P 10% or less
- IP40 (IEC) protection, enclosure: PBT, display section: polycarbonate material
- Ambient temperature range from -25 to +55°C (no dew condensation or icing allowed)
- Current consumption is 15mA or less
Product details
| Sensor Output:
NPN Open Collector
|
| Sensing Range Max:
6mm
|
| Supply Voltage DC Min:
5V
|
| Supply Voltage DC Max:
24V
|
| Output Current:
50mA
|
| Product Range:
PM-65 Series
|
Other details
| Brand |
PANASONIC |
| Part Number |
PM-K65 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
