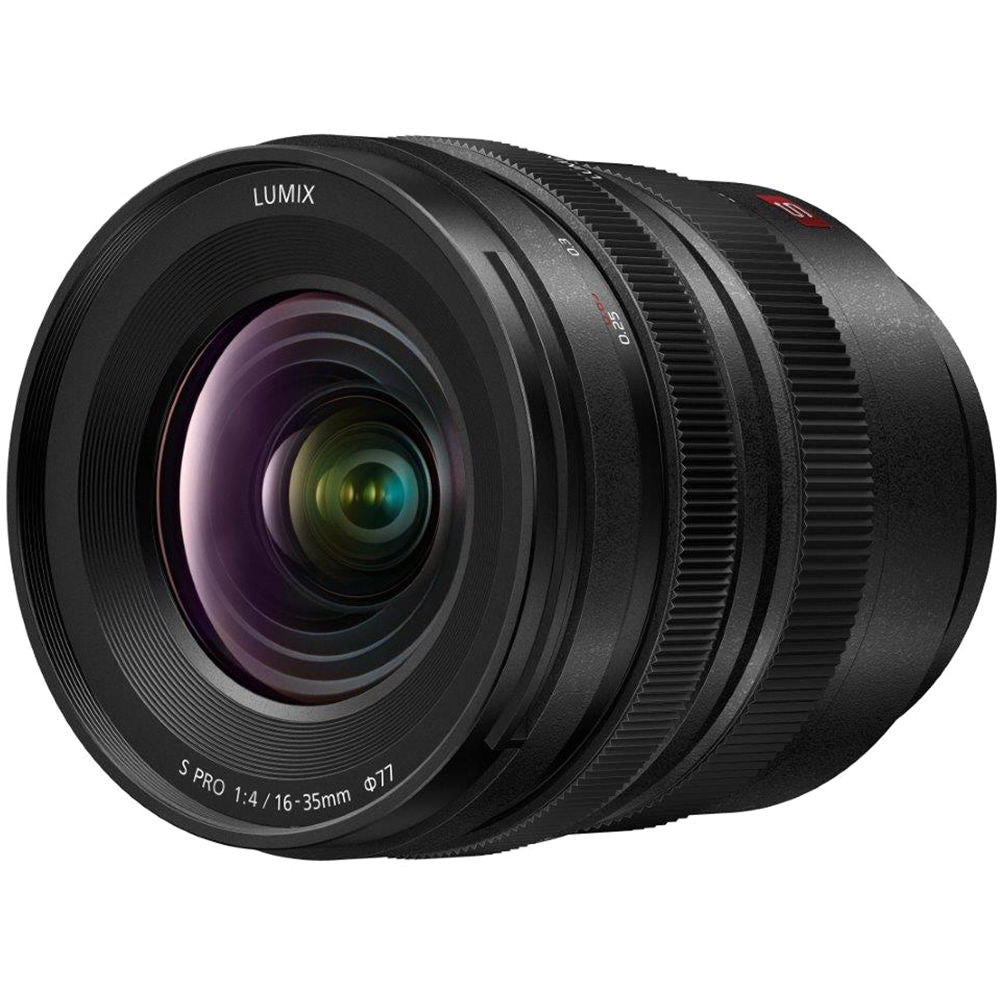

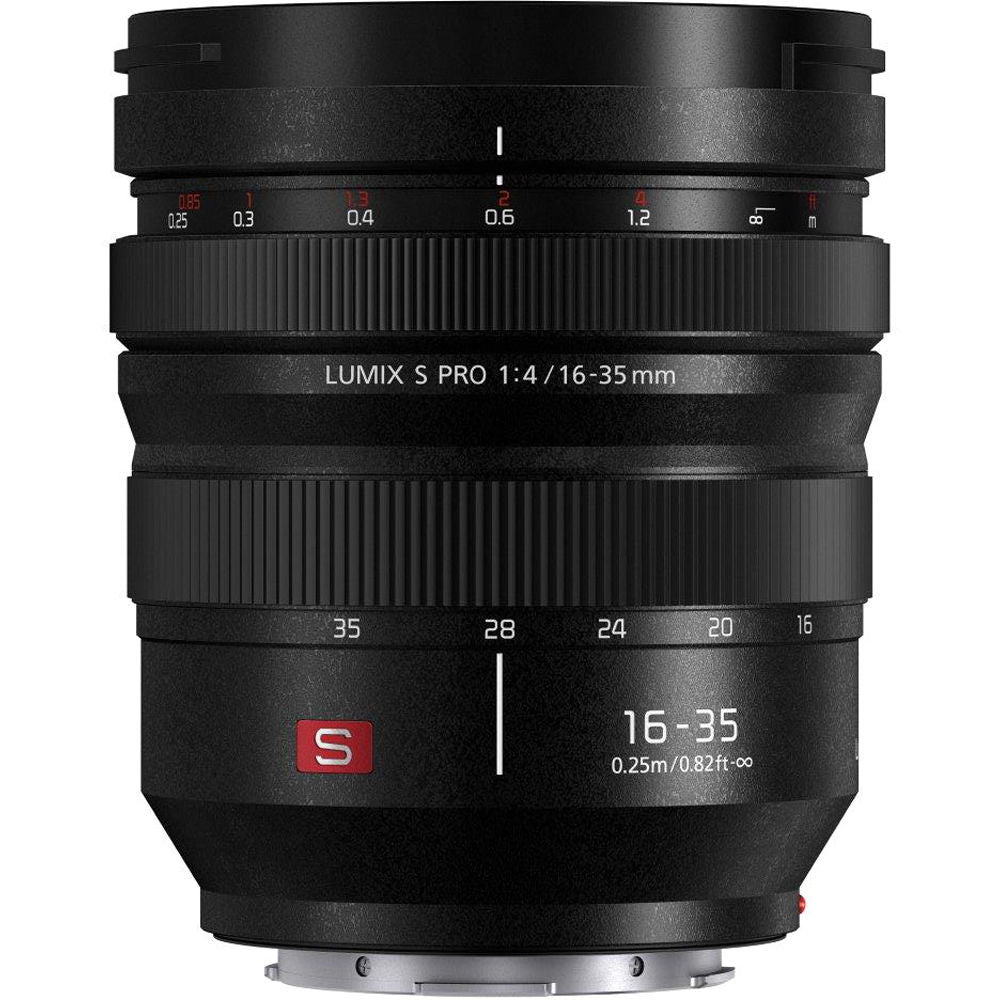

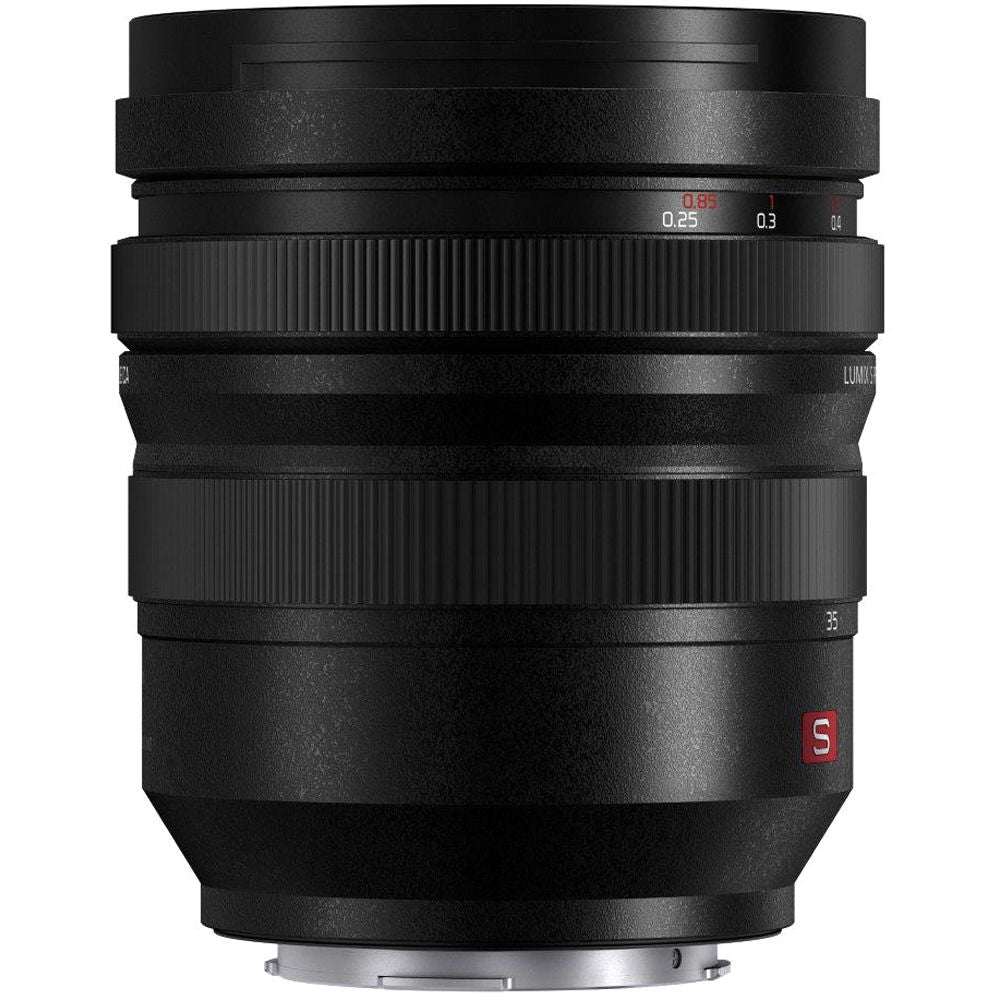

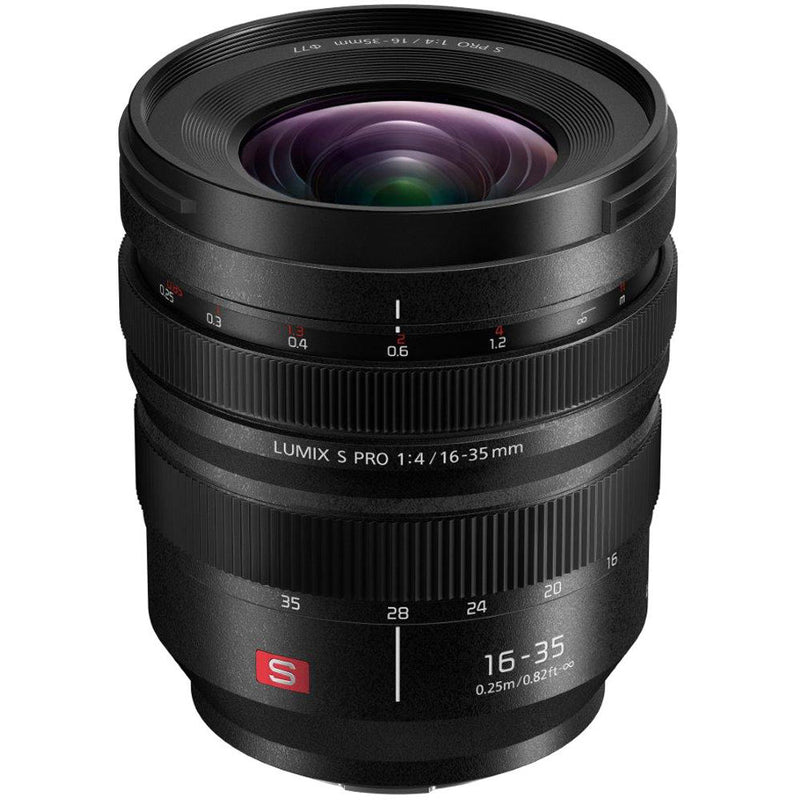

Panasonic Lumix S PRO 16-35mm f/4 Overview
Panasonic Updates: 2 New Lumix S Pro Lenses and Firmware Updates | First Look
A staple of wide-angle versatility, the Lumix S PRO 16-35mm f/4 from Panasonic is an L-mount wide zoom featuring an f/4 constant maximum aperture. An optimized optical design incorporates a series of aspherical, low dispersion, and high refractive index elements, to control a variety of aberrations, color fringing, and distortion for sharp, clear, well-corrected imagery throughout the zoom range. Complementing the optics is a unique double-magnet linear motor focus system, which provides high-speed response and power while remaining compact in size. The lens also sports a rounded nine-blade diaphragm, which contributes to the quality of bokeh, and a weather-sealed construction to suit working in a variety of weather conditions.
Wide-angle zoom is designed for full-frame L-mount mirrorless cameras, however can also be used with APS-C models where it provides a 24-52.5mm equivalent focal length range.
Constant f/4 maximum aperture maintains consistent illumination throughout the zoom range.

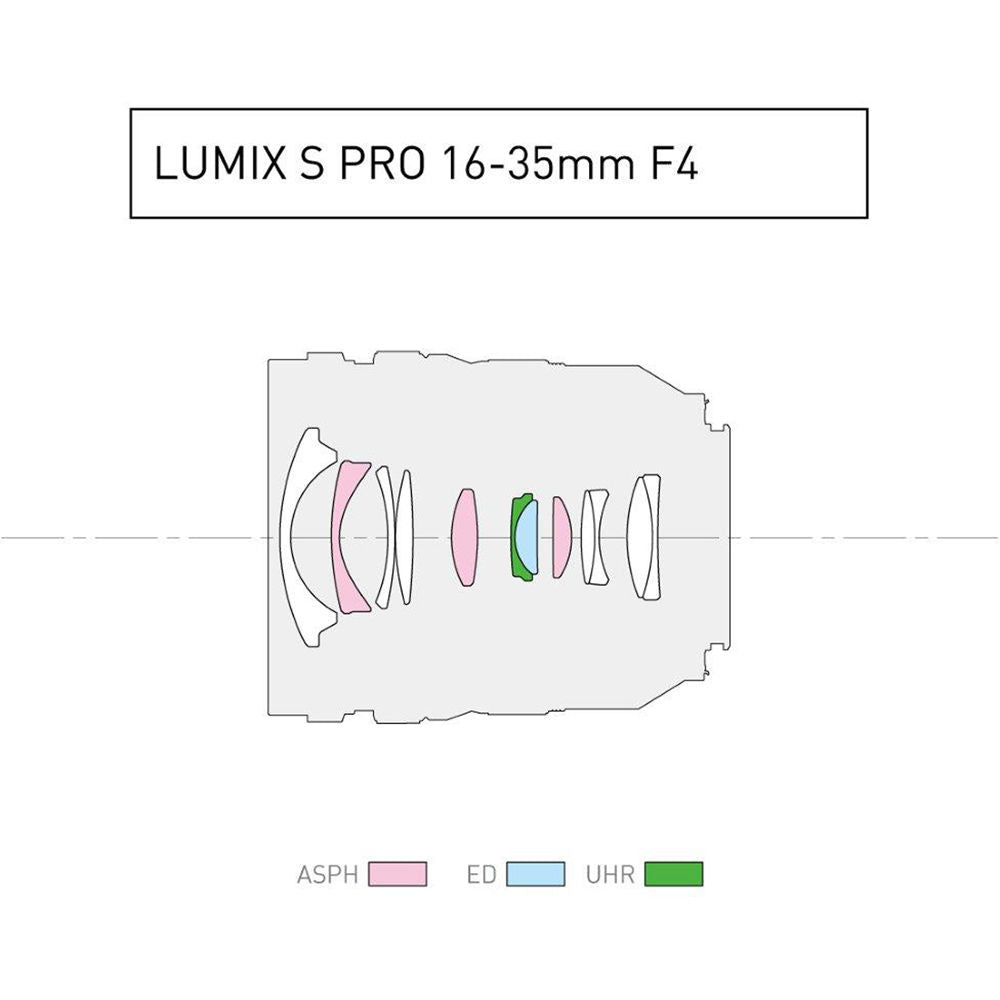

Three aspherical elements and one ultra-high refractive index element help to minimize distortions and spherical aberrations throughout the zoom range in order to maintain edge-to-edge sharpness and illumination.
One extra-low dispersion element greatly reduces chromatic aberrations and color fringing in order to produce a high degree of clarity and color accuracy.
The autofocus focus system employs both a double-magnet linear motor to deliver impressively fast and precise focusing performance while remaining compact. A focus clutch mechanism has also been incorporated, which allows for near-instant AF/MF switching.
Splash, dust, and freezeproof design benefits working in inclement weather conditions down to -14°F.
Rounded nine-blade diaphragm contributes to a pleasing bokeh quality.
![]()
UPC: 885170371750
Panasonic Lumix S PRO 16-35mm f/4 Specs
| Focal Length | 16 to 35mm |
| Maximum Aperture | f/4 |
| Minimum Aperture | f/22 |
| Lens Mount | Leica L |
| Format Compatibility | Full-Frame |
| Angle of View | 107° to 63° |
| Minimum Focus Distance | 9.84" / 25 cm |
| Maximum Magnification | 0.23x |
| Optical Design | 12 Elements in 9 Groups |
| Diaphragm Blades | 9, Rounded |
| Focus Type | Autofocus |
| Image Stabilization | No |
| Filter Size | 77 mm (Front) |
| Dimensions (ø x L) | 3.35 x 3.92" / 85 x 99.6 mm |
| Weight | 1.1 lb / 500 g |
Packaging Info
| Package Weight | 2.245 lb |
| Box Dimensions (LxWxH) | 10.2 x 5.6 x 5.5" |
