Description

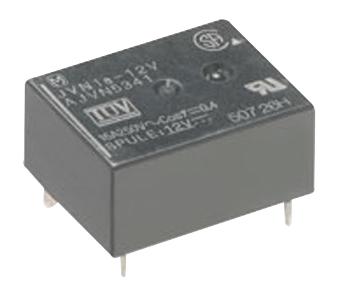

The JV-N series compact flat Power Relay suitable for heater loads. Represses contact terminal heat The contact terminals are larger and thicker compared to the existing JV relay. This limits the rise in temperature of the terminals when there is a large current flowing to approximately 28°C (normal current of 16A).
- High 16A capacity
- The contacts are high capacity 16A, 125VAC
- Compact, flat type with low 10.9mm height
- High sensitivity at 200mW
- High sensitivity at 200mW coil power consumption
Industrial, Audio, Imaging, Video & Vision
Other details
| Brand | PANASONIC |
| Part Number | JVN1AF-5V-F |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Product Change Notice EN | |
