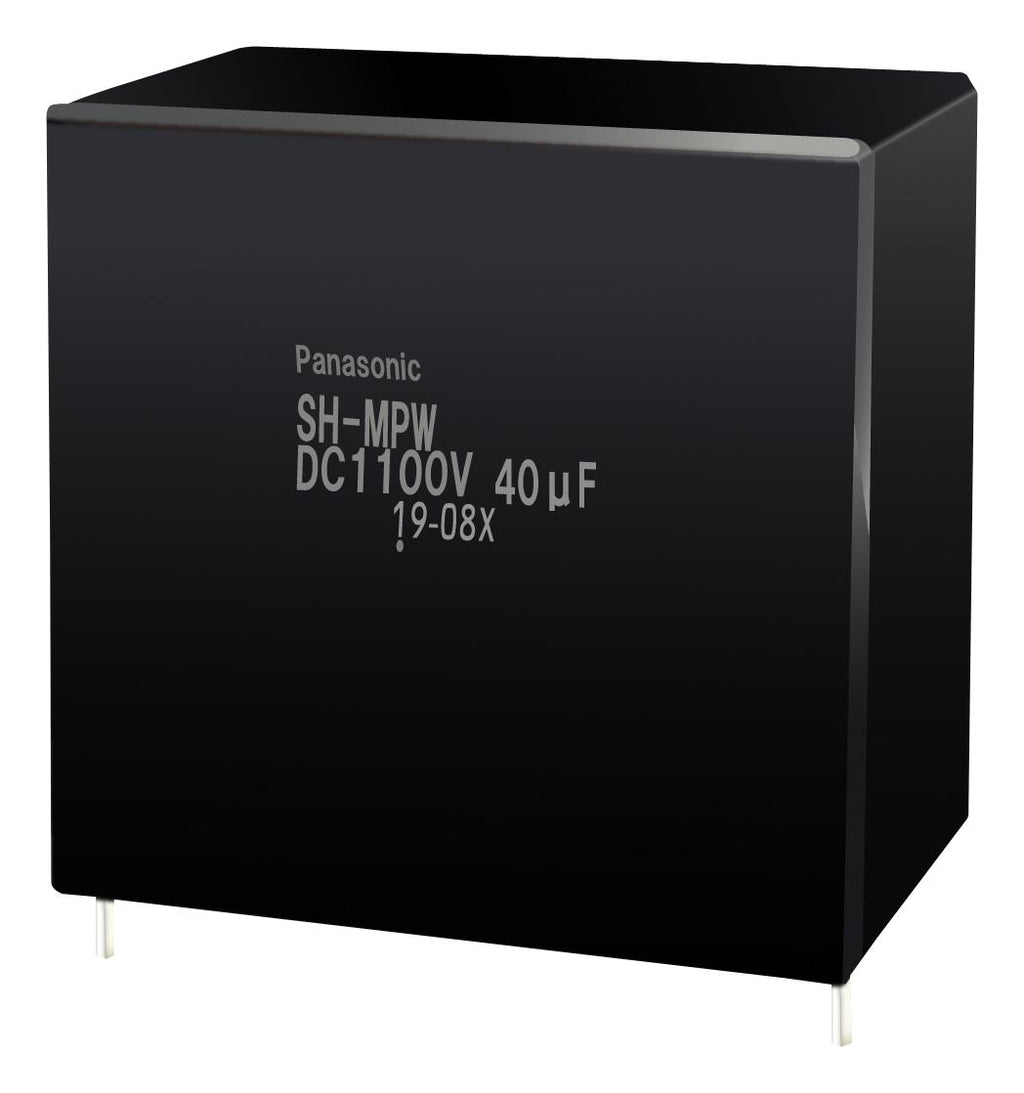

EZPV series plastic film capacitors with high safety (with safety function). These metallized polypropylene film capacitors are suitable for DC filtering, DC link circuit, solar inverters, wind power generation, industrial power supplies, inverter circuit in appliances (air conditioners etc) and on board charger, AC/DC, DC/DC converter for automotive.
- Long product life, high reliability
- Low loss, low ESR
- Flame retardant (case and sealing resin)
- Metallized dielectric with segmented pattern electrodes
- UL94 V-0 plastic case and sealing
- Tinned wires, 2-pin type
- 27.5mm pitch (for automotive)
- AEC-Q200 compliant
Product details
| Dielectric Type:
Metallized PP
|
| Capacitor Case / Package:
Radial Box - 2 Pin
|
| Capacitance:
14µF
|
| Capacitance Tolerance:
± 10%
|
| Typical Applications:
DC Link
|
| Capacitor Mounting:
Through Hole
|
| Voltage(AC):
-
|
| Voltage(DC):
700V
|
| Humidity Rating:
-
|
| Capacitor Terminals:
Radial Leaded
|
| Lead Spacing:
27.5mm
|
| dv/dt Rating:
35V/µs
|
| Peak Current:
490A
|
| RMS Current (Irms):
15.3A
|
| ESR:
0.0087ohm
|
| Product Diameter:
-
|
| Product Length:
31mm
|
| Product Width:
26mm
|
| Product Height:
41mm
|
| Ripple Current:
-
|
| Output (kvar):
-
|
| Product Range:
EZPV Series
|
| Operating Temperature Min:
-40°C
|
| Operating Temperature Max:
105°C
|
| Qualification:
AEC-Q200
|
Other details
| Brand |
PANASONIC |
| Part Number |
EZPV70146LTU |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
