Panasonic's ETQP Series Metal Composite Type Power Choke Coils are suited for filter, step-down and step-up circuits for DC/DC converters. They are AEC-Q200 Compliant offering reliability when exposed to high temperatures along with a high resistance to vibration.
- Vibration Resistance of 10G ~ 30G (5Hz - 2kHz)
- Up to 40% Smaller
- Maximum Operating Temperature of 160?C
- Thermal Shock -40 ~+150?C
- Metal Composite Core with Magnetic Shielding
- Non-Hard Saturation
Applications
Automotive, Industrial, Power Management, Consumer Electronics, Portable Devices
Product details
| Inductance |
33?H |
| RMS Current (Irms) |
3.4A |
| Inductor Construction |
- |
| Saturation Current (Isat) |
5.6A |
| Product Range |
ETQP Series |
| Power Inductor Case |
10.7mm x 10mm x 4mm |
| DC Resistance Max |
0.09306ohm |
| Inductance Tolerance |
? 20% |
Other details
| Brand |
PANASONIC |
| Part Number |
ETQP4M330KVC |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |
| Product Change Notice EN |
|

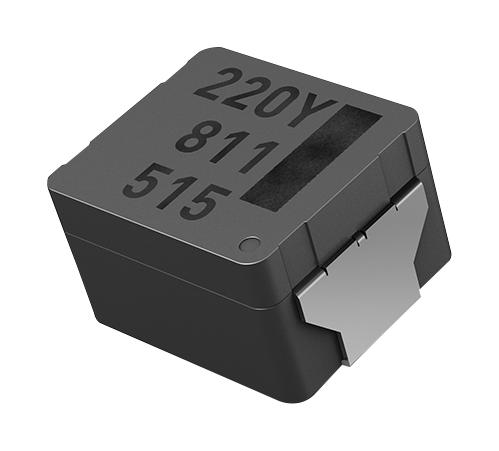

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
