Description
Panasonic ET-SBFMP10 Overview

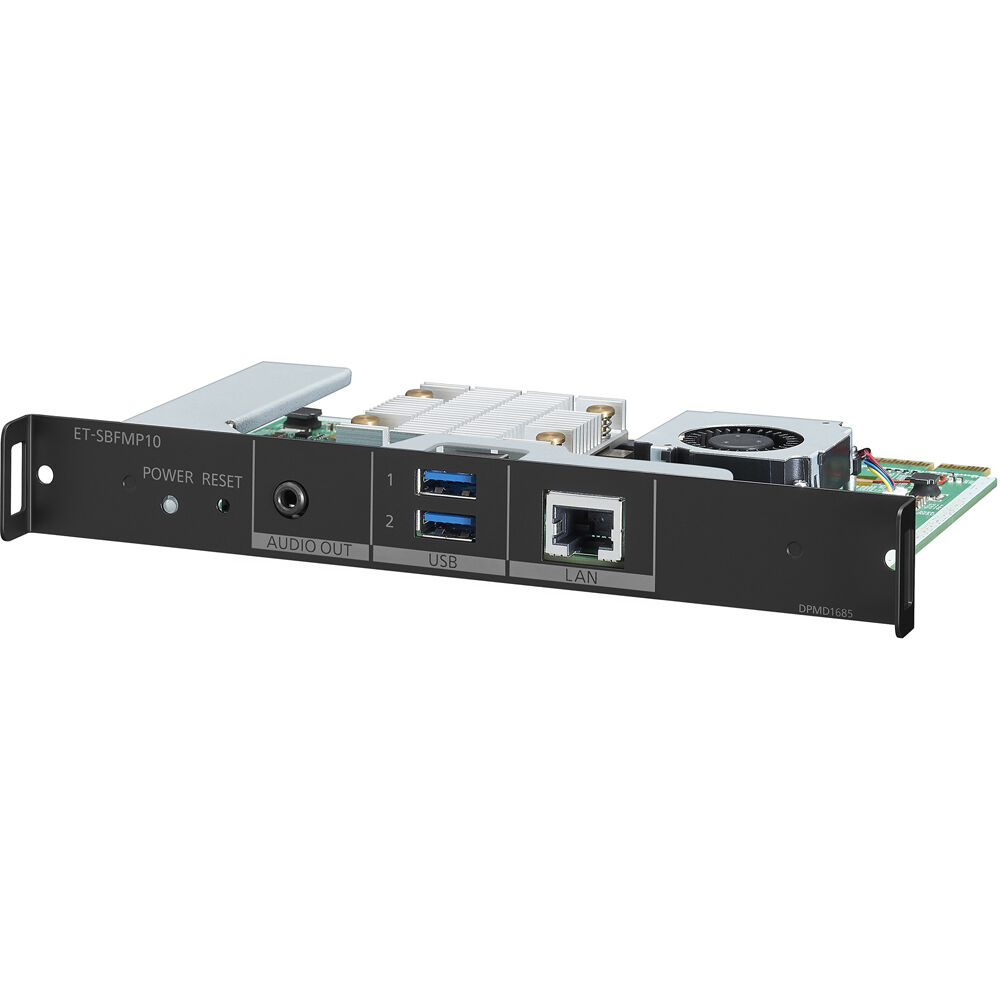

Simplify complex multi-projector setups for projection mapping and more with the ET-SBFMP10 Function Board Media Processor from Panasonic. The ET-SBFMP10 installs to the projector's Intel SDM slot and features manual and automatic camera-based image warping and blending, along with media playback functions to streamline installation, adjustment, and operation workflows in a Panasonic projection ecosystem.
Reduces Cost and Complexity
The ET-SBFMP10 is a function board that slots into your Panasonic projector's Intel SDM standard-compatible SLOT to enable connection via LAN cable only. Since it is made by Panasonic for use with Panasonic projectors, they are designed to work together seamlessly. Therefore, if you need support, you only need to call one company.
Panasonic cannot guarantee compatibility of the ET-SBFMP10 with non-Panasonic projectors. Compatibility with future supported Panasonic models is anticipated.
Save Time, Enhance Quality with Camera-Based Adjustment
Working with NIKON cameras, the ET-SBFMP10 wins back your time by automating complex warping/blending processes with highly precise pixel-based adjustment. View the projection area from the camera�s perspective on a PC and click to designate an image display area; content splitting, geometric adjustment, and blending are performed automatically.
Compatible cameras (sold separately) comprise NIKON D5200, D5300, D5500, D5600, D7500, and Z50.
Supports High-Quality Video Content
ET-SBFMP10 outputs a 3840 x 2160p signal. It supports H.264 and H.265 formats. Play content directly from the processor with media storage up to 512GB or over NDI-compatible LAN.
Additional Features
- RJ-45 10 Base-T/100 Base-TX, 1000 Base-T, NDI compatible network input
- Manual color-matching adjustment (automatic is TBA)
- Compatible with Multi Monitoring & Control Software
- Playback scheduling function
UPC: 885170419162
Items Included
- Panasonic ET-SBFMP10 Function Board Media Processor for Intel SDM Slot
- Installation Screws
- Limited 1-Year Manufacturer Warranty
Additional Resources
Panasonic ET-SBFMP10 Specs
General
| Compatibility |
Panasonic PT-RQ25K Series / PT-RZ14K / PT-REQ15 Series / PT-REZ15 Series / PT-RQ7 Series
|
Inputs/Outputs
| Video I/O |
1x RJ45 (NDI) Input
|
| Audio I/O |
1x 1/8" / 3.5 mm Line Output
|
| Internal Storage |
4 TB
|
Wireless
| Mobile App Compatible |
No
|
Power
| Power Source |
Proprietary Interface (Built-In)
|
Physical
| Color |
Black
|
| Certifications |
CE, UKCA
|
| Operating Conditions |
32 to 104°F / 0 to 40°C at 10 to 80% Humidity
|
| Storage Conditions |
32 to 113°F / 0 to 45°C at 10 to 80% Humidity
|
| Dimensions |
7.7 x 4.9 x 1" / 195 x 123.2 x 25 mm
|
| Weight |
0.51 lb / 0.23 kg
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
