| ₹ 143.29 includes GST and import duties. | |
| B2B customers can avail ₹ 21.85 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

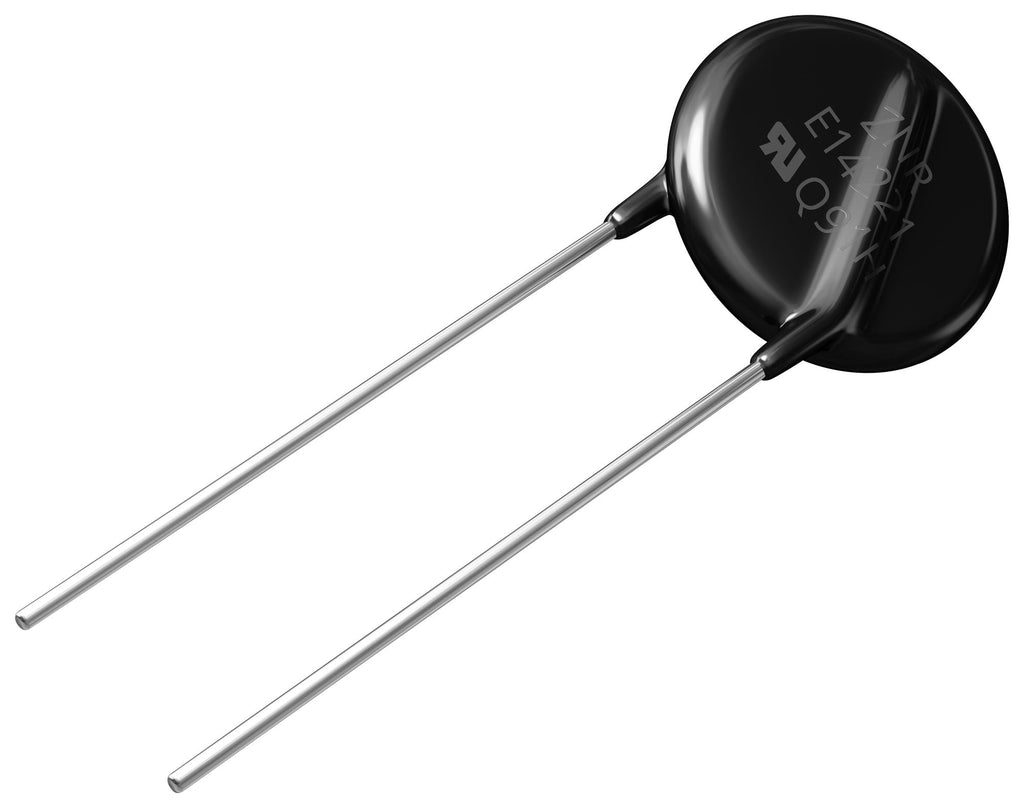

This is a ERZE14A751S1 TVS Varistor , 460 V, 615 V, E14-S1 Series, 1.24 kV, Disc 17.5mm product from PANASONIC with the model number ERZE14A751S1
Product details
| Voltage Rating VAC | 460V |
| Voltage Rating V DC | 615V |
| Product Range | E14-S1 Series |
| Clamping Voltage Vc Max | 1.24kV |
| Varistor Case Style | Disc 17.5mm |
| Varistor Type | Zinc Oxide Non-Linear Resistor (ZNR) |
| Peak Surge Current @ 8/20µs | 7.5kA |
| Operating Temperature Min | -40°C |
| Operating Temperature Max | 125°C |
| Peak Energy (10/1000uS) | 420J |
| Automotive Qualification Standard | - |
Other details
| Brand | PANASONIC |
| Part Number | ERZE14A751S1 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 140.42 |
| 3-5 | ₹ 138.99 |
| 5-10 | ₹ 136.13 |
| 10+ | ₹ 133.26 |
Bulk discount will be automatically applied during checkout based on quantity.
