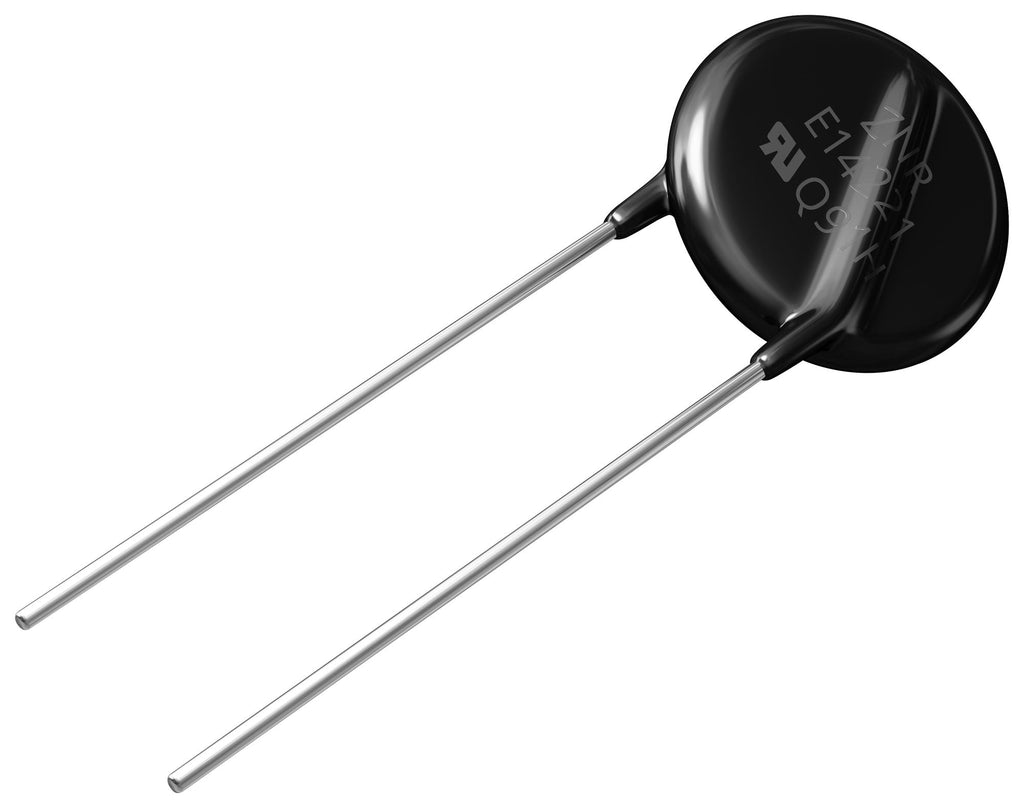

This is a ERZE14A471S1 TVS Varistor , 300 V, 385 V, E14-S1 Series, 775 V, Disc 16.5mm, Zinc Oxide Non-Linear Resistor (ZNR) product from PANASONIC with the model number ERZE14A471S1
Product details
| Voltage Rating VAC |
300V |
| Voltage Rating V DC |
385V |
| Product Range |
E14-S1 Series |
| Clamping Voltage Vc Max |
775V |
| Varistor Case Style |
Disc 16.5mm |
| Varistor Type |
Zinc Oxide Non-Linear Resistor (ZNR) |
| Peak Surge Current @ 8/20µs |
10kA |
| Operating Temperature Min |
-40°C |
| Operating Temperature Max |
125°C |
| Peak Energy (10/1000uS) |
350J |
| Automotive Qualification Standard |
- |
Other details
| Brand |
PANASONIC |
| Part Number |
ERZE14A471S1 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
