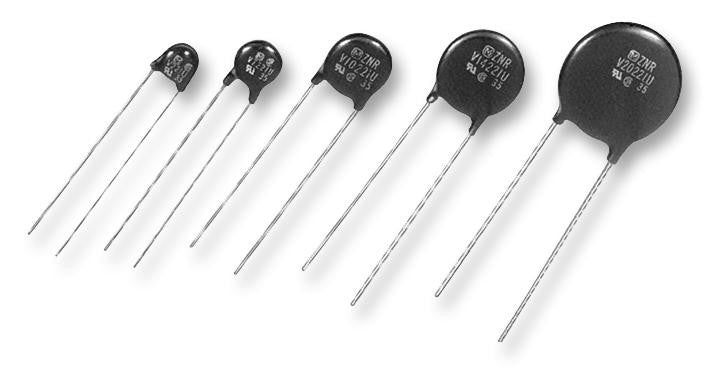

This is a TVS Varistor, 175 V, 225 V, ZNR V Series, 455 V, Disc 10mm, High Surge Current product from PANASONIC ELECTRONIC COMPONENTS with the model number ERZV10D271
Product details
| Voltage Rating V AC |
175V |
| Voltage Rating V DC |
225V |
| Product Range |
ZNR V Series |
| Clamping Voltage Vc Max |
455V |
| Varistor Case Style |
Disc 10mm |
| Varistor Type |
High Surge Current |
| Peak Surge Current @ 8/20µs |
3.5kA |
| Operating Temperature Min |
-40°C |
| Operating Temperature Max |
85°C |
| Peak Energy (10/1000uS) |
49J |
| Automotive Qualification Standard |
- |
Other details
| Brand |
PANASONIC ELECTRONIC COMPONENTS |
| Part Number |
ERZV10D271 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
