Description

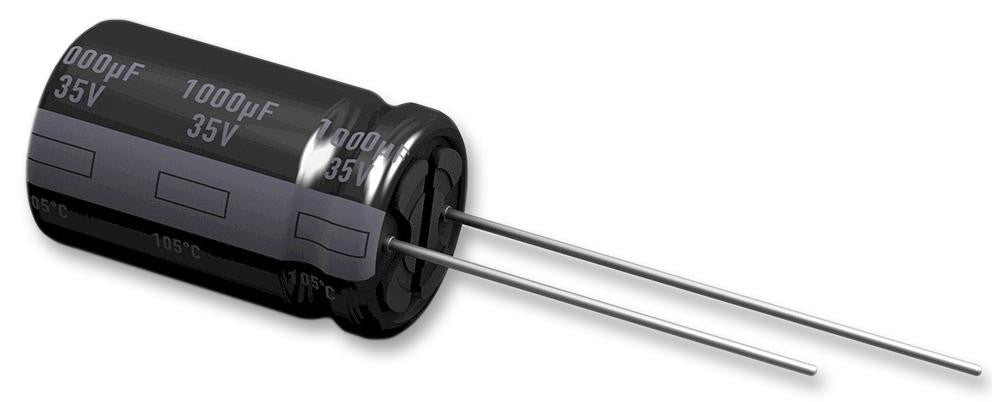

The Panasonic FR series capacitors are type A, radial leaded polarized aluminium electrolytic capacitors. The capacitance value ranges from 4.7µF to 8200µF. These capacitors are perfect solution for applications, which require ultra low ESR, very high ripple current and very long life in small mounting form. In comparison to Panasonic FM series, the FR series capacitors can achieve a endurance upgrade of up to 100% and a capacitance increase of up to 30% by improving material technology.
- Rated voltage range of 6.3VDC to 100VDC
- Tolerance of ±20%
- Endurance of 5000h to 10000h at 105°C
- Operating temperature range -40°C to 105°C
- High reliability
Applications
Industrial, Power Management, Consumer Electronics, Portable Devices
Product details
| Operating Temperature Min | -40°C |
| Capacitor Terminals | Radial Leaded |
| Operating Temperature Max | 105°C |
| Lifetime @ Temperature | 8000 hours @ 105°C |
| Voltage Rating | 63V |
| Product Range | FR Series |
| Diameter | 10mm |
| Automotive Qualification Standard | - |
| ESR | 0.045ohm |
| Capacitance | 120µF |
| Lead Spacing | 5mm |
| Capacitance Tolerance | ± 20% |
| Packaging | Each |
| Height | 16mm |
Other details
| Brand | PANASONIC ELECTRONIC COMPONENTS |
| Part Number | EEUFR1J121B |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 103.24 |
| 3-5 | ₹ 102.19 |
| 5-10 | ₹ 100.08 |
| 10+ | ₹ 97.98 |
Bulk discount will be automatically applied during checkout based on quantity.
